Laser 7323 User Manual

Instructions
Compomnent B – Crankshaft Alignment Tool
Used to align the crankshaft in its timed position.
With the flywheel locking tool (A) removed, refit the crankshaft pulley bolt and rotate
the engine in a clockwise direction until TDC on No.1 cylinder.

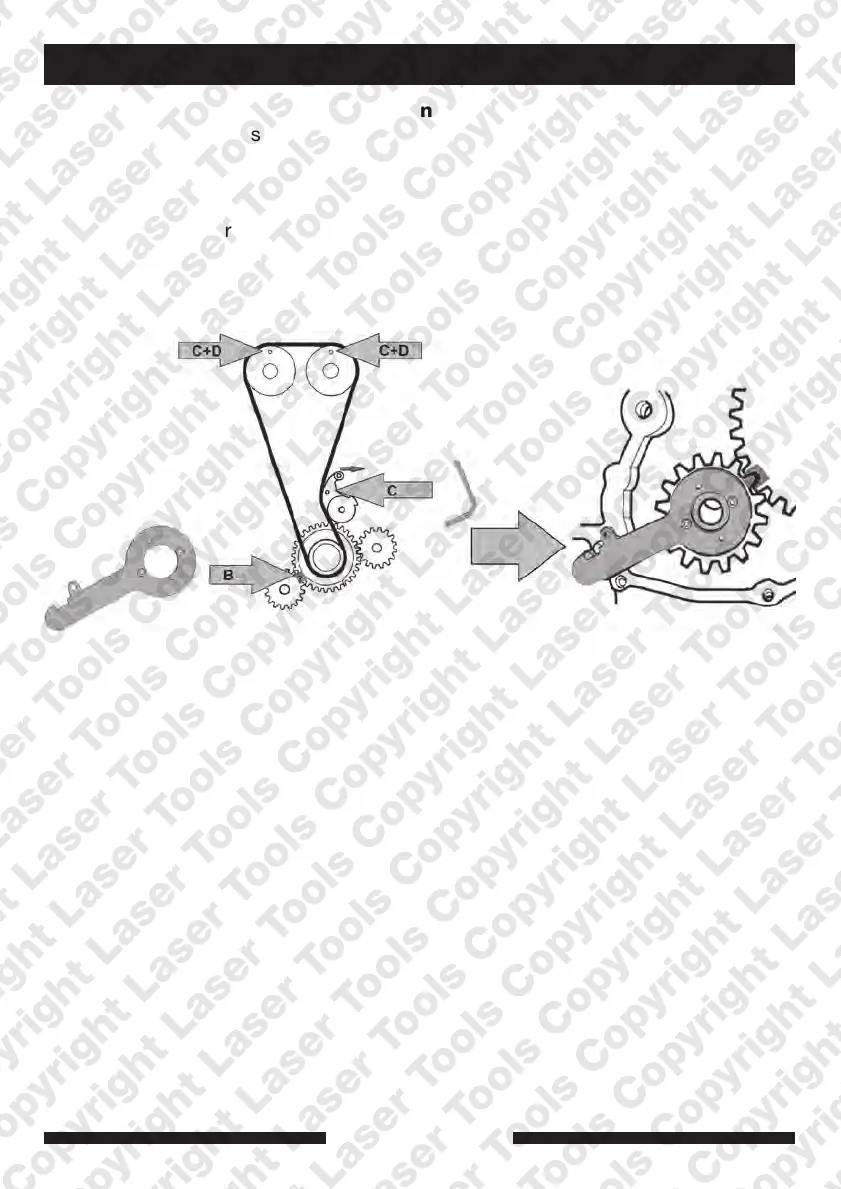

With the camshafts, crankshaft and intermediate shaft timing marks all aligned as
shown remove the crankshaft bolt and install the crankshaft alignment tool (B) as
shown and secure it to the cylinder block.
ALIGN MARKS
6
