ENGLISH20
BeamControl-Master BCM
Note
Make sure in any case beforehand, that the horizontal vials (X and Y vials)
have been correctly calibrated.

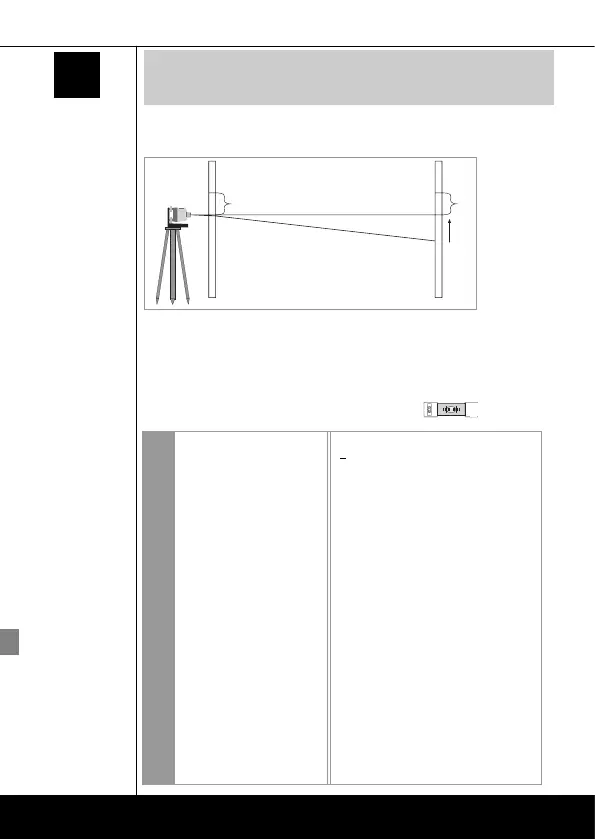

2. Mark points A1 and B1 on the targets.
3. Set the unit up vertically in the vicinity of target A (e.g.
set up a graduated bar).
A1
B1
A2
B2
a
a
4. The laser strikes the first target and marks point A2 at the same time.
5. Measure the distance between A1 and A2 (a).
6. Transfer the distance measured (a) to target B.
7. Put the laser with the levelling screw to the height of B2.
8. Calibrate the vial with the calibrating screw (use s SW 2.5 Allen
wrench).
Laser
Output power
Wavelength
Accuracy
Sensor
Beam splitter
Functions
Operating mode
Settings
Reference beam
Laser mode
Horizontal plano
Speed of rotation
Power supply
Battery service life
Continuous operation
Other technical data
Working / Storage temperature
class 2 (EN 60825-1)
<
1 mW horizontal < 0,33 mW vertical
635 nm
± 0,02 % (± 2 mm/10 m)
ground glass level
20"
spot mode, rotation mode,
hand receiver mode, scan mode
change of position, speed, sound volume,
angular range, position
vertical
inclination can be adjusted manually
0, 50, 100, 200 rpm,
500 rpm for receiver
ca. 40 h (4 x 1.5 V of type AA, alkaline)
connection socket for external supply
0° C to 50° C / -10° C to 70° C
5. Technical data
Calibration
Z-axis
TECHNICAL
DATA
Subject to
technical
alterations
