12
+
+
–
–
6
5
4
3
2
1
7
1

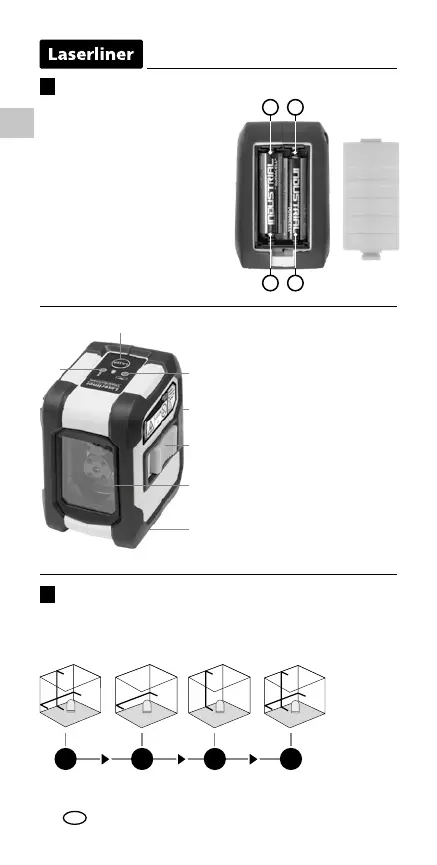

Inserting batteries
Open the battery compartment
and insert batteries
(2 x type AA) according
to the symbols. Be sure
to pay attention to polarity.
LASER LASER LASER LASER
2
Horizontal and vertical levelling
Release the transport restraint, move the ON/OFF switch
(4) to the left. The laser cross will appear. The laser lines
can be switched individually with the selection button.
1 Laser line selection button /
Hand receiver mode
2
LED levelling
red: levelling off
green: levelling on
3 Battery compartment
(backside)
4 ON / OFF switch,
transport retainer
5 Laser output windows
6 1/4" tripod threads
(bottom)
7 LED hand receiver mode
EN
