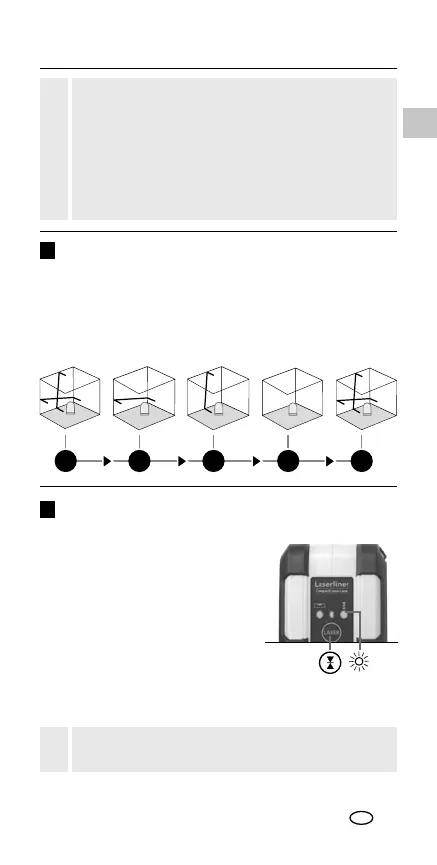

CompactCross-Laser
13
LASER LASER LASER LASER LASER
The transport restraint must be released for
horizontal and vertical levelling. The LED (2) shows
a permanent green light. The laser lines flash and
the LED (2) lights red as soon as the device is
outside the automatic levelling range of 4°. Position
the device such that it is within the levelling range.
The LED (2) switches back to green and the laser
lines stop flashing (steady light).
!
4
Hand receiver mode
Optional: Working with the laser receiver RX
Use an RX laser receiver (optional)
to carry out levelling at great
distances or when the laser lines
are no longer visible. To work
with a laser receiver, switch the
line laser to hand-held receiver mode
by keeping button 1 (handheld
receiver mode on / off) pressed.
The laser lines will now pulsate
with high frequency, making the laser lines darker.
The laser receiver can detect these pulsating laser lines.
3
Slope mode
Do not release transport safety, push ON/OFF switch (4) to
the right. Select and switch on the laser with the selection
button. Sloping planes can now be measured. This mode
cannot be used to perform horizontal or vertical levelling as
the laser lines are no longer aligned automatically. The LED
lights constantly red.
Observe the laser receiver‘s operating instructions
for line lasers.
!
EN
