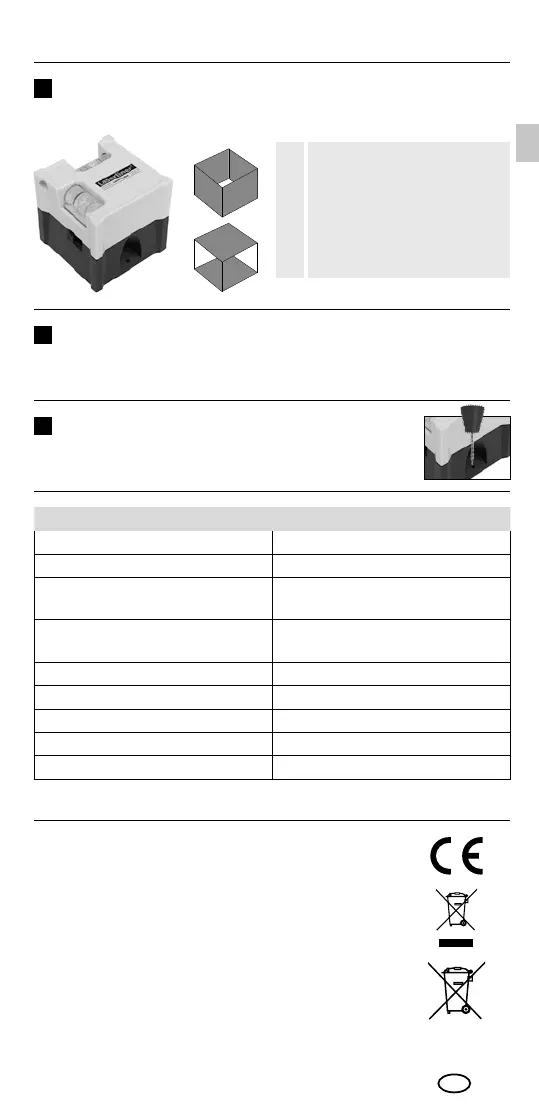

LaserCube

The vials are only adjusted

for the four A bearing

surfaces (see image). When

placed on the B surfaces,

the device cannot be used

as a spirit level.

1. Place device on the wall.

2. Push the special pins through the appropriate holes.

Mounting on the wall

On-floor applications

Place the device on the oor and switch on.

Wall applications

Mount the device on the wall for horizontal and vertical levelling.

Then align the device with the vials.

Technical data

Accuracy ± 1 mm / m

Laser wavelength 635 nm

Laser class /

line laser output power

2 / < 1 mW

Power supply

3 x alkaline batteries

(LR 44 / AG13 / V13GA)

Operating time 4 hours (alkaline batteries)

Operating temperature

0°C ... +40 °C

Storage temperature -10°C ... +70 °C

Dimensions (W x H x D) 38 x 38 x 38 mm

Weight (incl. batteries)

36 g

Subject to technical changes without notice. 09.15

EU directives and disposal

This device complies with all necessary standards

for the free movement of goods within the EU.

This product is an electric device and must be

collected separately for disposal according to

the European Directive on waste electrical and

electronic equipment.

Further safety and supplementary notices at:
