06
1
6LR61 9V
2
1
2
3
4
5
1
2
3
4
5

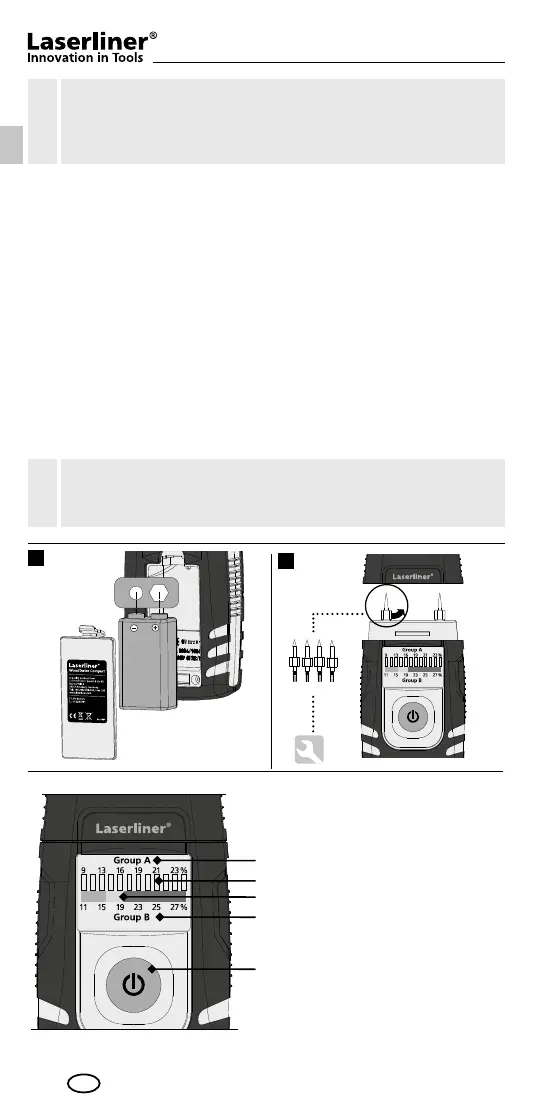

GB
Wood group A,
Moisture in %
12 position wet/dry
LED indicator
LED 0…4 (green) = dry
LED 5…7 (yellow) = moist
LED 8…12 (red) = wet
LED 11…12 (red):
Low battery charge
wet/dry indicator for
wood group B
Wood group B,
Moisture in %
On/Off switch
The sharply pointed electrodes present an injury hazard.
Always put the safety cap on the unit when it is not in
use or being transported.
!
Function/application: This material moisture device detects and
evaluates the material moisture content of wood by way of electric
resistance measurement. The displayed value is material moisture in
% with respect to dry mass.
Example: 100% material moisture for 1kg of wet wood
= 500g water.
Measurement procedure notice:
Be sure neither supply lines (electric lines, water pipes, etc) nor a
metal subsurface is present at the location to be measured. Insert the
electrodes as far into the material as possible but never use excessive
or sudden impact force as this could damage the unit.
Always pull the unit out of the material with left/right twisting
motion. Perform several comparative measurements at different
locations to minimise measurement error.
Read the operating instructions and the enclosed brochure
„Guarantee and additional notices“ completely. Follow the
instructions they contain. Safely keep these documents for
future reference.
!
