Laski F-360 SW - Engine Mounting and Belt Adjustment

33
-
-

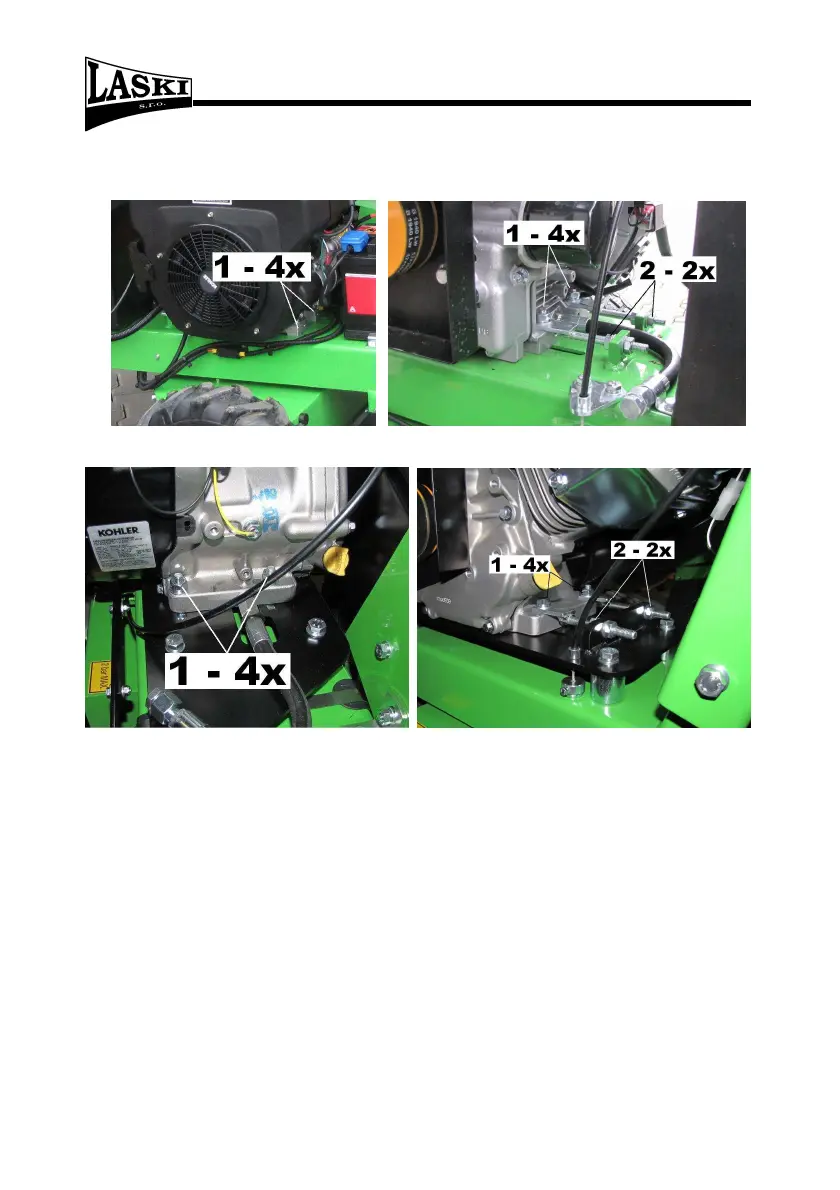

- Attachment of the engine to the frame, F 460
Attachment of the engine to the frame, F 360
- Loosen four fixing bolts on the engine (1 - 4x) by 0,5 – 1 turn to let the engine slide on
the frame.
- Loosen the locking nuts on the stretching bolts (2 - 2x) and move the engine in its slot
holes as necessary. Go on displacing the engine to set up optimal belt tension/slack “p”
at finger pressure “F”.
- Having reached the recommended belt slack value and proper pulley alignment,
retighten the fixing bolts on the engine (1 - 4x) and the locking nuts (2 - 2x).
