Lasko 3150G - Assembly; Step 1: Tilt Fan Head Back; Step 2: Align Plastic Rear Grill; Step 3: Secure Rear Grill

Rev. C 8/05
2
2084537
Rev. C 8/05
7
2084537

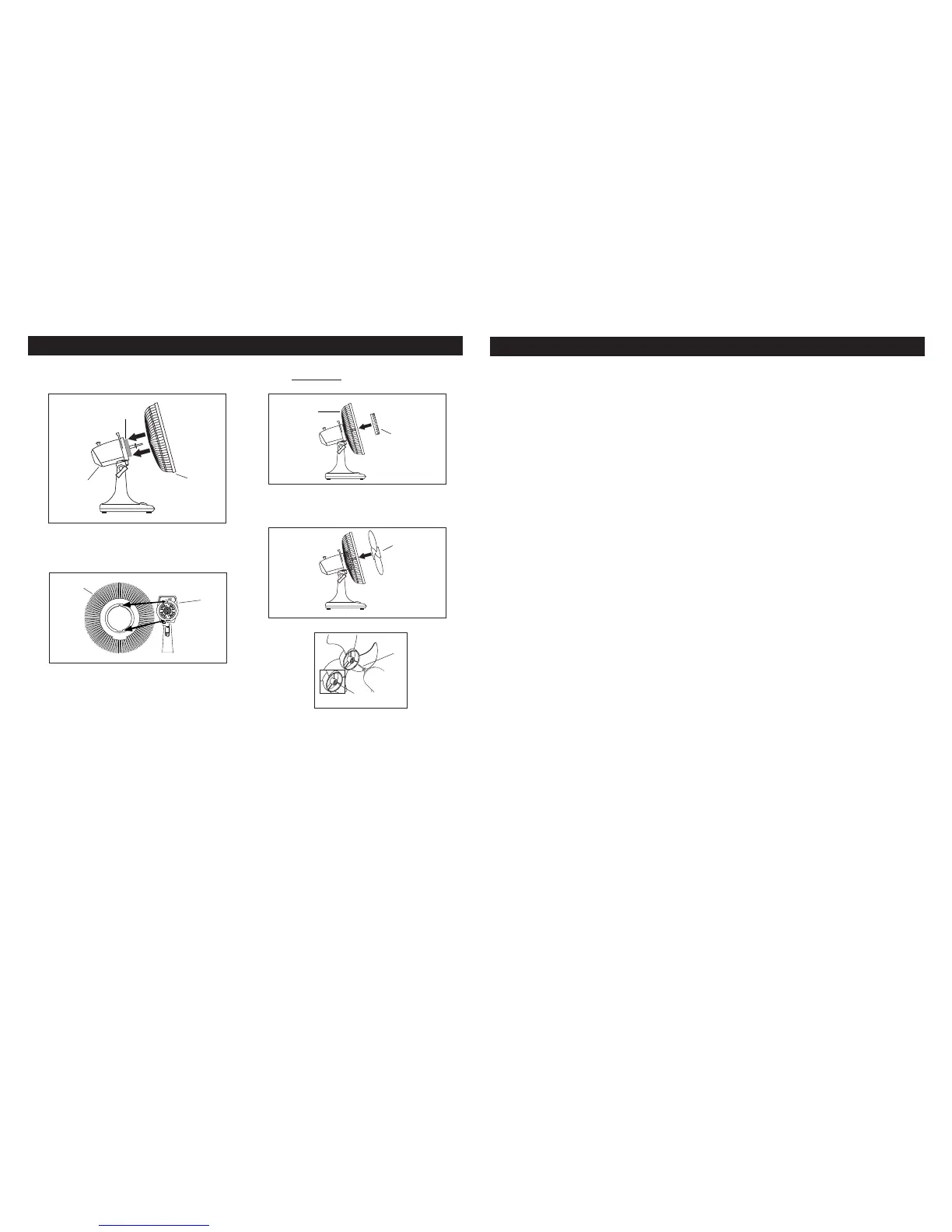

1. Tilt Fan Head back. Place Plastic Rear Grill on Motor .
(Figure 1)
2. Align tab of Plastic Rear Grill with groove on top of
front Motor cover. (Figure 2)
3. Fully seat Plastic Rear Grill and secure with Plastic Nut
turning CLOCKWISE. (Figure 3)
Figure 4A
Pin
Groove
4. Slide Blade onto motor shaft. (Figure 4) (Align Groove on
blade hub with Pin on motor shaft. Figure 4A )
Figure 4
Blade
Plastic Rear
Grill
Motor
Figure 2
Figure 1
Motor
Plastic Rear
Grill
Fan Head
Figure 3
Plastic Nut
Plastic Rear
Grill
ASSEMBLY
NOTES
