latch M Series - Door Preparation and Mortise Cartridge

1
1.1

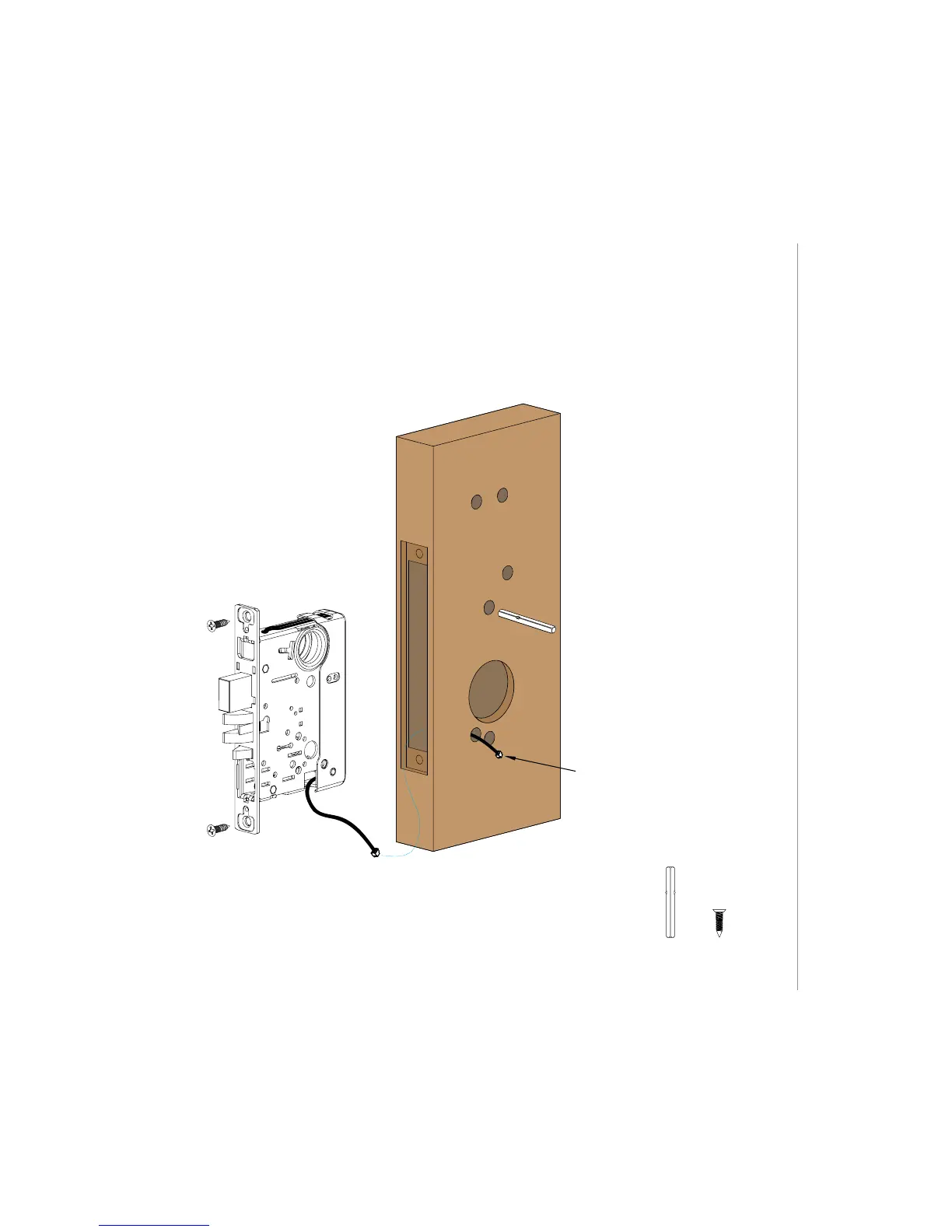

Prepare the door according to the template provided.
Install the mortise cartridge as shown and secure with
two screws. Feed the cable through as shown.
Avoid pinching or pulling on the cable.
CABLE ROUTING
Shown for left-handed door.
For right-handed doors,
the mortise cable is fed
through the hole furthest
from the door edge.
X 2
Place the thumb-turn spindle to
help balance the inner mounting
plate while assembling the
handle in the next step.
X 1
