ECP5 PCI Express Board User’s Guide

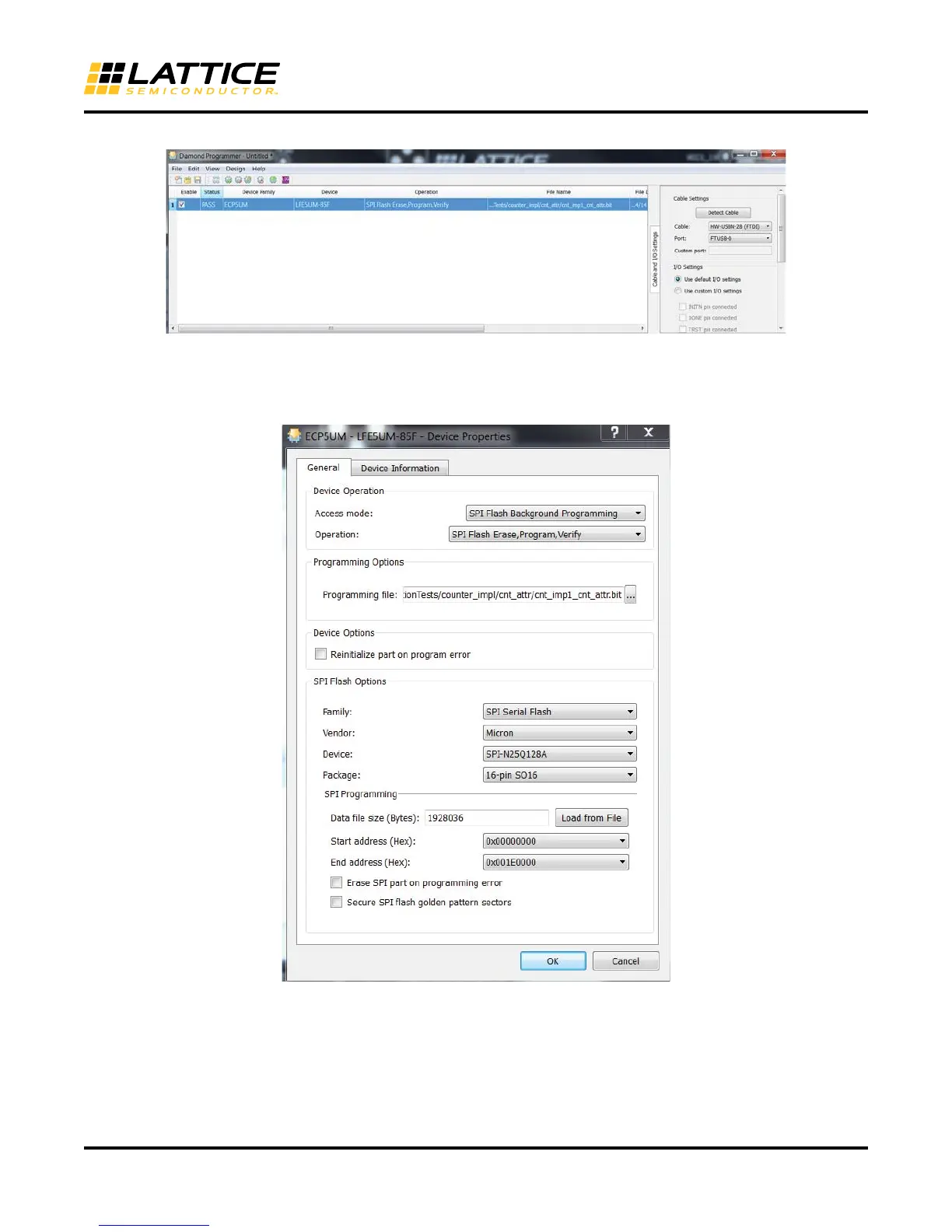

Figure 6. Device Information Dialog Screen
4. Under the SPI Flash Options, select Family to SPI Serial Flash, Vendor to Micron, Device to SPI-N25Q128A,
Package to 16-lead SOIC.
Figure 7. Select Device Dialog Box
5. Click OK in the Device Properties dialog box. You will return to the main configuration screen.
6. Using SW6 set the ECP5 CFG pins to 010.
7. From the main programming window, select Go from the top toolbar. This begins the SPI Serial Flash program-
ming.
