© Systeme Lauer GmbHAEG120DR-driver
○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○
B

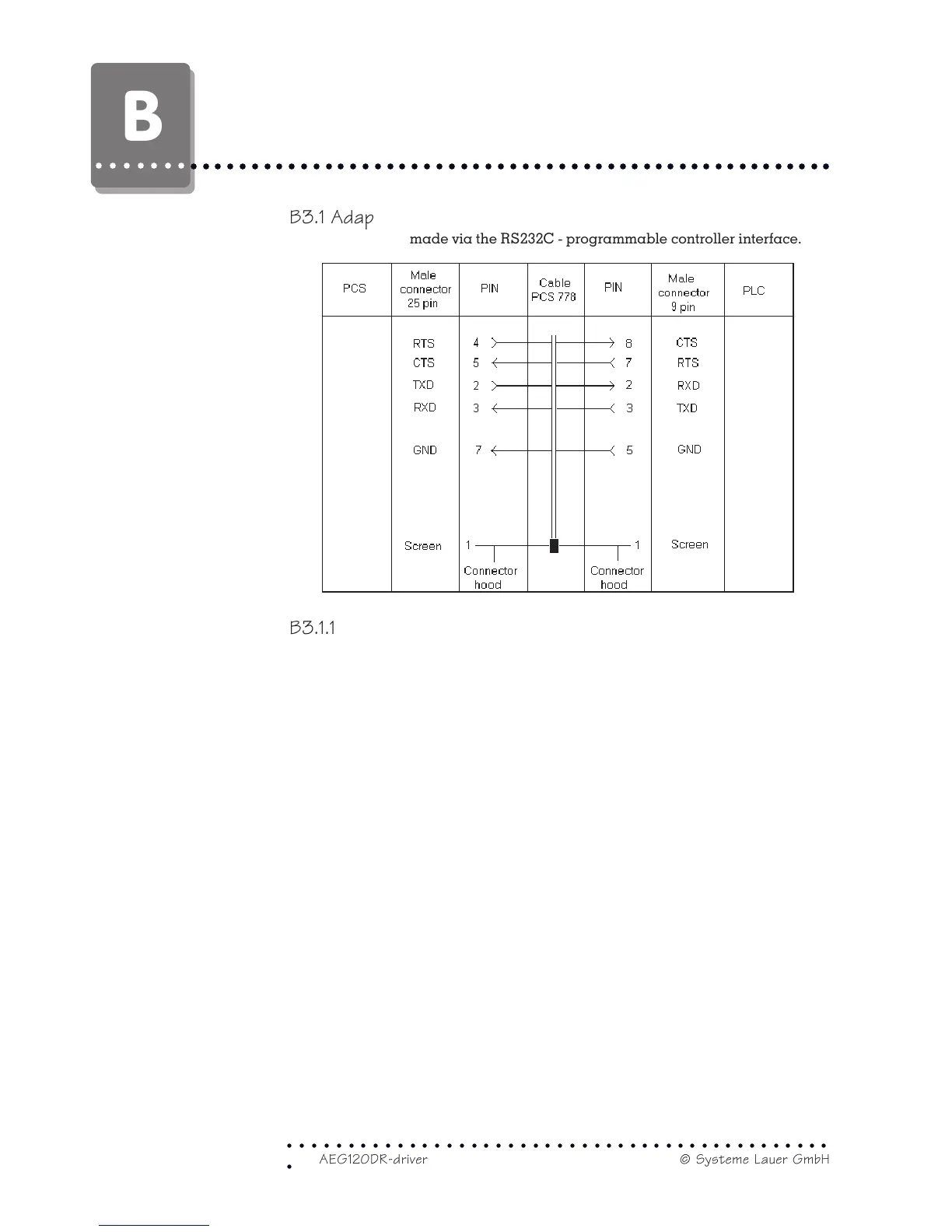

B3.1 Adapter cable PCS 778
The connection is made via the RS232C - programmable controller interface.
B3.1.1 Screening
The screen should be connected on both sides to a metal coated connector case.
The screen can also be connected to pin 1 when using non-metal coated connector
cases. However, this is not recommended for error-technical reasons. There, the
data lines should be covered as completely as possible by the screen! With
grounding at both sides is to be noted however that possibly (because of ground
potential shifts) a potential compensation wire is required having at least 10 times
the screen cross section (reason: compensation currents should not flow through
the cable screen if possible!). This applies particularly if PCS and programmable
controller are not connected to the same earthing point. This is for example valid
where the PCS and programmable controller are not housed in one switching
cabinet!
Communication
B3.Communication
