LAUNCH TLT632AF INSTALLATION
MANUAL
13
40
201013188
Cylinder cover
41
Y201013055D
Scissor cover
42
103260111
Axle cover 2020
43
103260106
Axle cover 2525
44
103260195
Axle cover 2025
45
103260108
Axle cover 3025
46
103260194
Axle cover 2825

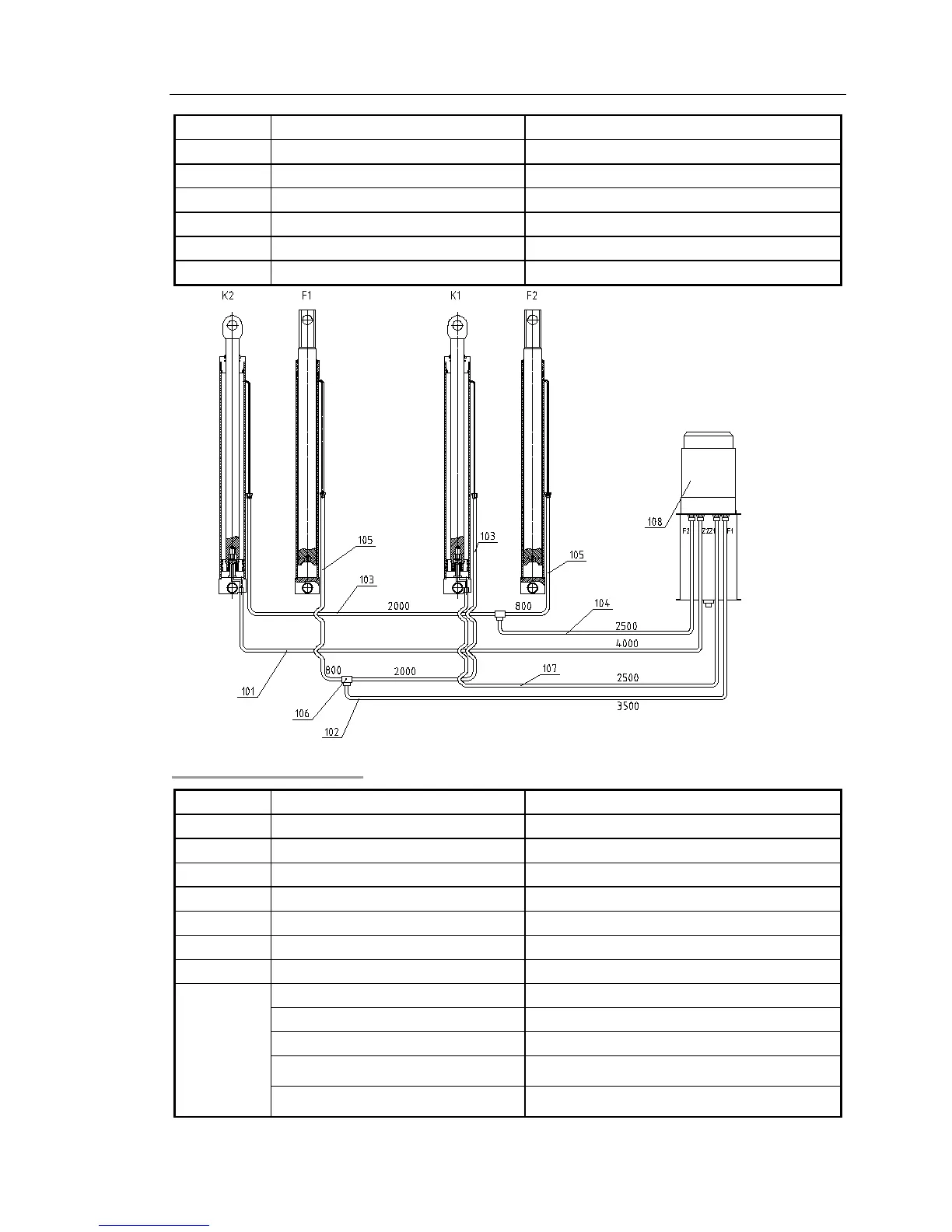

Hydraulic diagram
NO
ERP CODE
NAME
101 103260191
C type 4M end high pressure oil hose
102
103260190
C type bending head 3.5M high pressure oil hose
103
103260188
C type 2M high pressure oil hose
104
103260189
C type bending head 2.5M high pressure oil hose
105
103260193
C type 0.8M high pressure oil hose
106
103990055
T fitting
107
103260192 C type 2.5M end high pressure oil hose
108
103990185
Power unit assembly (380V/50Hz three phase)
103990188
Power unit assembly (220V/50Hz single phase)
103990187
Power unit assembly (200V/60Hz three phase)
103990186 Power unit assembly (110V/60Hz single phase)
103990190 Power unit assembly (220V/50Hz three phase)
