LAUNCH                                                                  TireChangerTWC-581
4

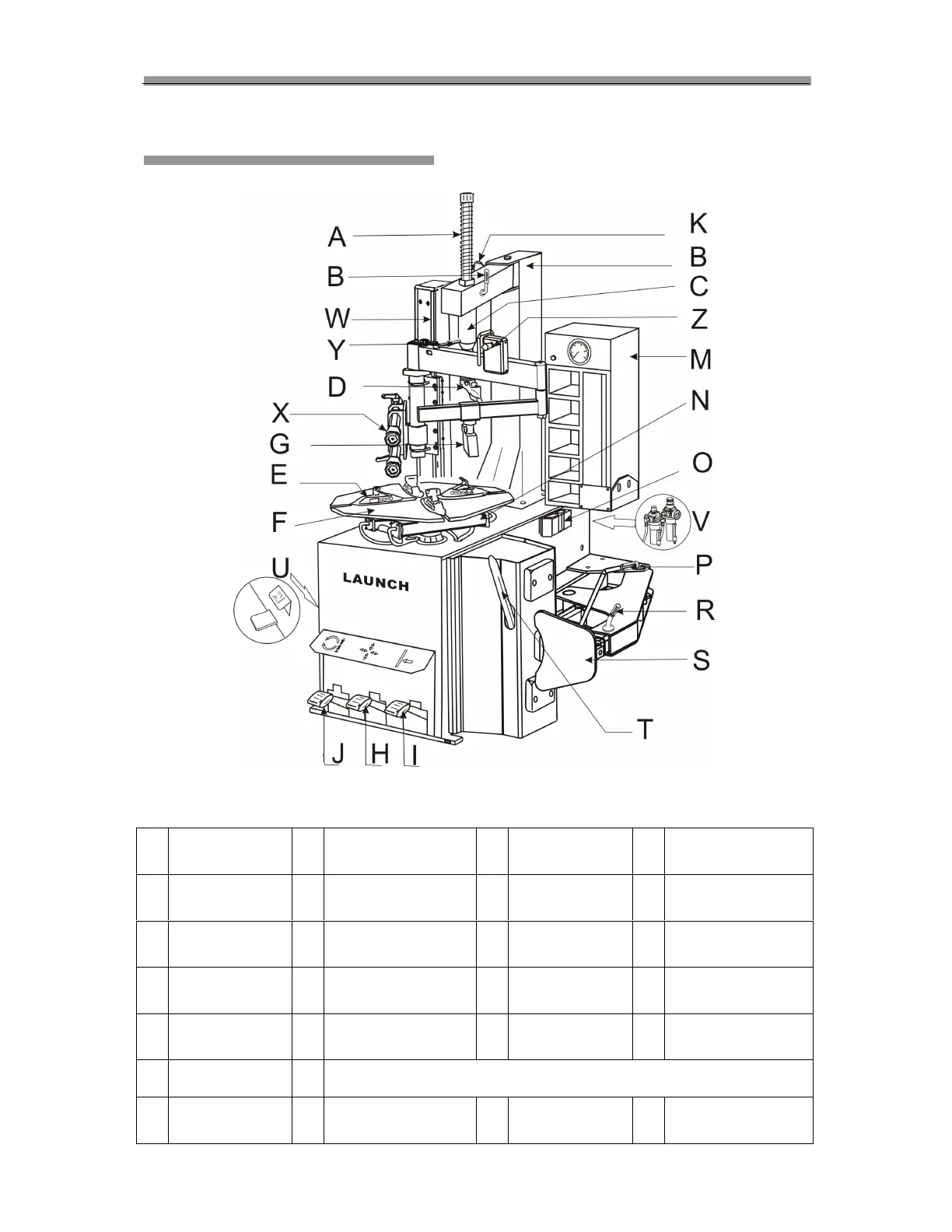

MainStructure


Fig.01-1
The main structure is shown in Fig. 01-1.
A
Return spring
B
Hexagonal bar locking
handle
C
Hexagonal bar
D
Mount/demount head
E
Clamp Jaw
F
Turntable
G
Press block
H
Clamp cylinder control
pedal
I
Bead breaker
control pedal
J
Turntable control pedal
K
Stop Screw Knob
L
Column
M
Tool box
N
Clamping cylinder
assembly
O
Lube bucket
P
Bead breaker handle
Q Bead breaker arm R Adjusting pin S Bead breaker
shovel
T Tire lever
U
Inflation pedal
V
Air Pressure Regulator, Gauge and Lubricator Assembly
W
Supplementary
arm assembly
X
Roller
Y
Spacer pin
Z
Control box
