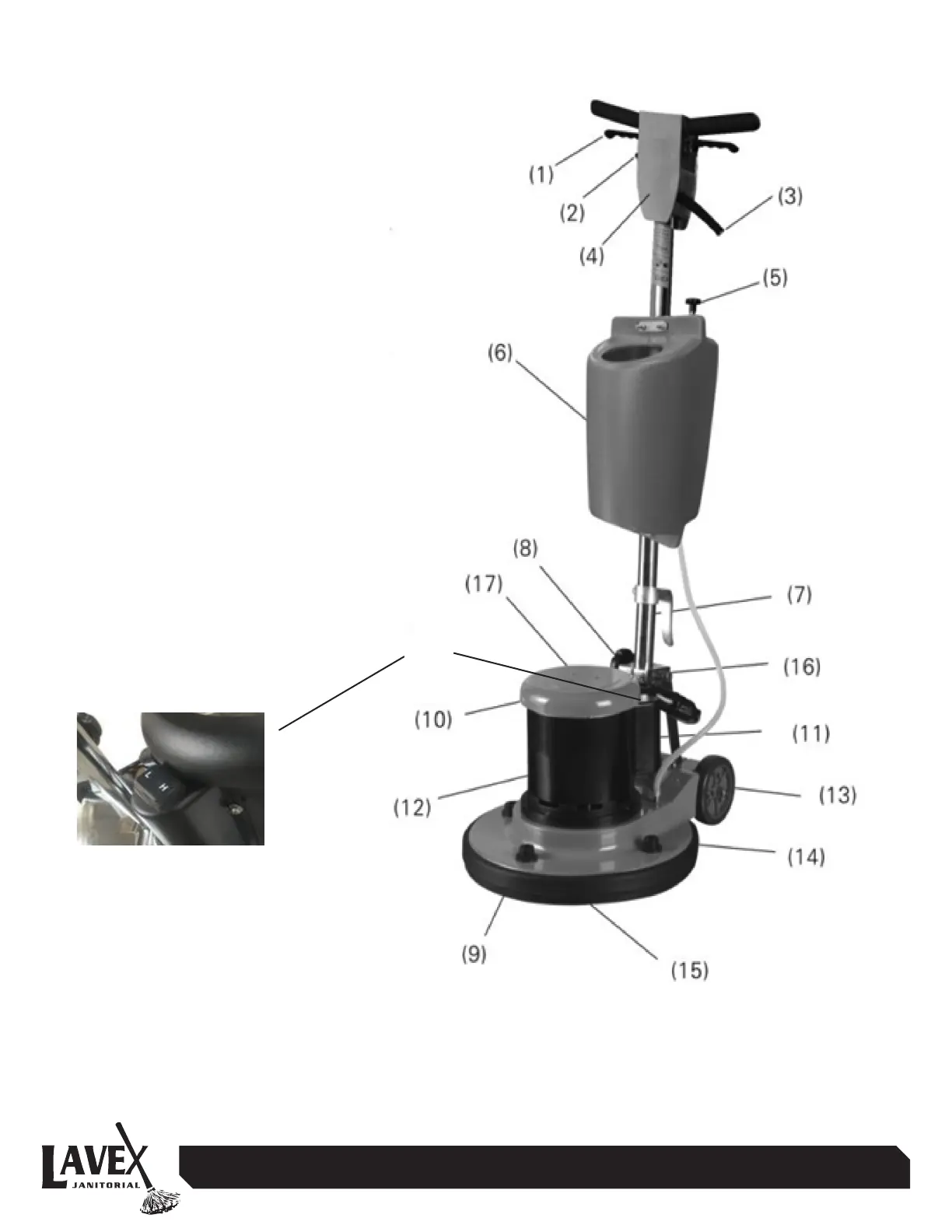

COMPONENT STRUCTURE
1. Switch Handle
2. Safety Switch
3. Power Cord
4. Aluminum Alloy Handle
5. Water Tank Drain Valve
6. Water Tank (Optional)
7. Cord Wrap
8. Handle Adjumentment Knob
9. Chassis Colloidal Particles
10. Motor Cover
11. Capacitor and Cover
12. Gearbox
13. Wheel Coupling
14. Motor Base
15. Rubber Collision Guard
16. Handle Adjustment Clamp
17. M5*35 Screw
18. Adjustment Button
For Two Speed
