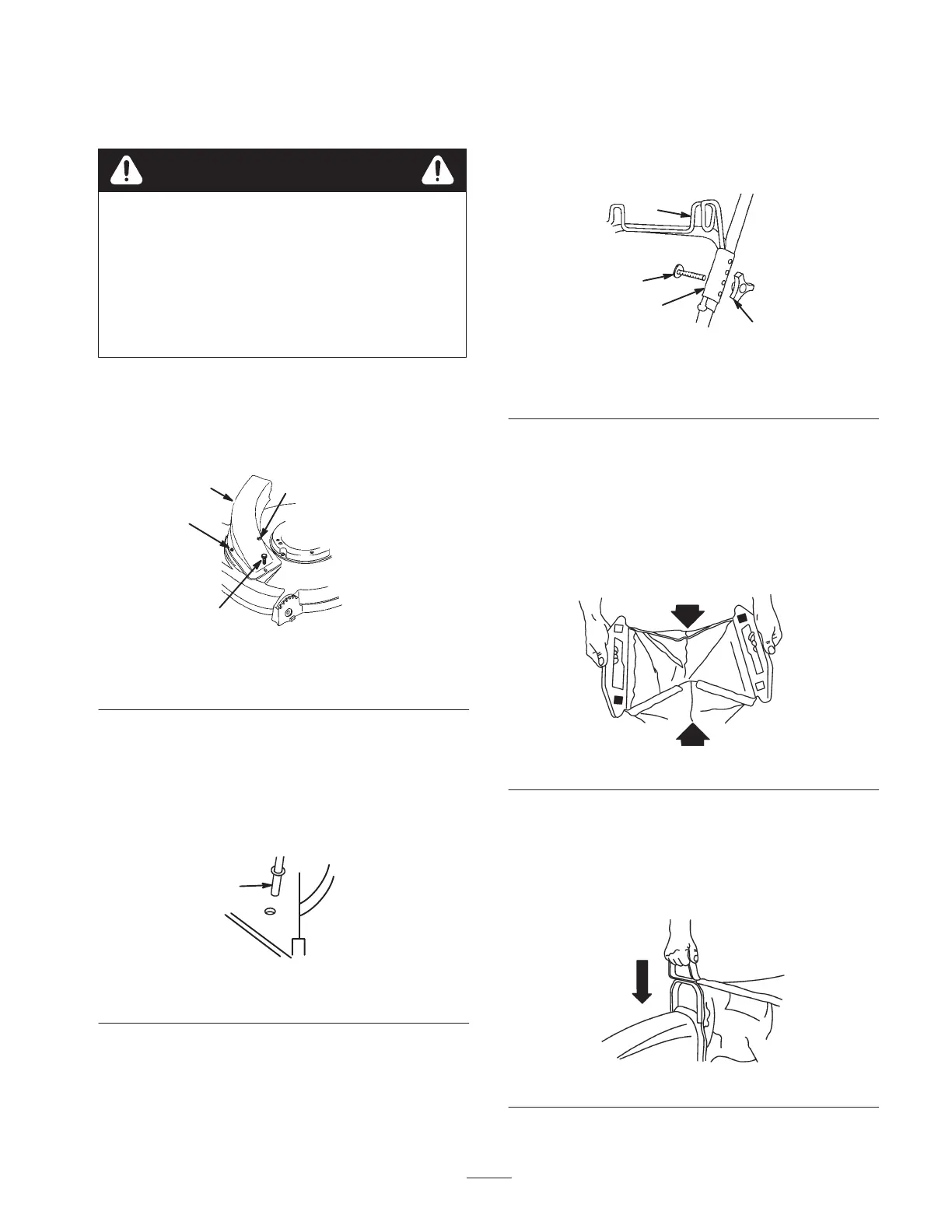

Installing the Rear Grass
Catcher
An uncovered discharge opening could allow the
lawn mower to throw objects in the operator’s or
bystander’s direction and result in serious injury.
Also, contact with the blade could occur.
Never operate the lawn mower unless you install a
cover plate, a mulch plate, or a grass chute and
catcher.
Warning
1. Stop the engine and wait for all moving parts to stop.
2. Disconnect wire from the spark plug (Fig. 8).
3. Place the chute assembly into the housing opening
(Fig. 35).
1753
1
2
3
2
Figure 35
1. Chute assembly
2. Shoulder bolt
3. Cap screw
Note: You do not need to loosen or remove the two
shoulder bolts on the housing that protrude through the
slotted holes in the chute assembly. The chute assembly
moves over the shoulder bolt heads (Fig. 10).
4. Insert the chute support rod through the hole at the
right rear of the deck (Fig. 36).
1145
1
Figure 36
1. Chute support rod
5. Slide the chute assembly clockwise to install it or
counterclockwise to remove it.
6. Secure the chute assembly to the housing with a cap
screw (Fig. 35).
7. Remove the knob and the bolt that secure the left side
of the upper and lower handle sections (Fig. 37).
8. Hold the hanger clamp on the outside of the handle
sections. Insert the handle bolt from the inside of the
handle through the hole in the hanger clamp.
1011
2
1
3
4
Figure 37
1. Knob
2. Bolt
3. Hanger clamp
4. Bag hanger
9. Position the bag hanger leg into the hanger clamp
groove and secure with the knob.
10. Repeat steps 7 through 9 to assemble the clamp and
the hanger to the right side of the handle.
11. Close the rear of the bag by folding the sides in and
pressing the interlocking rear handle halves together
(Fig. 38).
1012
Figure 38
12. Position the rear bag handles into the bag hanger on
the handle.
13. Grasp the bag assembly handle and slide it over the
flange of the grass chute (Fig. 39). Push downward on
the handle until it seats into position.
1010
Figure 39
