14

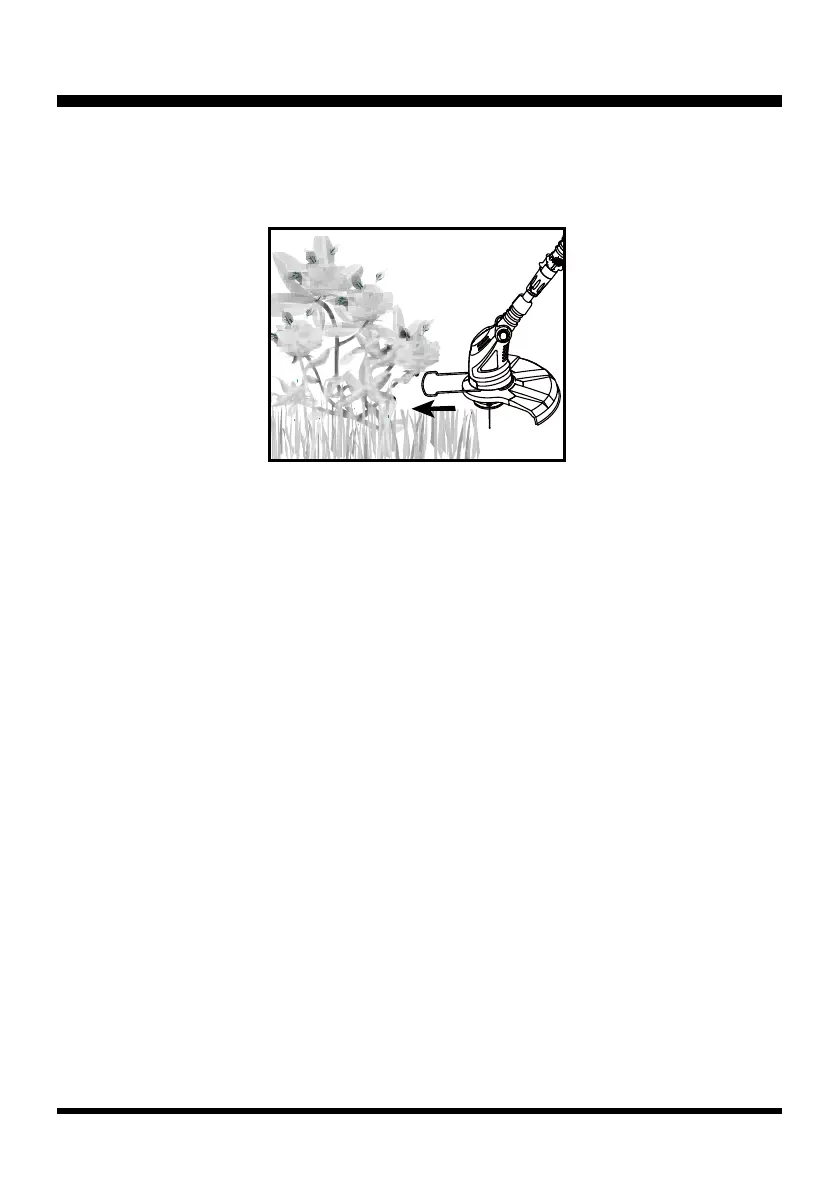

USING THE FLOWER GUARD (See Fig. 12)
If necessary the ower guard can be pulled from the debris guard as shown. Use the
ower guard, for example, to cut around plants (Fig. 12).
IF GRASS WRAPS AROUND THE TRIMMER HEAD
■ Stop the trimmer
■ Unplug the trimmer.
■ Remove the grass.
ADVANCING LINE
NOTE: This trimmer is equipped with an auto-feed head.
Do not bump the head to try to advance the line will damage trimmer and void warranty.
■ With the trimmer running, release the ON/OFF switch.
■ Wait two seconds, and press the ON/OFF switch.
NOTE: The auto-feed function works during the starting and stopping of trimmer. Line will extend
approximately 3/16 in. with each stop and start of ON/OFF switch WHILE NOT TRIMMING until the line
reaches the length of the grass deector blade. It may take up to 10 complete starting and stoppings to
advance the line.
Fig. 12
OPERATION
