LC audio Millennium - Speaker and Power Supply Wiring

The End Millennium
L C Audio Technology
15
+
-
Speaker Terminals
Use heavy Silver/Teflon
wiring to the PCB..

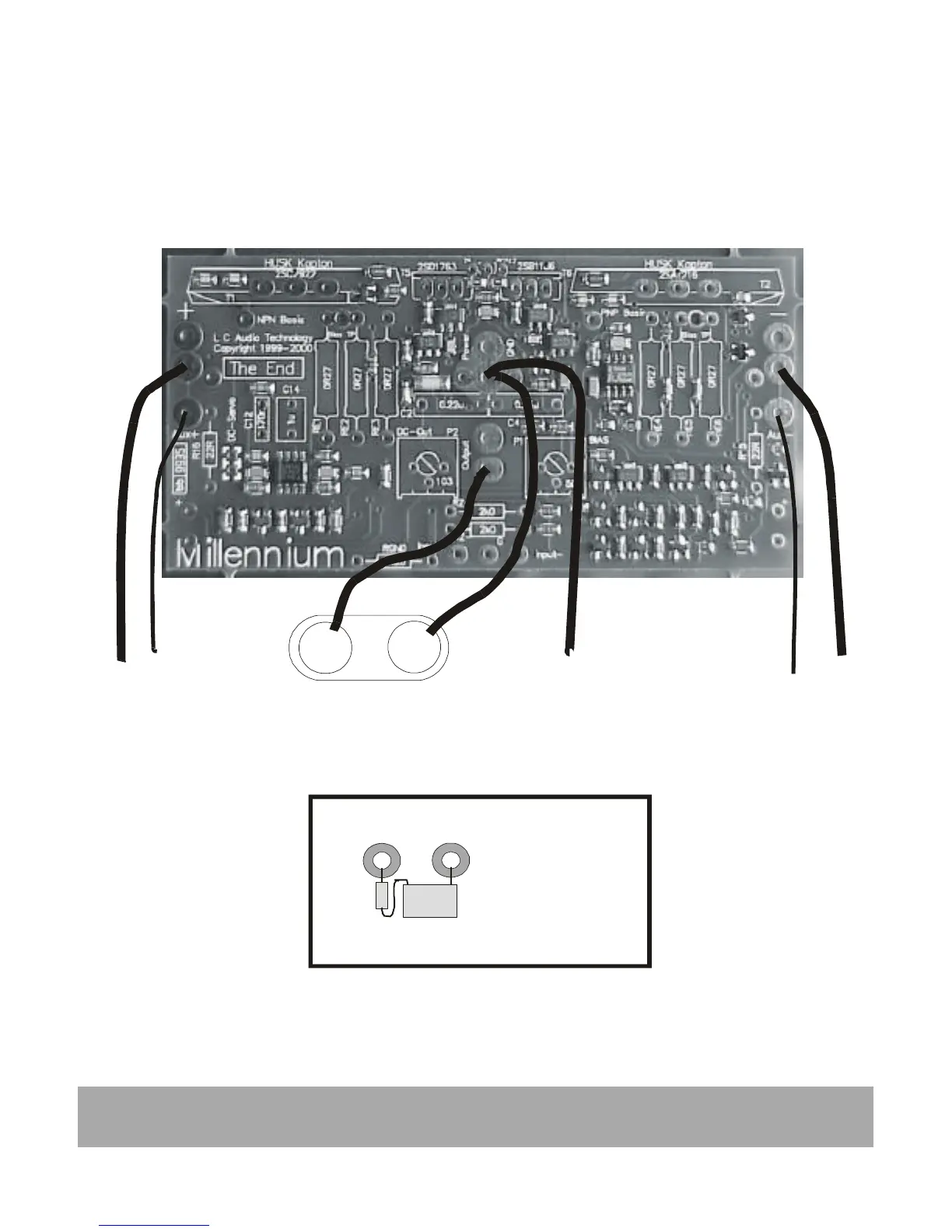

Connecting the speaker terminals, and Powersupply.
RED Heavy wire for + main supply
BLACK Heavy wire for - Main Supply
GRAY for Power GND
RED for AUX +
BLACK for AUX -
+Out
Gnd
Speaker Terminals.
2R15
100n
MKP
Zobel Network
We recommend mounting the ZOBEL network on every output. The required parts
are included in the kit.
