LC audio Millennium - External Board Connectivity

The End Millennium
L C Audio Technology
16
+
+
-
-
Separate Bass Outlet
Remember Zobel network.
Separate Mid/Treble Outlet
Remember Zobel network.
Note, the two 40R2, one 1k resistors and BDT63 should NOT be mounted!
RED
BLACK
GRAY
WHITE (thin)
WHITE (thin)

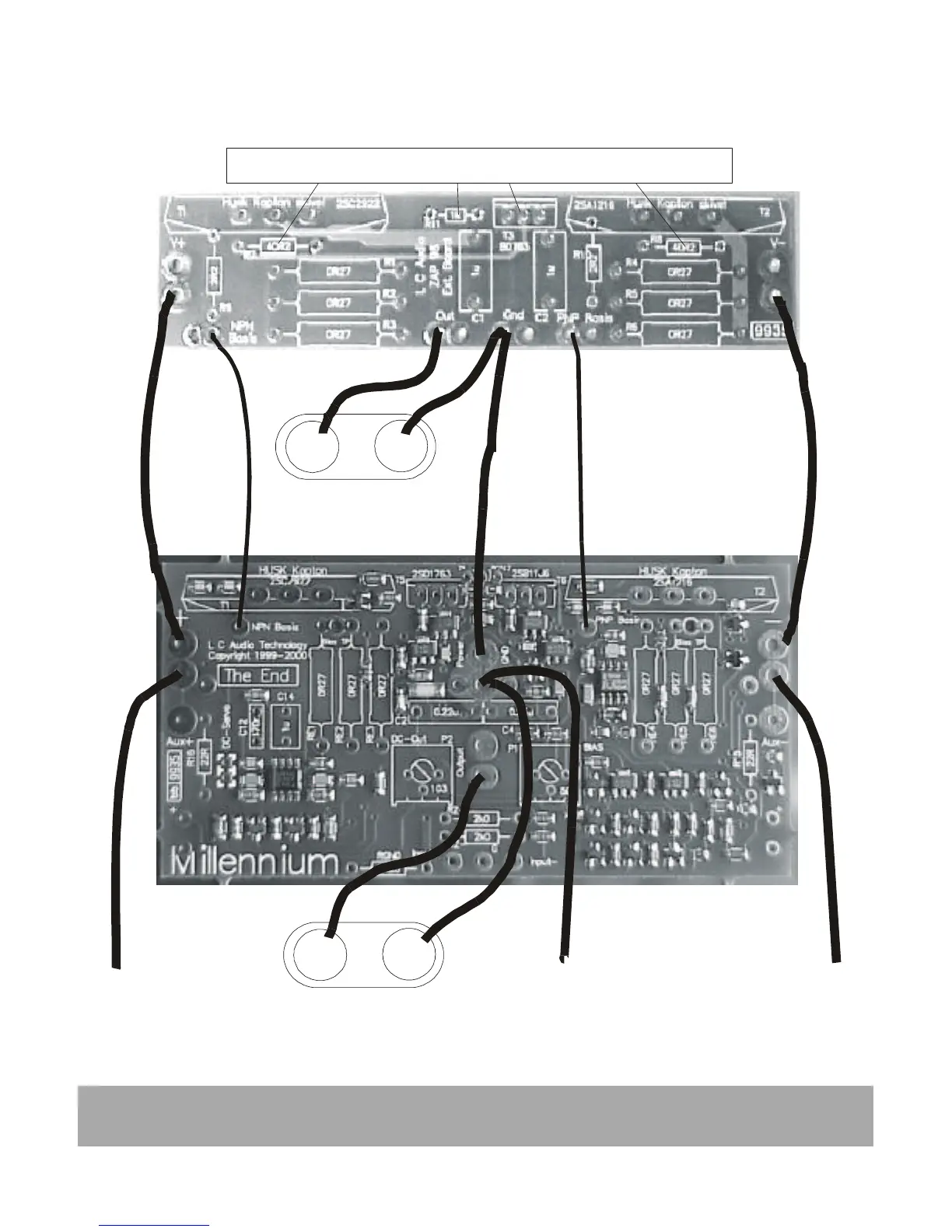

Connecting the Ext. Boards to the Main Board.
RED for power supply +
BLACK for power supply - -
GRAY Power GND
Copying and distribution of this material is allowed, but any commercial use is strictly prohibited without the written permission of L C Audio Technology.
Also connect the
AUX supplies, even
though not shown on
this drawing.
One or more ext. boards.
