Section 3: VESA mount installation
The monitor packaging includes screws which may be used when attaching the monitor to a VESA
75x75 mm type mount. No VESA mount or mounting accessory is included in delivery.

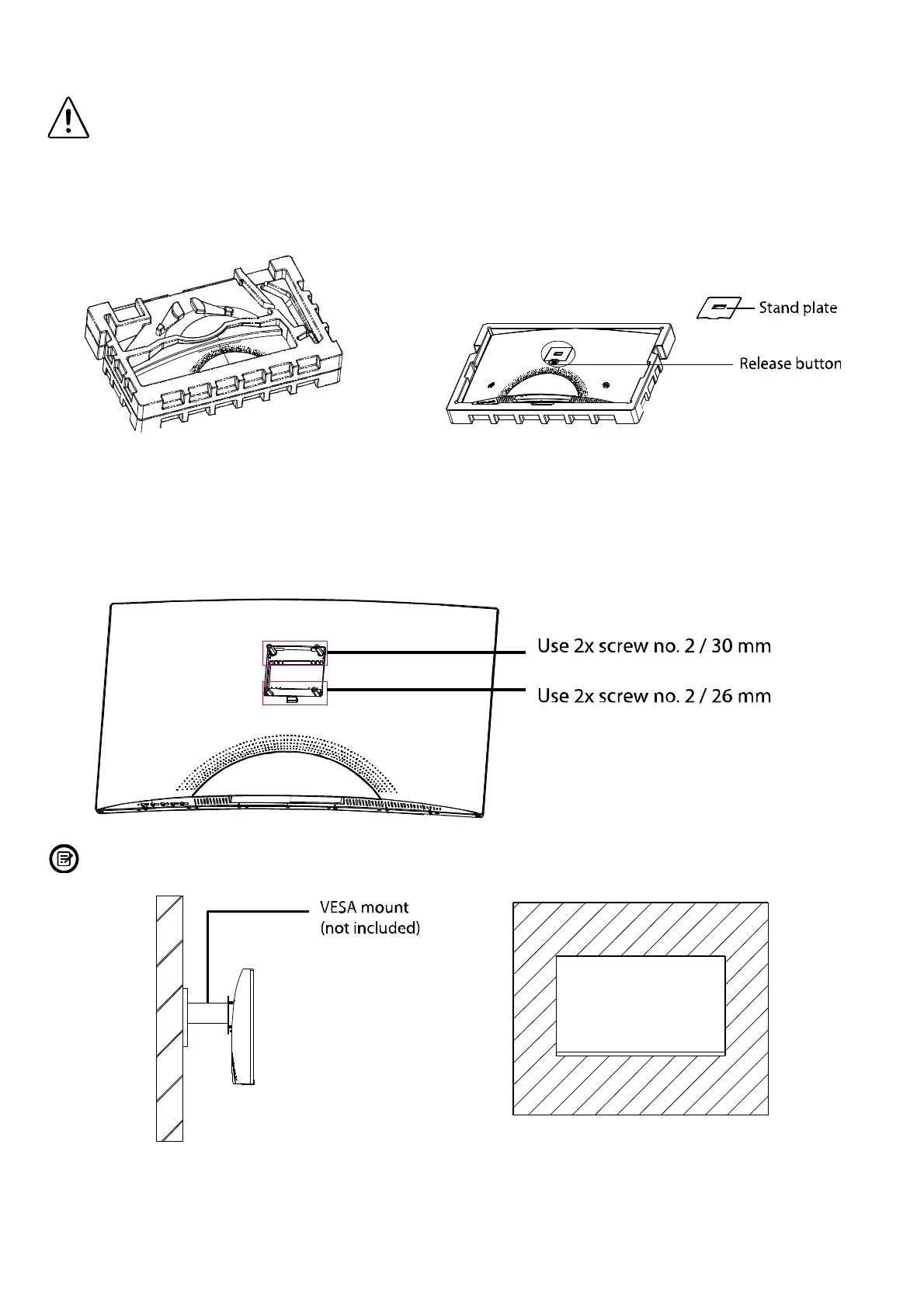

1. Open the packaging, take out the product with the foam parts still attached, and gently place it on a
desktop or table. Remove the extra parts and the foam part covering the back of the monitor. Press the
button to remove the stand plate. If the monitor is already attached to the stand, remove the stand.
2. Remove the 4 original screws from the opening on the back of the monitor.
3 . Follow the instruction manual of your VESA mount, stand or accessory and install the monitor on the wall
or fixture as desired. Remember to use the included no. 2 screws when attaching any mount etc. to the back
of the monitor. Refer to the image for correct screw placement:
Use only the no. 2 screws (2 pcs. with 30 mm, 2 pcs. with 26mm) provided for this type of
installation. Do not discard the original screws as these may be needed for future use.
