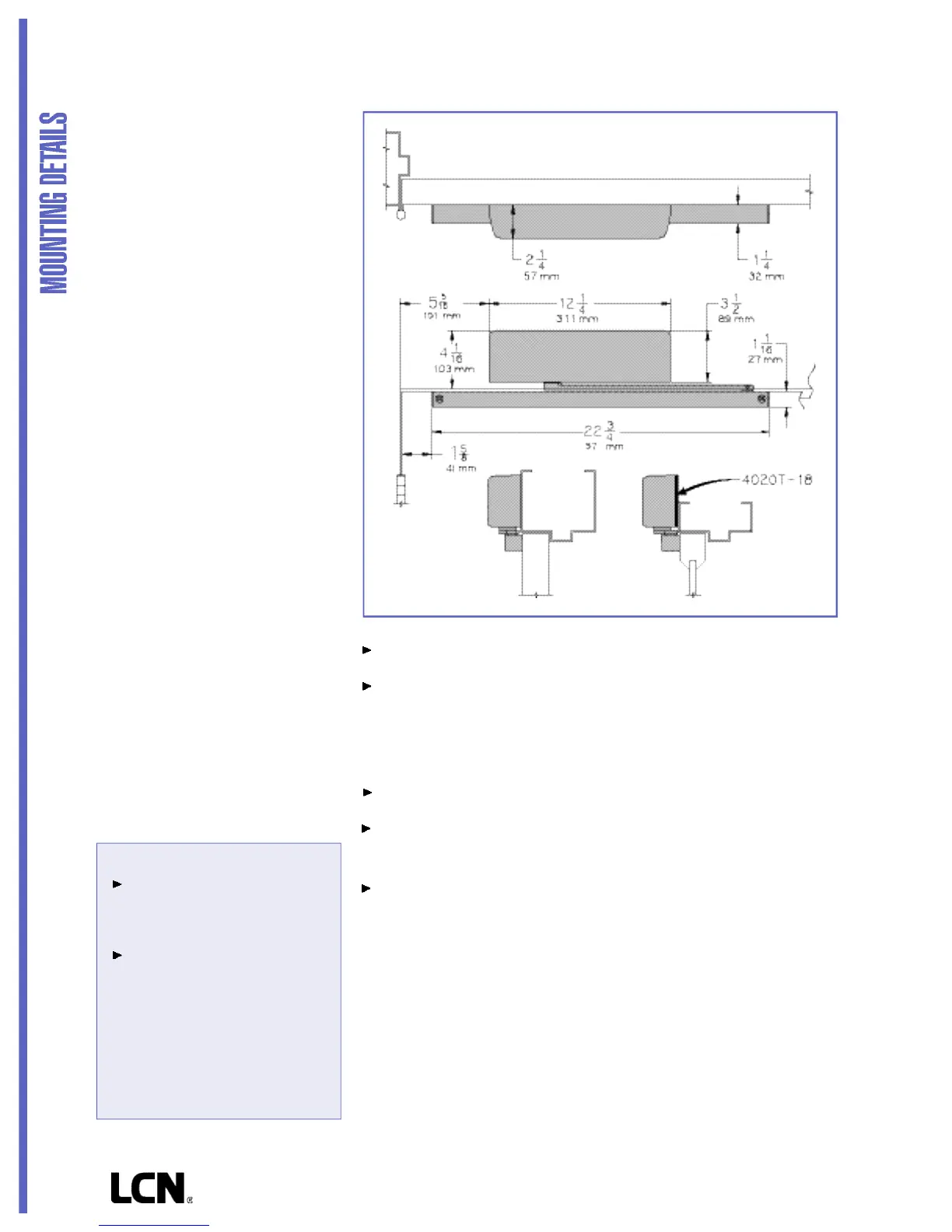

TOP JAMB (PULL SIDE)
MOUNTING
MAXIMUM OPENING
Templating allows 180° with
standard track arm, limited to
100° with optional bumper installed.
Consult factory if door will be held
open at 180°
Hold-open points at 80°, 85°, 90°,
95°, or 100° with hold-open tracks.
Please note that many track style door
closers are capable of allowing 180°
of door swing. Be aware that the
majority of track style closers are at
their weakest closing force in the
180 – 130° range. Consult factory for
applications where exterior or
large/heavy door must swing 180°.
LCN 4020T SERIES
Butt Hinges should not exceed 5” (127 mm) in width.
Auxiliary Stop is recommended at hold-open point or where a door
cannot swing 180°.
Optional track bumper assembly assists backcheck in cushioning the
opening swing of the door. It is not intended to replace an auxiliary stop.
Reveal should not exceed 1/8” (3 mm).
Head Frame less than 3 7/8” (98 mm), requires PLATE, 4020T-18.
Plate requires 1 3/4” (44 mm) minimum.
Clearance of 1 1/2” (38 mm) behind door required for 90° or 180°
installation.
Options
Standard track with bumper,
hold-open track, hold-open
track with bumper.
Metal cover.
Special Templates
Customized installation templates
or products may be available to
solve unusual applications.
Contact LCN for assistance.
