LCN 9700 Series User Manual

Page 8 of 14 740100-00(5)

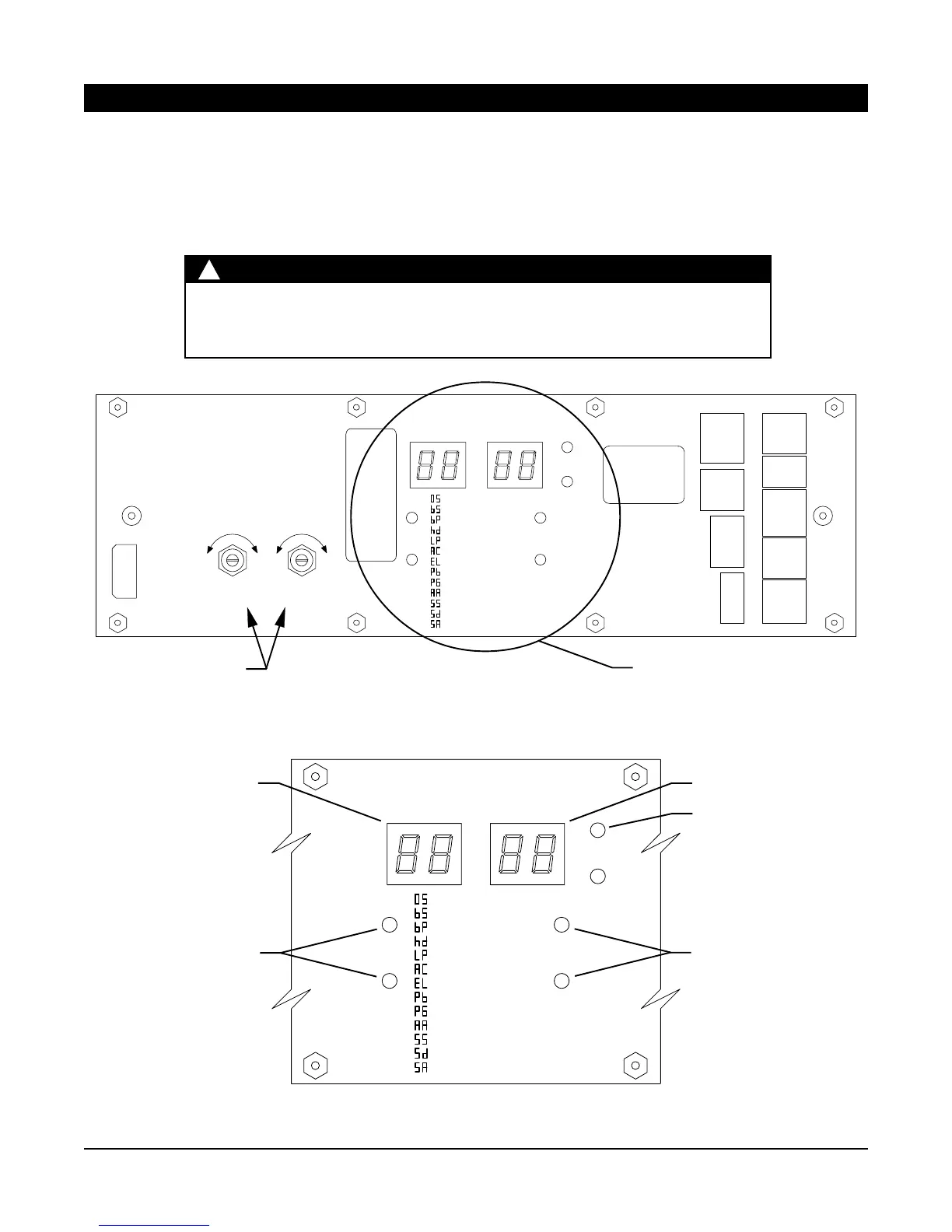

Figure 4-1. Control Box Panel with Keypad
4. KEYPAD SETTINGS
Settings (except for close speed) for the Middle and Senior Swing Power Operator System are changed using
keypad pushbuttons and an alphanumeric display on the Astro Swing control box (Figure 4-1 and Figure 4-2).
Close speed is changed using dials on the control box (Figure 4-1).
See page 9 and page 10 for directions for changing the values of settings.
Figure 4-2. Closeup of Control Box Keypad
SETTING VALUE
DOWN DOWN
UP UP
DEFAULT
POWER
ON
Setting display
Reset to default
values pushbutton
Value selection
pushbuttons
Setting selection
pushbuttons
: OPENING SPEED
: BACKCHECK SPEED
: BACKCHECK POS.
: HOLD-OPEN DELAY
: LATCH POSITION
: AUTO-REV. CLOSING
: ELECTRIC LOCK
: POWER BOOST
: PUSH ‘N’ GO
: ALTERNATE ACTION
: SAFETY SLOW/STOP
: SLOWDOWN DISABLE
: RESERVED
Value display
CAUTION
!
Adjust the operator for the slowest operation practical in accordance with the latest
revisions of Americans with Disabilities Act, ANSI/BHMA A156.19 (American National
Standard for Power Assist and Low Energy Power Operated Doors), and local codes.
Keypad
Close speed dials
CAUTION: 120 VAC
2.5 A TIME-DELAY FUSE
WARNING: FOR CONTINUED
PROTECTION AGAINST FIRE,
REPLACE ONLY WITH SAME
TYPE AND RATING OF FUSE.
COMPANION MASTER
CLOSE
SPEED
S
L
O
W
F
A
S
T
CLOSE
SPEED
S
L
O
W
F
A
S
T
: OPENING SPEED
: BACKCHECK SPEED
: BACKCHECK POS.
: HOLD-OPEN DELAY
: LATCH POSITION
: AUTO-REV. CLOSING
: ELECTRIC LOCK
: POWER BOOST
: PUSH ‘N’ GO
: ALTERNATE ACTION
: SAFETY SLOW/STOP
: SLOWDOWN DISABLE
: RESERVED
SETTING
VALUE
DEFAULT
POWER
ON
UP
DOWN
UP
DOWN
WARNING: ALL SPEED
SETTINGS (OPENING,
CLOSING, AND LATCHING)
AND HOLD-OPEN TIME-
DELAY MUST BE FIELD
ADJUSTED TO MEET
LATEST APPLICABLE ANSI/
BHMA STANDARDS.
DMSS
#2
APPROACH
P5
DMSS
#2
SAFETY
P4
ELECTRIC
LOCK
P10
RETROFIT
P8
BODYGUARD
P1
ACTIVATE
P6
ACTIVATE
P7
DMSS
#1
APPROACH
P3
DMSS
#1
SAFETY
P2
LCN
®
COMPANION
MOTOR
XXXX SWING
XXXX-00
SN: XXXX
No Serviceable
Parts Inside
