LCR Pro1 Introduction And Application Guide

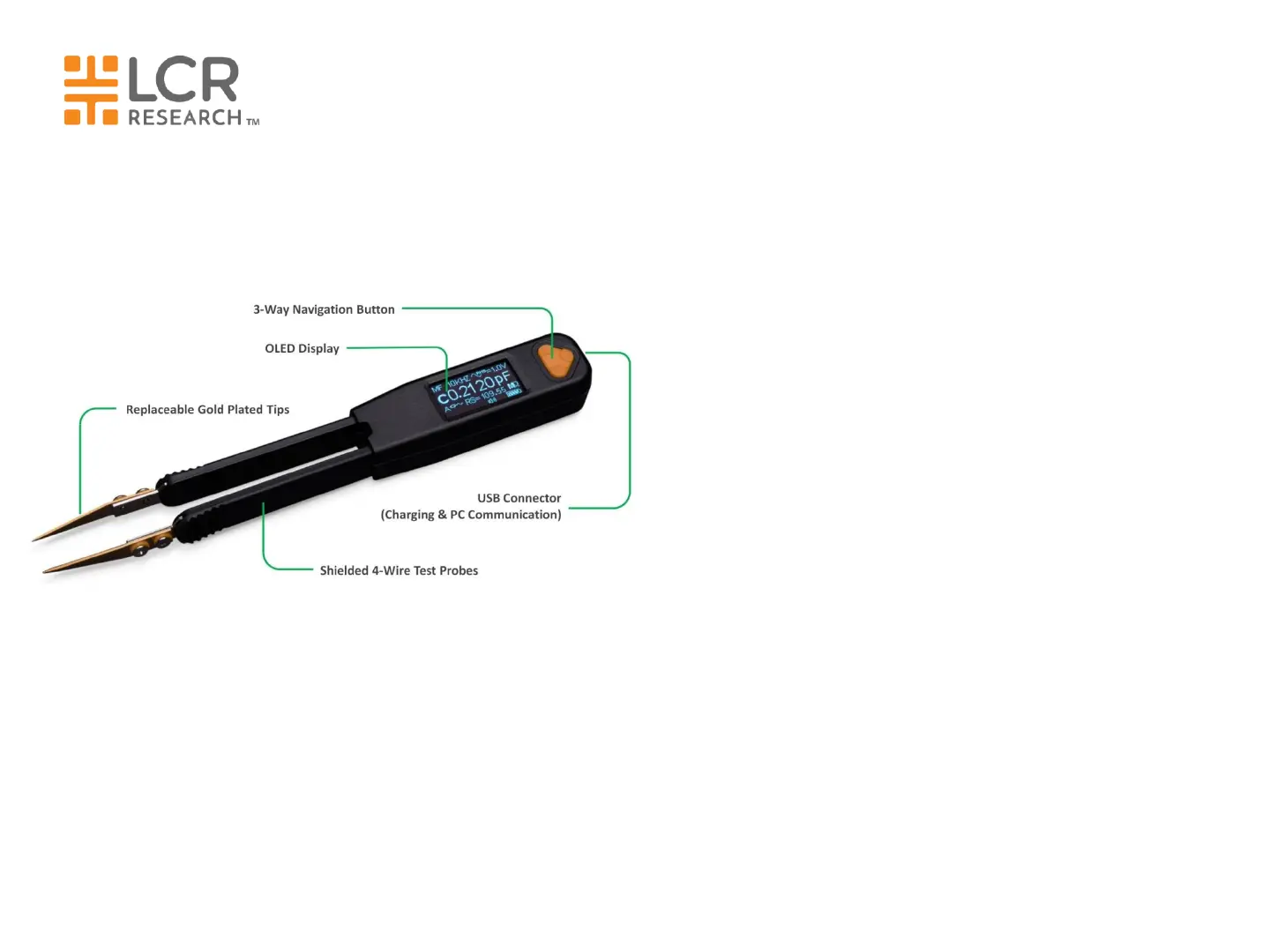

Pro1 / Pro1 Plus Key Features
rev1.6 3
• Easy operation
– One hand use, full set of shortcuts
• Fully auto/manual selection
• Multiple measurement functions
– R, L, C, Z, ESR, DCR, D, Q, θ, diode
• High accuracy
– R: 0.1% , L: 0.2%, C: 0.2%
• Wide measurement range
– R: 20mΩ to 10MΩ; C: 0.2pF to 10mF; L: 10nH to 1H (for Pro1)
– R: 20mΩ to 10MΩ; C: 0.2pF to 10mF; L: 1nH to 1H (for Pro1 Plus)
• 5 test frequencies
– 100Hz, 120Hz, 1kHz, 10kHz, 100kHz
• 3 test voltages
– 0.2Vrms, 0.5Vrms, 1.0Vrms
• Small size
– L*W*H: 151 x 19 x 15mm
• Large OLED display
– 0.96”, 128*64 resolution
• Ultra precise gold plated tips
• Rechargeable LiPO battery with USB charging
– 2.5 hours charging time, all day battery life
• PC remote control for data logging and programming*
* Require USB communication dongle (purchase separately)
