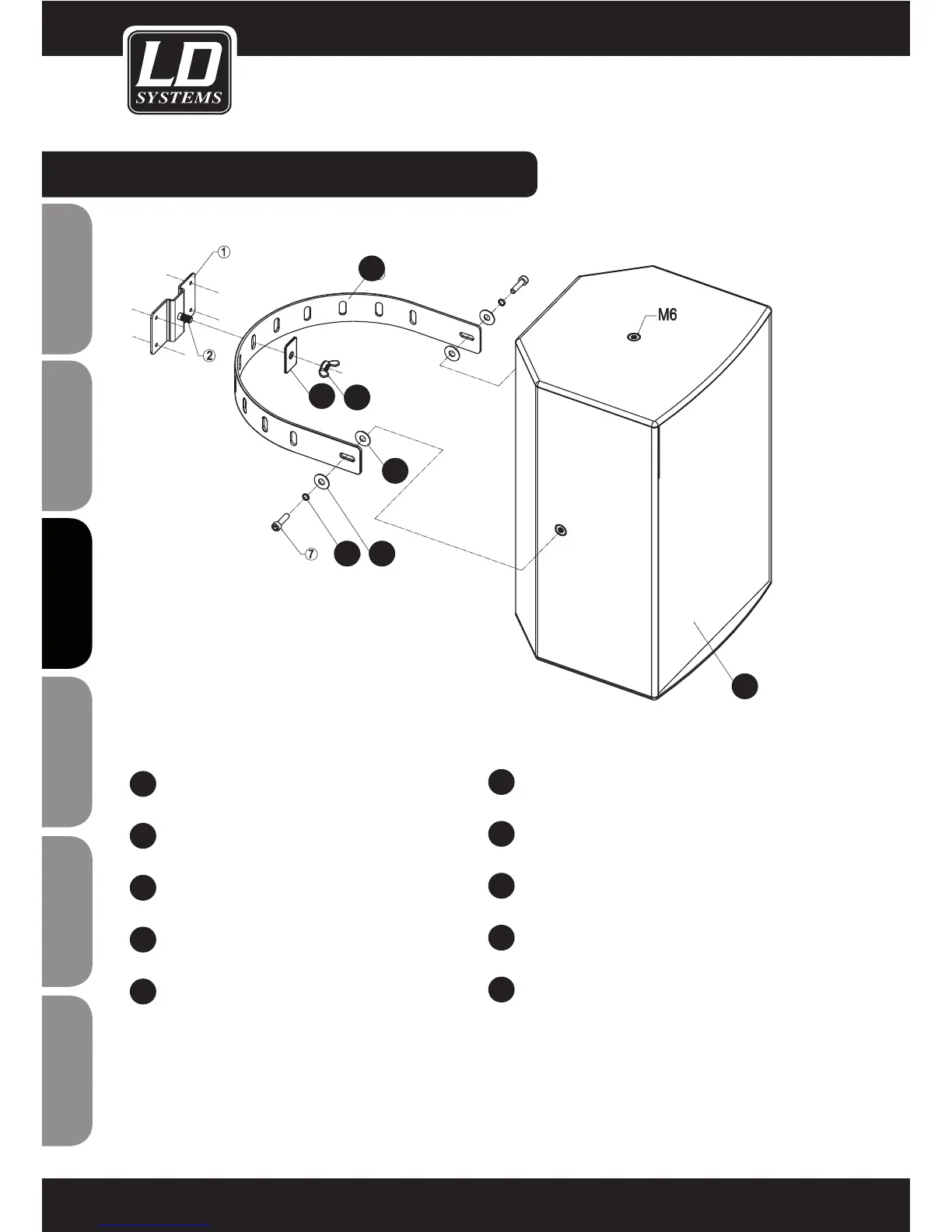

SCHÉMA FIXATION (ÉCLATÉ):
1
PANNEAU DE FIXATION MURALE
2
VIS M6
3
SUPPORT EN U (LYRE)
4
RONDELLE
5
ÉCROU M8
6
RONDELLE CAOUTCHOUC
7
VIS ALLEN M6 X 16
8
RONDELLE
9
RONDELLE MÉTALLIQUE
10
COFFRET LD SAT
