CONNECTORS, CONTROLS, AND INDICATORS:

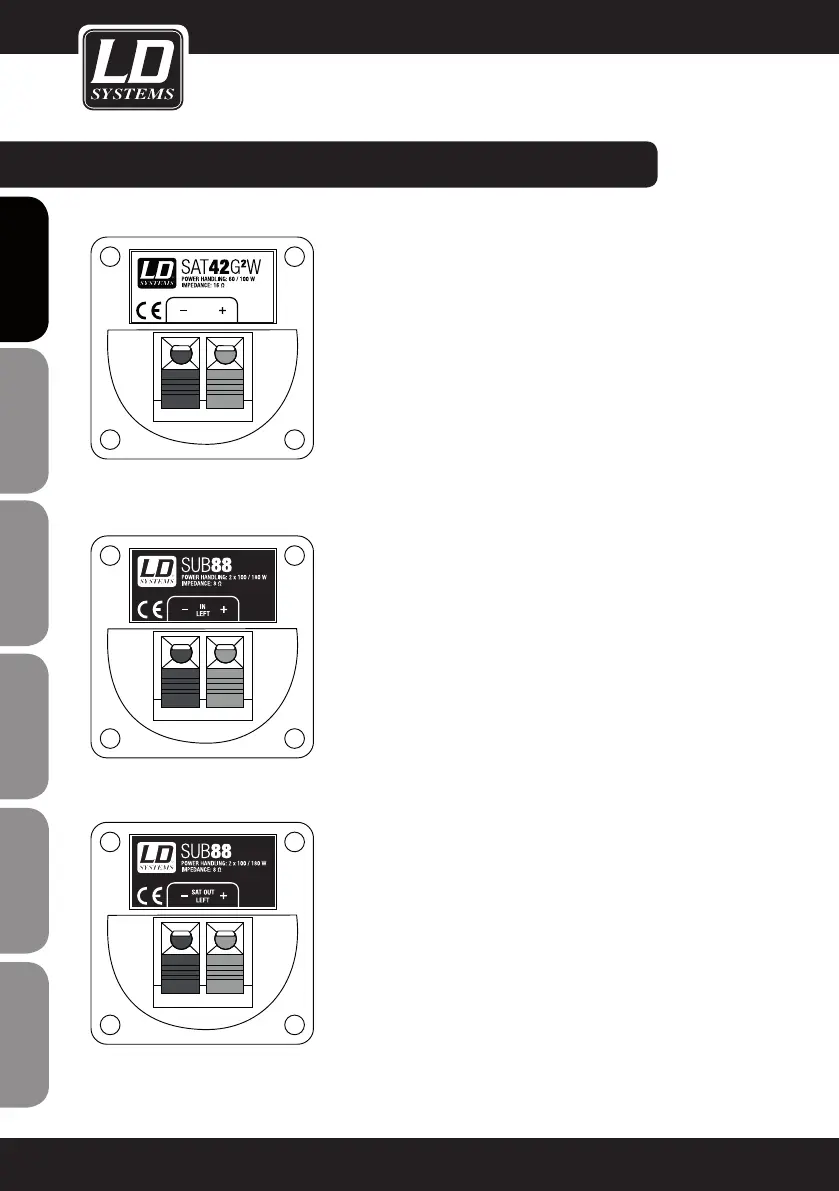

LDSATG2 PASSIVE SPEAKER:
(LDSAT42G2W shown)
TERMINAL CLAMPS FOR SPEAKER CABLES
Connect the positive pole (+) of the speaker cable
coming from the amplifier to the red terminal clamp (+)
and the negative pole (-) of the speaker cable coming
from the amplifier to the black terminal clamp (-).
LDSUB88 PASSIVE SUBWOOFER:
SUB88 IN (IN LEFT shown)
Terminal clamps for speaker cables.
Connect the positive pole (OUTPUT LEFT +) of the
speaker cable coming from the amplifier to the red
terminal clamp (IN LEFT +) and the negative pole
(OUTPUT LEFT -) of the speaker cable coming from
the amplifier to the black terminal clamp (IN LEFT -) of
the subwoofer.
Connect the SUB88 IN RIGHT and the amplifier OUT-
PUT RIGHT in the same manner.
SUB88 SAT OUT (SAT OUT LEFT shown)
Terminal clamps for speaker cables.
Connect the positive pole (+) of the speaker cable
to the red terminal clamp (SAT OUT LEFT +) and the
negative pole (-) of the speaker cable to the black
terminal clamp (SAT OUT LEFT -) of the respective
channel.
Connect the SATG2 Series speakers to the other side
of the speaker cable in the same manner.
IMPORTANT: Observe the remarks rearding the
LDSUB88 subwoofer and the passive LDSATG2 Series
speakers in the "OPERATING INSTRUCTIONS" section
of this user manual!
