-2-

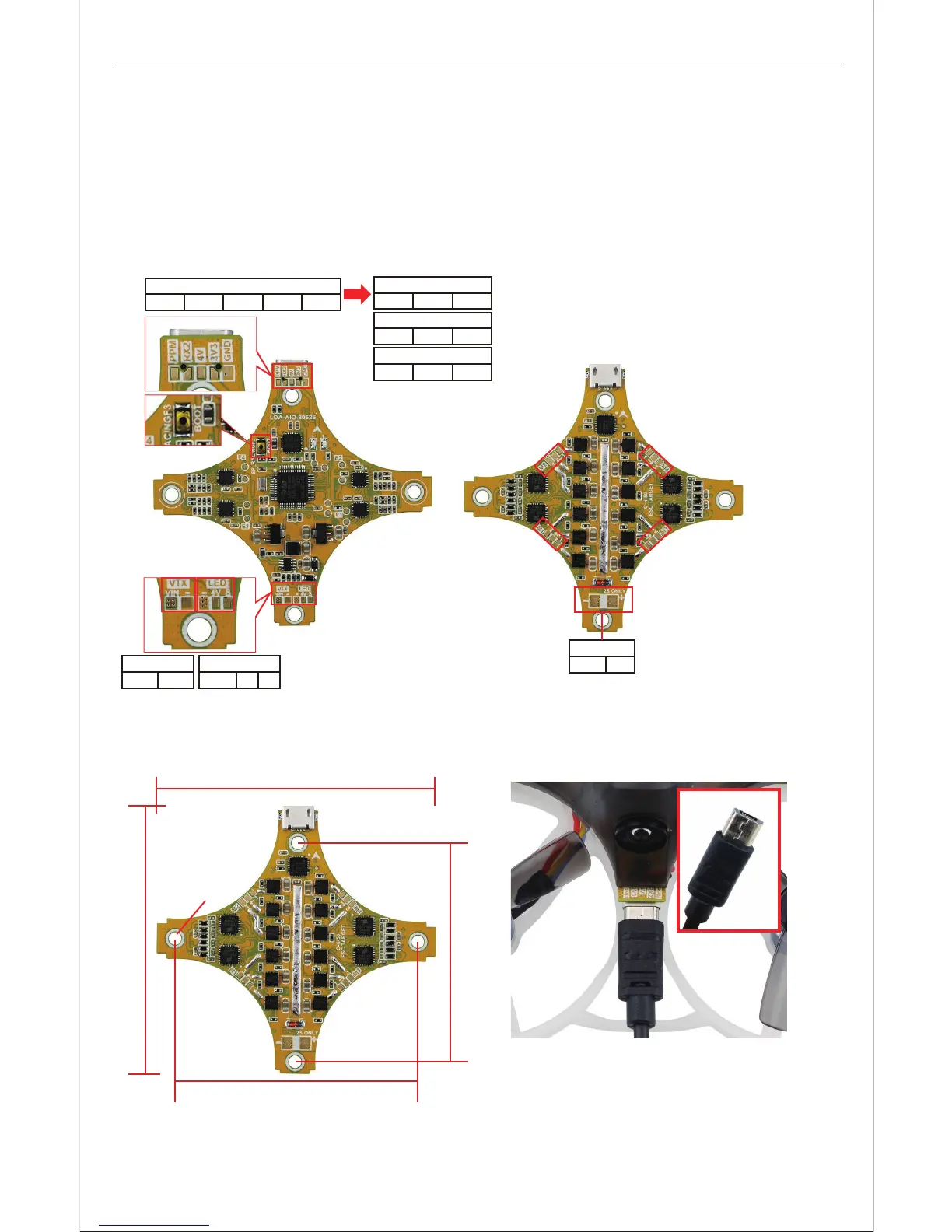

FC+ESC
FC Firmware:Betaflight SPRACINGF3
ESC Firmware:BLHeliS C-H-50(16.7[Official])
1.The FC output voltage 4V can power 5V receiver and LED.
2.Supports only 2S battery input (maximum voltage 8.7V), single-channel 10A
battery output when ESC 2S power supply.
Micro USB
GND
+
M1
M2 M4
M3
Only 2S
Q25OSD
VIN
GND
BOOT
LED
GND 4V S
PPM
Receiver
RX2 4V 3V3 GND
PPM
PPM
4V GND
S.BUS
RX2 4V GND
DSM2
RX2 3V3 GND
Φ2.6mm
55mm
64mm
50mm
61mm
Front Back
Please use the in-package USB cable connection settings,
The mismatched USB cable will cause PCB damage
