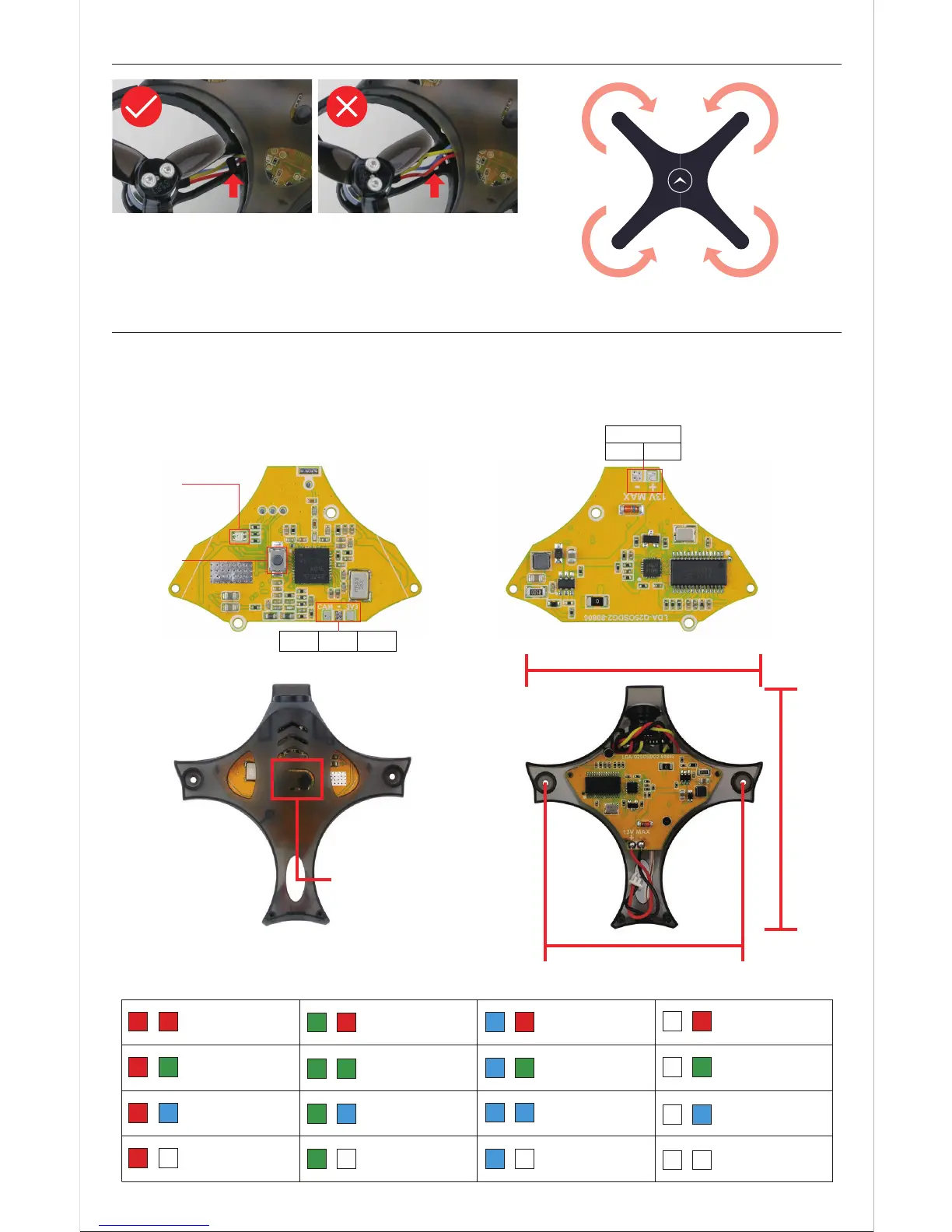

-3-
Motor
VTX+Camera
OSD:Smart OSD V1
VTX:5.8G 25mW 16CH
Working voltage:100mA(7.2V,no camera)
VTX input voltage:2-3S(7.2-13V)Lipo battery,
(PNP only supports 2S)
Frequency Table
5800MHz 5828MHz 5733MHz 5769MHz
5806MHz 5843MHz 5866MHz 5745MHz
5847MHz 5740MHz 5760MHz 5780MHz
5790MHz 5820MHz 5860MHz 5752MHz
LED
Button
CAM
Power
+
GND
GND 3.3V
Bind,OSD Setting
66mm
55mm
68mm
Note:Pay attention to the direction of rotation of the motor when
installing the prop.The connecting line of the motor is placed below
the card position, in case the connecting line and prop touch
M4(CW) M2(CCW)
M3(CCW) M1(CW)
