Modes of Use and Positioning
The MVS can be used in its standard upright position, with or without the optional
fluid carrier attached. Its slim design will take minimal floor space and allow it to be
conveniently placed. The variable angle of Haze output will also allow it to be
positioned in awkward or unusual sites. Further to this, a detachable base plate will
allow the machine to be positioned in a vertical mode but at a 45 degree angle, so
that the haze output angle can be varied from 45 to 135 degree coverage. For even
more versatility, this base plate can be mounted such that the MVS is at 45 degrees
in two planes (as shown on the front page of this manual). This will give a 45 to 135
degree spread at 45 degrees from the horizontal.
If required the MVS could lay flat, with the fan air inlet holes facing up.

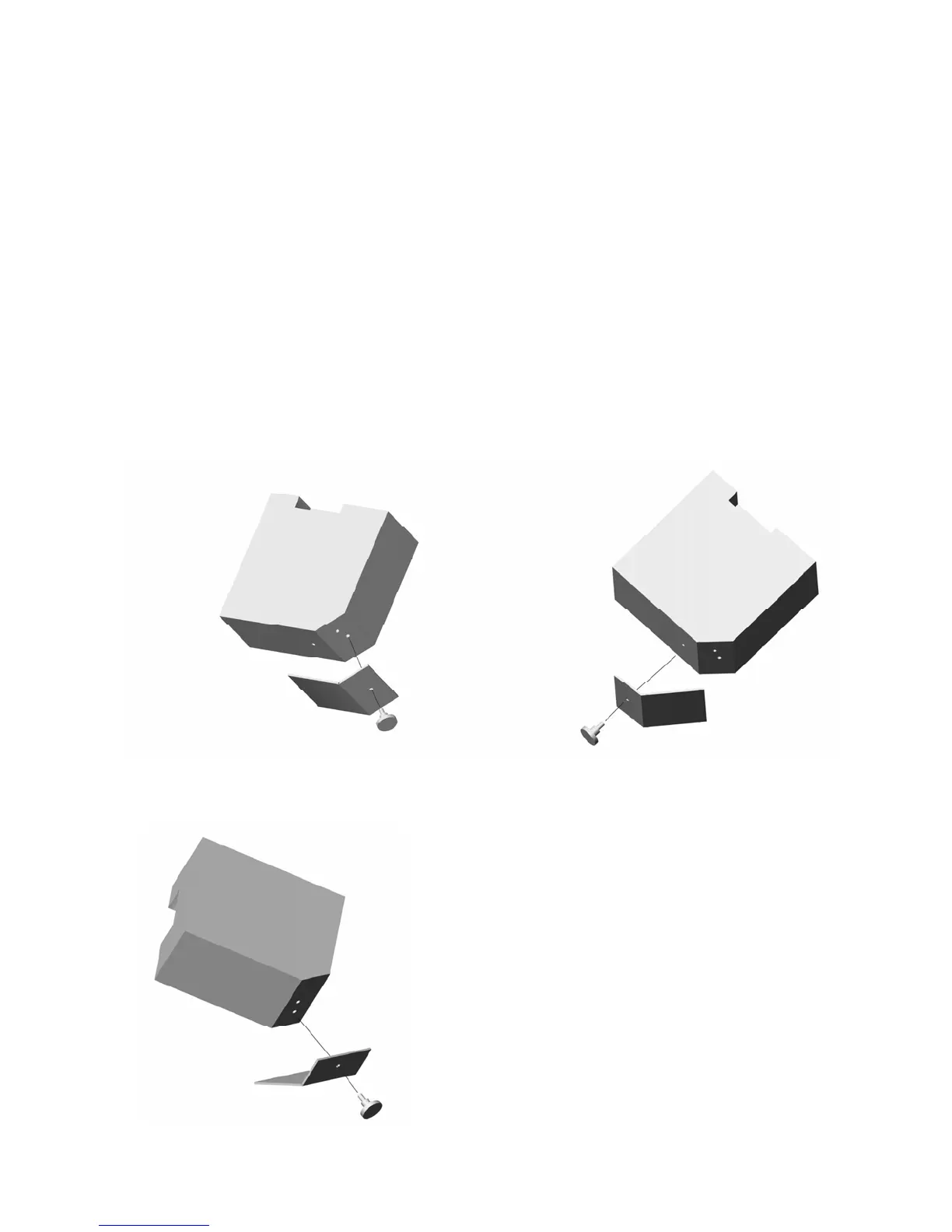

Standard Position 45 Degree Position
45 Degree Position Plus 45 Degree Tilt
