6 Charging Characteristics

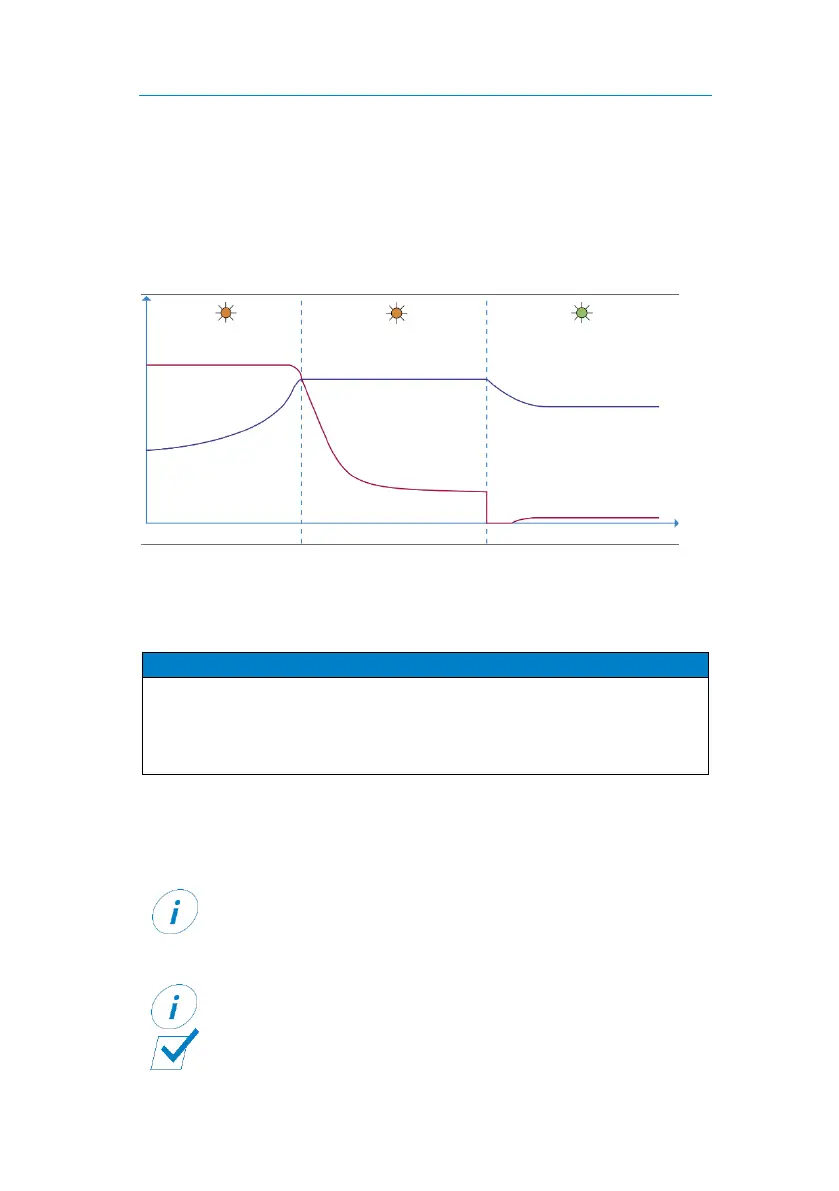

The ABC charger contains 15 different charging characteristics which you can
select before connecting to the battery. Battery charging is fully automatic
and micro-processor controlled with a 3-stage IU
1
U
2
characteristic curve for
gentle and optimum charging of the batteries.
The available charging characteristics can be found on the characteristics
sheet.
7 Setting Charging Characteristics
To set a charging characteristic, perform the following steps:
1. Turn the potentiometer to the desired position (see characteristics
sheet).
The arrow in the middle of the potentiometer indicates the
selected characteristic.
2. To prevent accidental adjustment of the charging characteristic, stick
the supplied sticker on the potentiometer.
Ensure that the notch in the sticker is above the LED.
The charging characteristic is set.
NOTICE
Battery defect due to incorrect charging
To protect the battery from damage due to incorrect charging, set a
suitable charging characteristic before installation. Follow the battery
manufacturer's instructions.
I U
1
U
2
