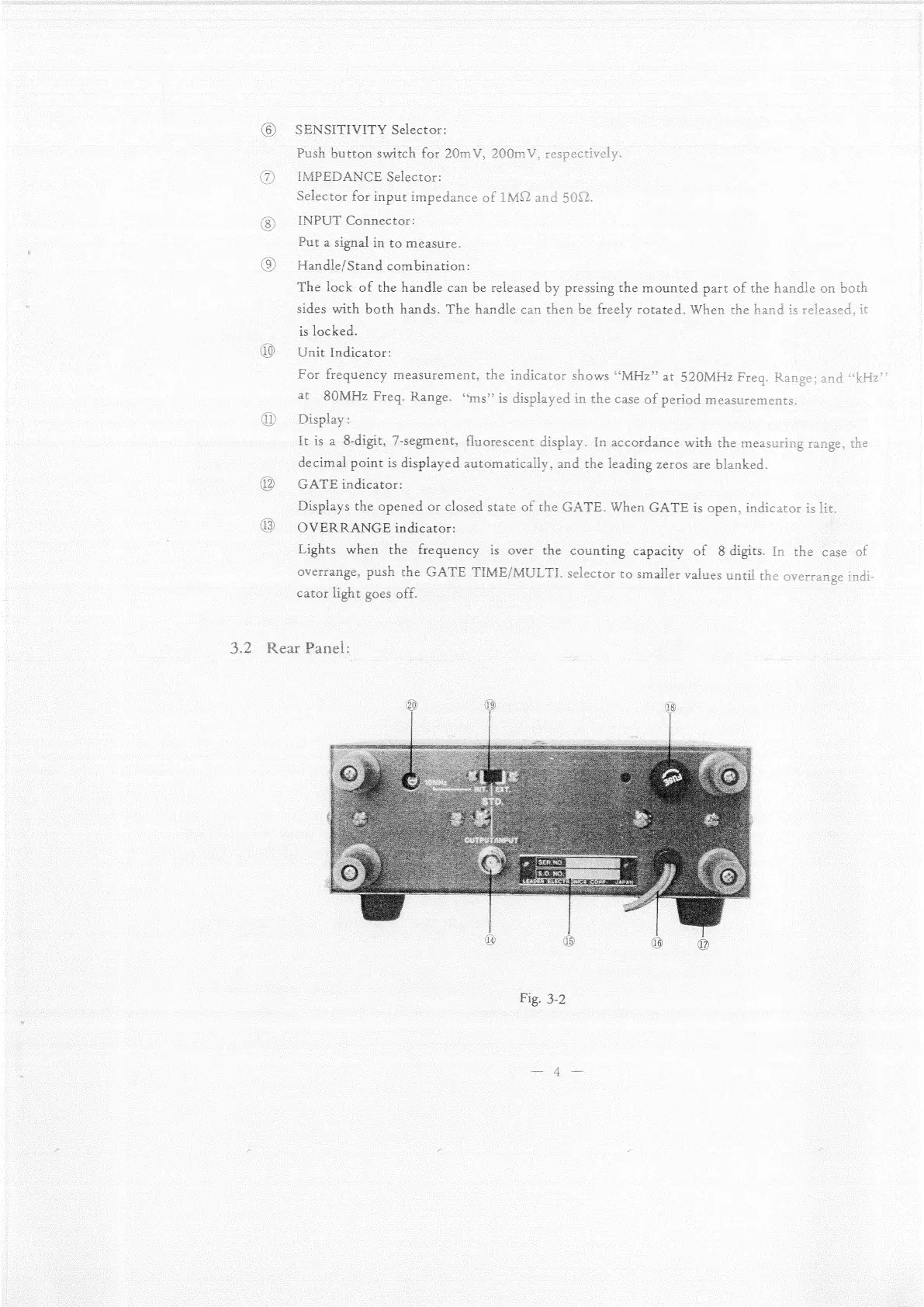

Leader Electronics Corp. LDC-824 - Page 5

(6) SENSITIVITY Selector:
Push button switch for 20mV, 200mV, respectively.
7) IMPEDANCE Selector:
Selector for input impedance of 1MQ and 50Q.
(g) INPUT Connector:
el
Put a signal in to measure.
(9) Handle/Stand combination:
l
ot
-
pes
youd
The lock of the handle can be released by pressing the mounted part of the handle on bo
sides with both hands. The handle can then be freely rotated. When th
is locked.
QQ Unit Indicator:
For frequency measurement, the indicator shows “MHz” at 520MHz 1
at
80MHz
Freq.
Range.
‘ms’
is
displayed
in
the
case
of
period
measurements.
QD Display:
It is a 8-digit, 7- -segment, fluorescent display. In accordance with the measuri: 1g Tange,
decimal point is displayed automatically, and the leading zeros are blanked.
G2. GATE indicator:
Displays the opened or closed state of the GATE. When GATE is open, indicator is lit.
(3 OVERRANGE indicator: :
Lights when the frequency is over the counting capacity of 8 digits. In the case of
overrange,
push
the
GATE
TIME/MULTI.
selector
to
smaller
values
until
the
overrange
indi-
cator light goes of f
4
3.2 Rear Panel:
