Leader LPS-151 - Line Voltages

7.5

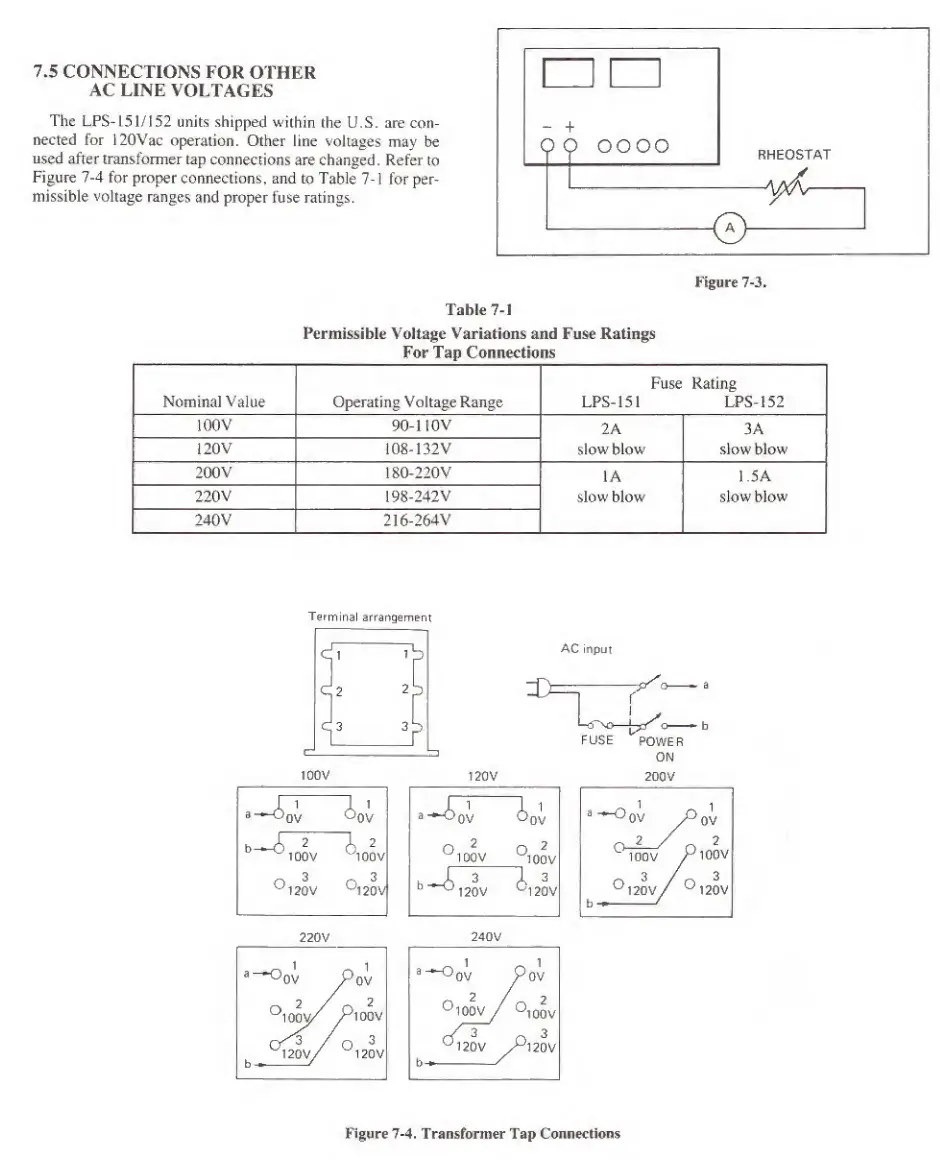

CONNECTIONS
FOR
OTHER
AC LINE
VOLTAGES
The
LPS-151/152
units
shipped
within
the U.S. are con-
nected for
120Vac
operation. Other line
voltages
may be
used
after transformer tap
connections are changed. Refer
to
Figure
7-4
for
proper
connections, and
to
Table
7-1
for per-
missible voltage
ranges
and proper fuse ratings.
-
+
99
oooo
RHEOSTAT
Table
7-1
Figure
7-3.
Fermissible Voltage Variations and Fuse Ratings
For Tap Connections
Nominal Value Operating Voltage Range
Fuse Rating
LPS-151 LPS-152
lOOV
90-1
lOV
2A
slow
blow
3A
slow
blow
120V
108-
132
V
200V
1 80-220
V
lA
slow blow
1.5A
slow blow
220V
1
98-242
V
240V 216-264V
Terminal
arrangement
Figure
7-4.
Transformer Tap Connections
