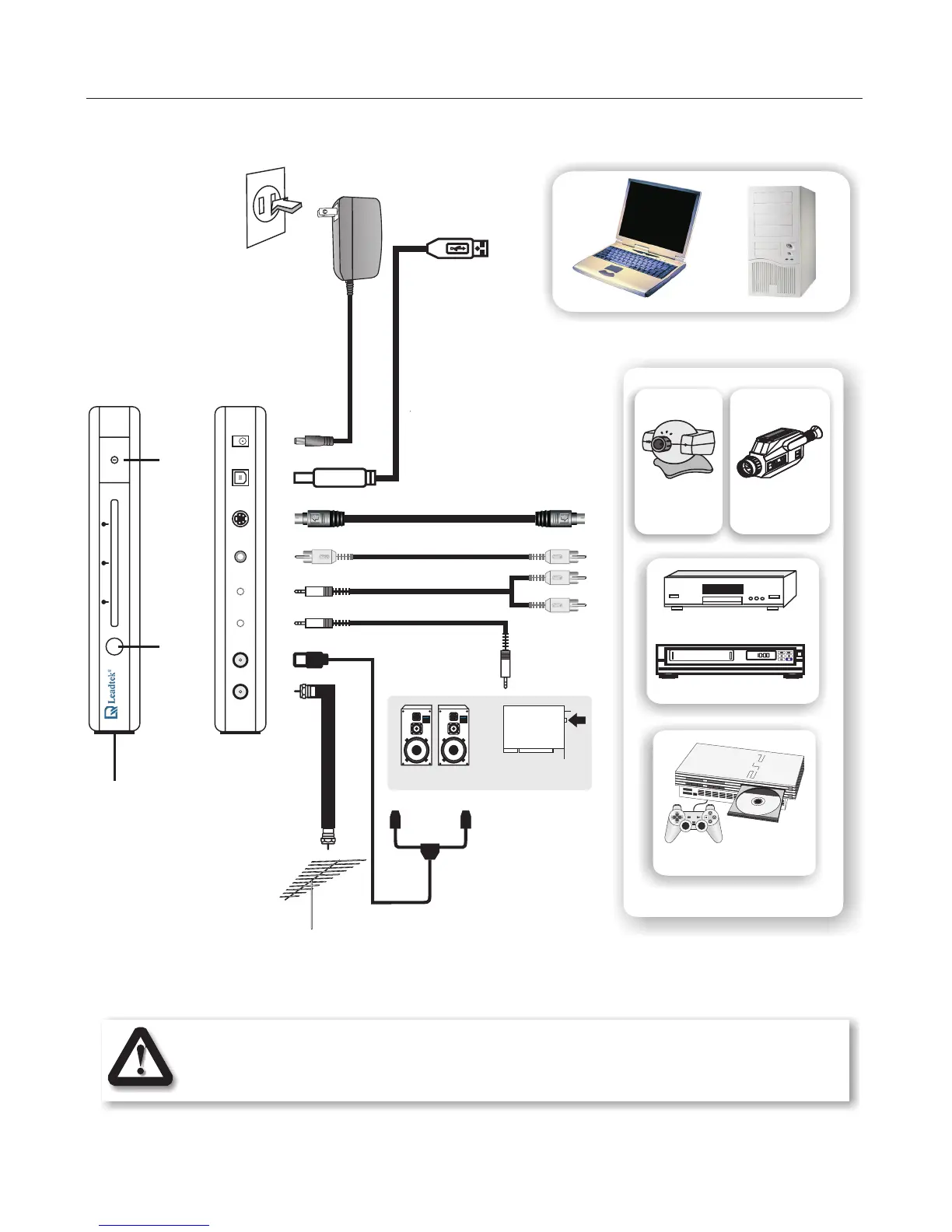

Connecting Devices
1
Before placing WinFast TV USB II on the stand, please remove the rubber
lid on the side near the Leadtek logo first.
Connect
to the
USB port
onaPC
or laptop
computer
DC Power
Adaptor
CCD cameraCCD camera Camcorder
VCR
DVD/VCD Player
SELECT START
ANALOG
SONY
PlayStation
Video Game Console
Input sources
S-Video in S-Video Out
Composite Video in
Composite Video Out
Audio in Audio Out
From Cable
TV or
Antenna
FM Antenna
Audio Out Audio In
OR
Speakers
Sound Card
Line-In
Rubber Lid
Power Playback Capture
WinFast TV USB II
Power
Button
IR
Sensor
USB
DC +5V
FM
TV
