LeapFrog LF915HD - Product Overview and Components; Parent Viewer Component Identification; Baby Unit Component Identification

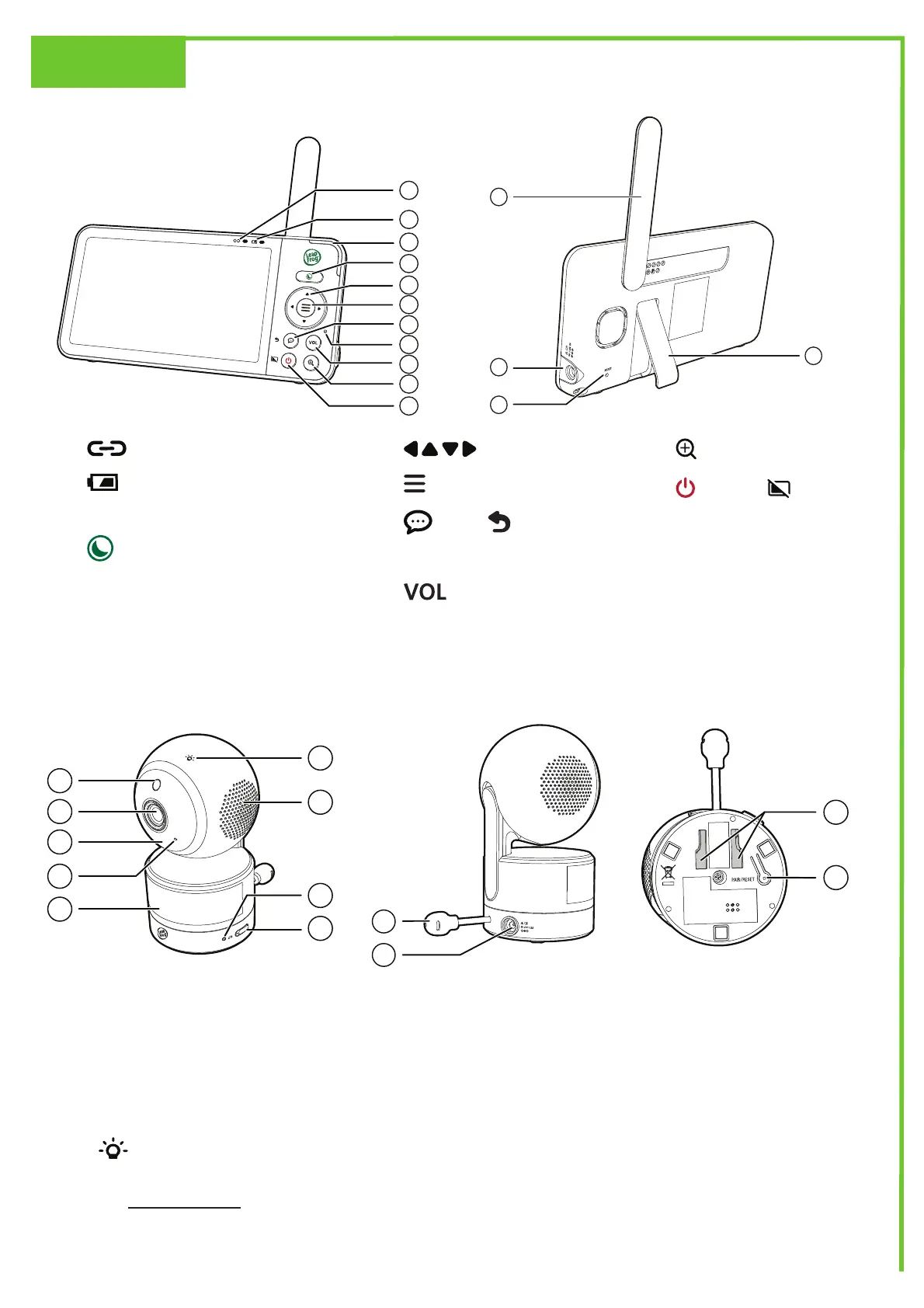

1
Link LED light
2
Battery LED light
3 3-level sound indicator light
4
Night Mode quick set key
• Select black-and-white or
color night vision viewing
mode.
• Adjust night light brightness.
5
Arrow Keys
6
Menu / Select
7
Talk
/
Return
8 Microphone
9
Volume
• View the volume
adjustment bar.
10
Zoom
11
Power / LCD Off
12 Antenna
13 Power jack
14 RESET
15 Stand
Baby Unit
1 Light sensor
2 Camera
3 Infrared LEDs
4 Microphone
5 Night light
6
Night light control key
• Press to turn the night light on or off.
• Press and hold to adjust night light
brightness level.
7 Speaker
8 POWER LED Light
9 On / Off switch
10 Temperature sensor
• Position horizontally for optimal usage.
11 Power jack
12 Wall mount holes
13 PAIR / Reset key
• The Parent Viewer and Baby Unit(s)
provided are already paired.
Overview
Parent Viewer
2
1
3
4
5
6
7
8
9
10
11
12
13
14
15
12
13
1
2
3
5
8
4
9
6
7
11
10
5
