Leb Electronics STONE 180 - Gearmotor - assembly instructions

ENGLISH

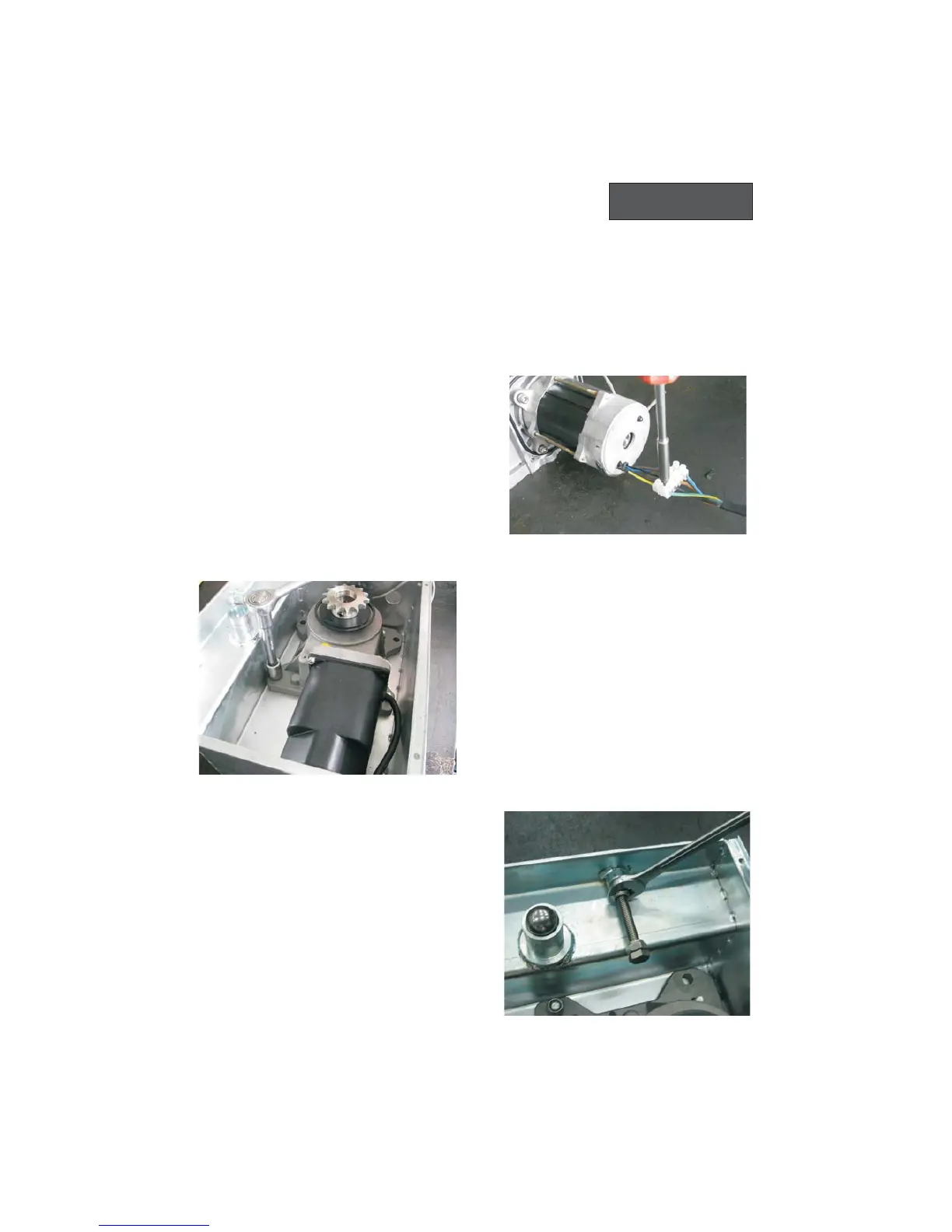

Fig.5
Fig.6
- Let to pass the motor's cable
coming from the installation
through the special cable gland
Pg9, fitted on the motor's cover.
- Connect the cable coming from
the installation to the motor's
cable piece by means of clamps
(fig.5).
- Tighten the cable gland Pg9 and
connect the motor's cover to the
gearbox by means of the four screws.
- Anchor the gearmotor to the tie rods
of the foundation box with the
supplied bolts (fig.6).
Gearmotor - assembly instructions
After positioning the foundation box, assemble all the other
components:
- Insert the screw of chain stretcher
in the special bolt welded on the
foundation box and aligned to the
gearbox shaft (fig.7).
Fig.7
