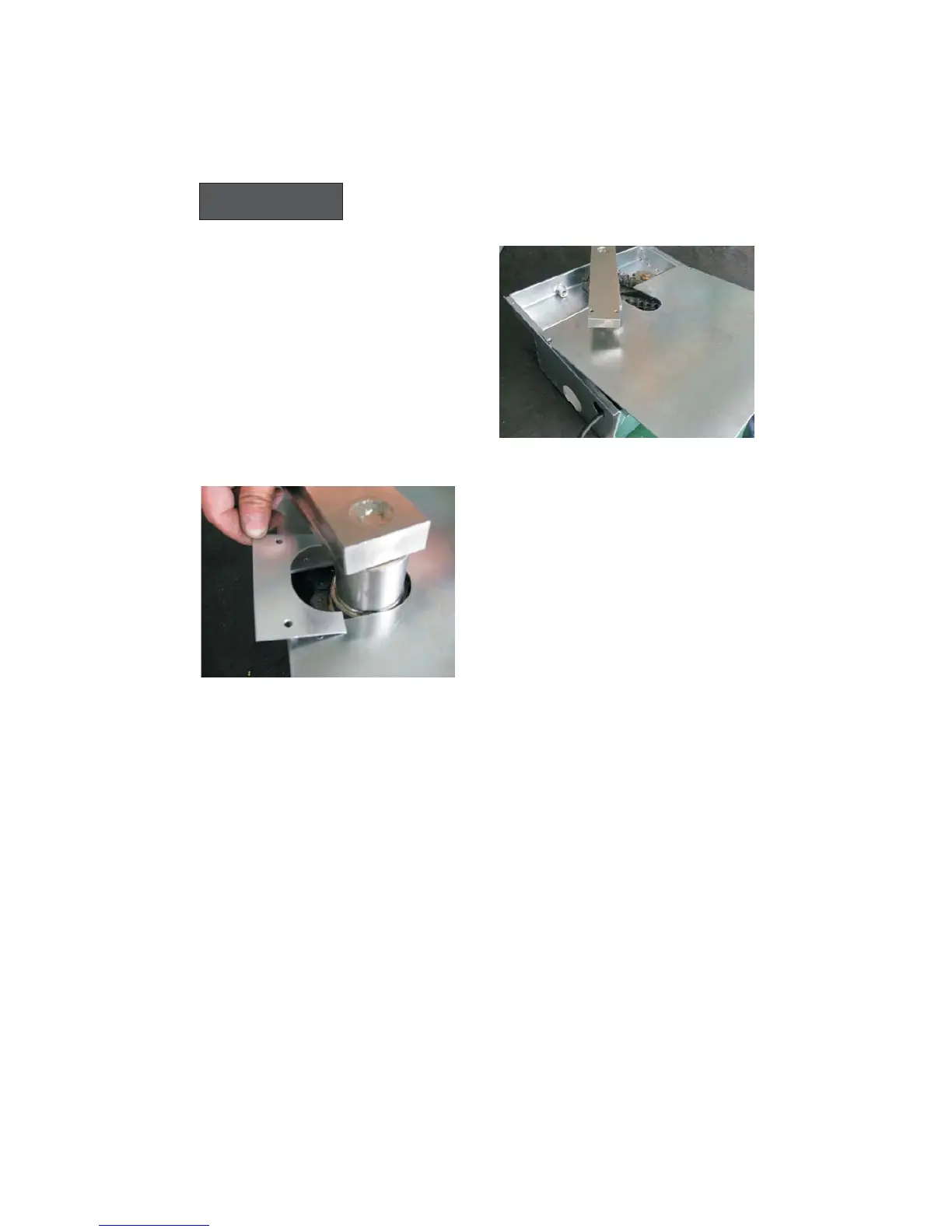

- Place the foundation box cover on
the base (fig.15).
Tighten the supplied screws in order
to fasten the cover.
Fig. 16
Fig. 15
- Place the “ ” plate on the cover.
Tighten the two supplied screws in
order to fasten the plate (fig.16).
U
ELECTRIC CONNECTIONS
Warnings
- The gearmotor must be connected but to a control unit
manufactured by the company LEB.
- All connection operations must be performed without electric
voltage.
Power supply cable
- From the electric motor comes out four wires (230Vac - )
or two wires (24Vdc - STONE 24).
- In the following table the data concerning the power supply cable,
required for the connection to the control unit, are reported.
STONE 180
