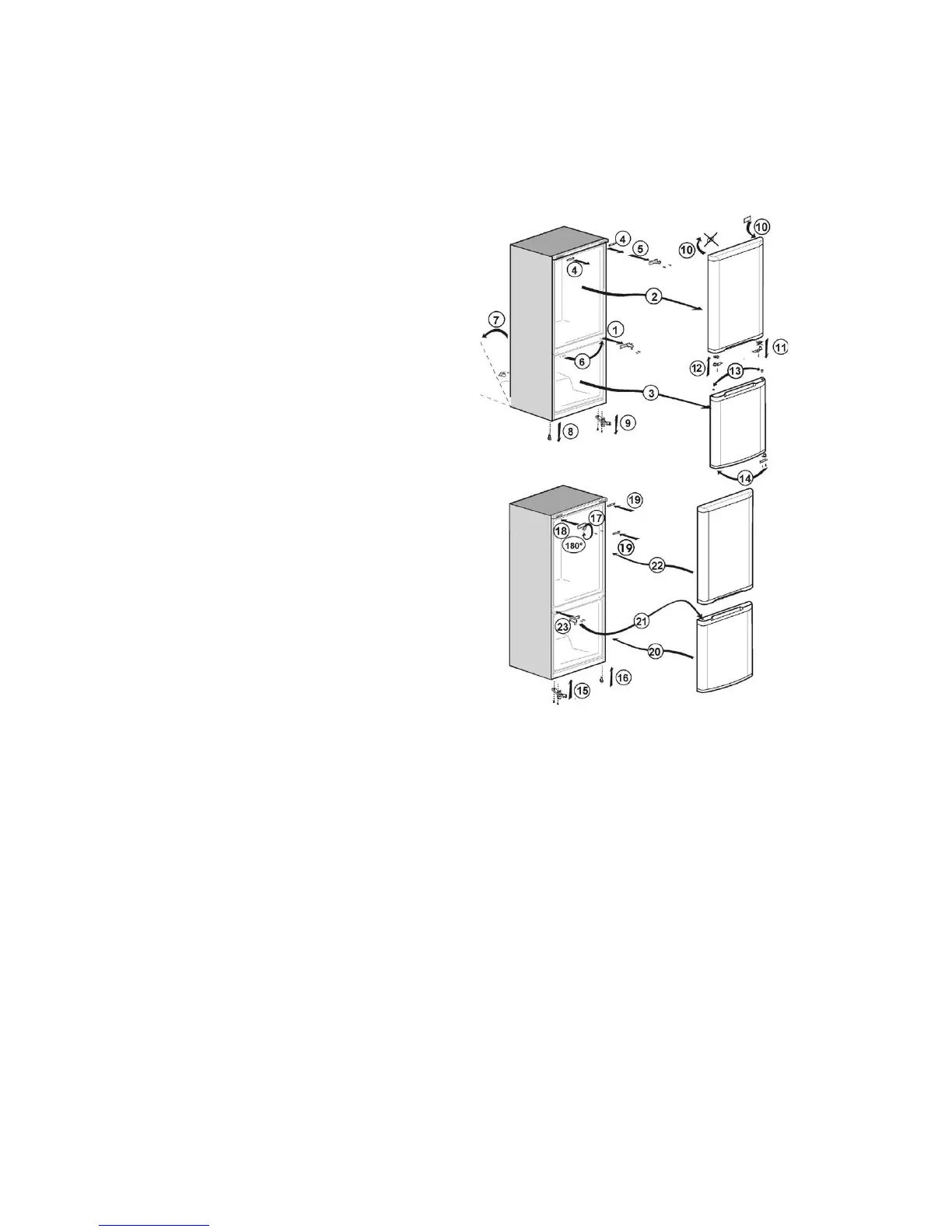

REVERSING THE DOORS
(You may need somebody to help you.)
1- Switch off the appliance at the socket outlet
and pull out the mains plug.
2- Remove all loose items and fittings and food, if
any, from inside the appliance and door
racks.
3- Unscrew the bolts and remove the middle
hinge while holding doors. (1)
4- Remove the fridge door from the top hinge. (2)
5- Remove the freezer door. (3)
6- Remove the plastic covers on the front top
trim. (4)
7- Unscrew the bolts of the top hinge and remove
top hinge. (5)
8- Reposition plugs on the opposite side. (6)
9- Carefully tilt the appliance on its back. (7) (You
may need somebody to help you.)
10- Remove the leveling screw. (8)
11- Take off lower hinge. (9)
12- Remove the plastic cover and fit the stopper
which is in the plastic bag to the other side.
(10)
13- Unscrew and remove the middle hinge
bushing from fridge door. (11)
14- Screw and fix the new middle hinge bushing
which is supplied in plastic bag to the other
side. (12)
15- Reposition the hinge bushing and the stopper
on the freezer door. (13)
16- Unscrew and reposition the bottom hinge
bushing. (14)
17- Reassemble the lower hinge on the opposite side (15)
18- Reinsert the leveling screw. (16)
19- Rotate the top hinge 180°. Unscrew the hinge pin and re-tighten it to the opposite side.(17)
20- Fit the top hinge and tighten the bolts. (18)
21- Fit the plastic cover on the front top trim. (19)
22- Locate the freezer door to the bottom hinge and attach to the cabinet. (20)
23- Locate the middle hinge on the freezer door (21) and put the fridge door between the top and
middle hinge carefully. (22)
24- Fit the middle hinge. Adjust the doors and tighten the bolts. (23)
25- Carefully stand your appliance (you may need somebody to help you) adjust the front feet.
26- Put back all, loose items and fittings.
27- Wait for at least 4 hours to allow the system to settle before switching on.
28- Once the correct storage temperatures have been reached in the appliance，put back all the
food.
