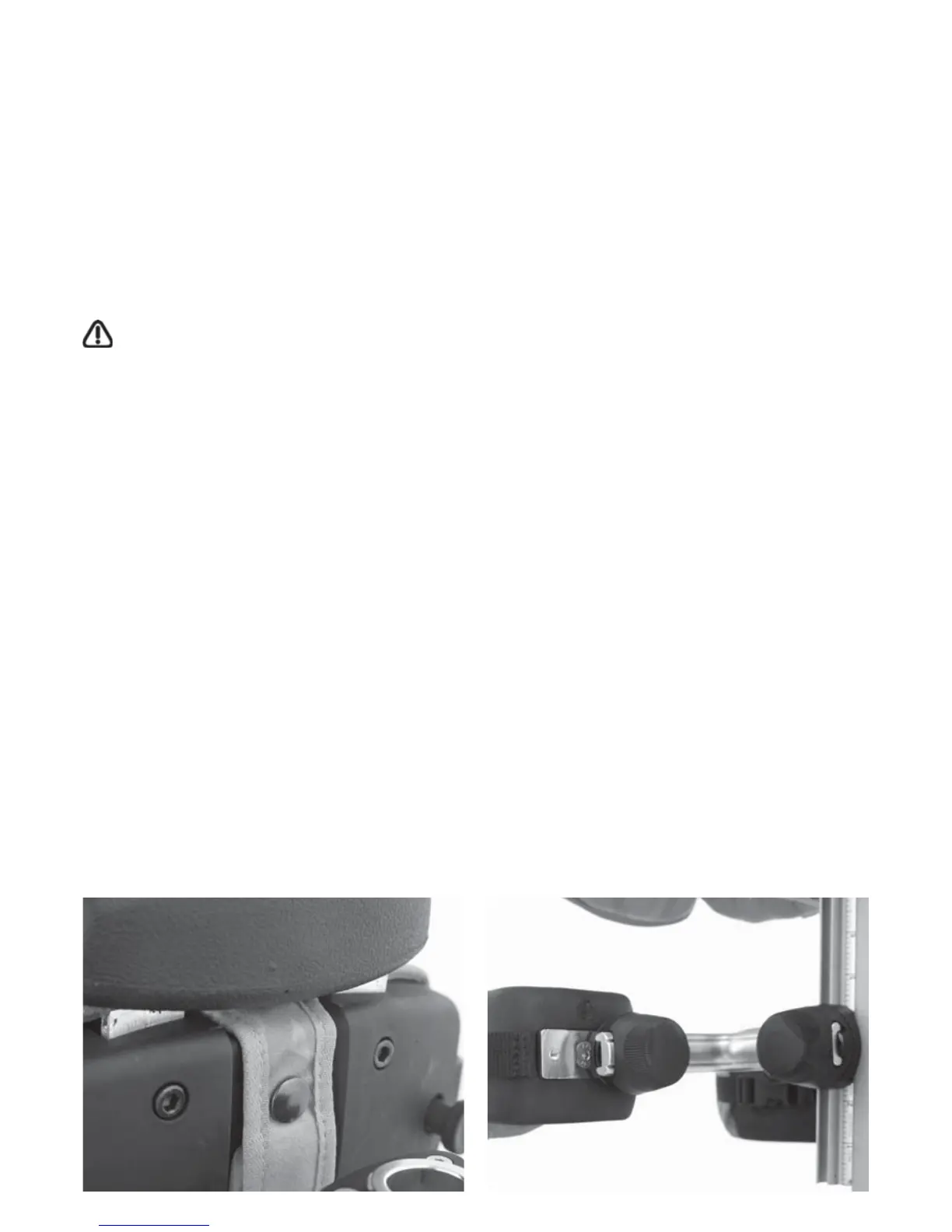

9.8 Adjusting the height,
depth and angle of the
knee cups
Each knee cup can be positioned
independently. To adjust the height, depth
and angle of the knee cups, loosen knob
(A), select the height, angle and depth
required and retighten the knob securely.
To adjust the width of the knee cup
loosen knob (B), set to the desired width
then retighten.
9.7 Adjusting the sternum
pad
The sternum pad can be raised to provide
additional support to assist thoracic
extension. This also allows the chest
support to be set lower to enable greater
freedom of arm movement. The sternum
plate is adjusted by loosening the two bolts
at the front of the chest plate with the multi-
tool, set to the desired height and retighten.
Always use caution to ensure fingers do
not become trapped when adjusting the
sternum pad.
A
B
