Lectric XPremium User Manual

17LECTRICEBIKES.COM | 602.715.0907
• ALWAYS insert the seat post past the minimum insertion point
marked on the seat post. A seat post that is positioned too high
can damage the bike and can cause you to lose control and crash.
Correct seat adjustment is an important factor in getting the most
performance and comfort from your bicycle. If the seat position is
not comfortable for you, you may want to go to your local bicycle
shop for assistance.
To achieve correct seat height:
• Sit on the seat;
• Place one heel on a pedal;
• Rotate the crank until the pedal with your heel on it is in the down
position and the crank arm is parallel to the seat tube.
If your leg is not completely straight, your seat height needs to be
adjusted. If your hips must rock for your heel to reach the pedal,
the seat is too high. If your leg is bent at the knee with your heel on
the pedal, the seat is too low.
To adjust seat height:

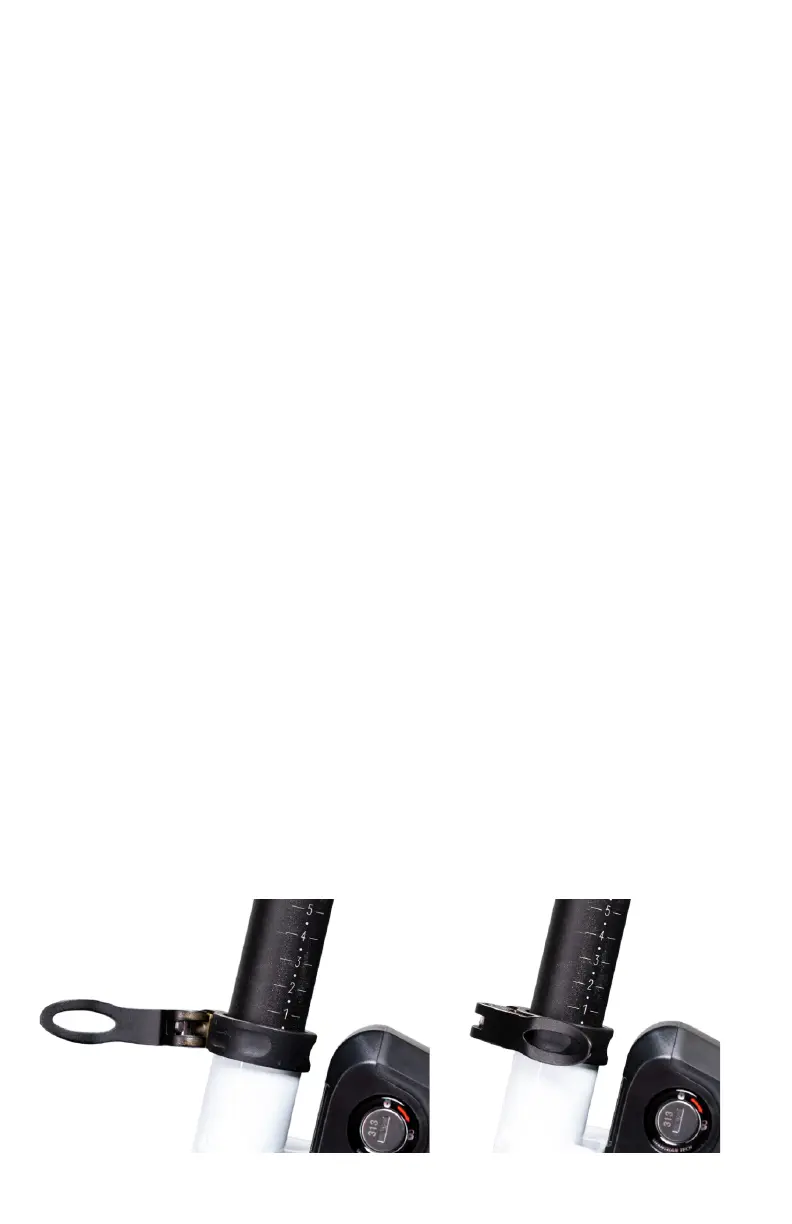

• Loosen the seat post clamp. The open and closed positions of the
seat post clamp are shown below (open position on left, closed
position on right);
• Raise or lower the seat post in the seat tube;
• Check that the seat is straight before and after; and
• Re-tighten the seat post clamp to the recommended torque. See
Tightening Torque (p. 19).

Lectric XPremium Specifications

General

Category	Electric Bicycle
Weight	75 lbs
Frame	6061 Aluminum
Brakes	Hydraulic Disc Brakes
Suspension	Front Suspension Fork
Drive Mode	Pedal Assist and Throttle
Foldable	Yes
Max Load	330 lbs
Charging Time	4-6 hours
Pedal Assist Levels	5 Levels
Kickstand	Yes
Warranty	1-Year Limited Warranty
Battery	48V 14Ah
Battery Placement	Integrated into frame
Top Speed	28 mph
Gears	7-Speed
Lights	Integrated Headlight and Taillight
Display	LCD Display
Throttle	Yes
Headlight	Yes
Taillight	Yes
Range	45-100 miles (depending on conditions)
