10
White
B
l
ac
k
(-)
DC ground
Use 14ga. wire
(+) 12vdc or 24vdc
Communications Port
for second station. See
Installation Manual
for details.

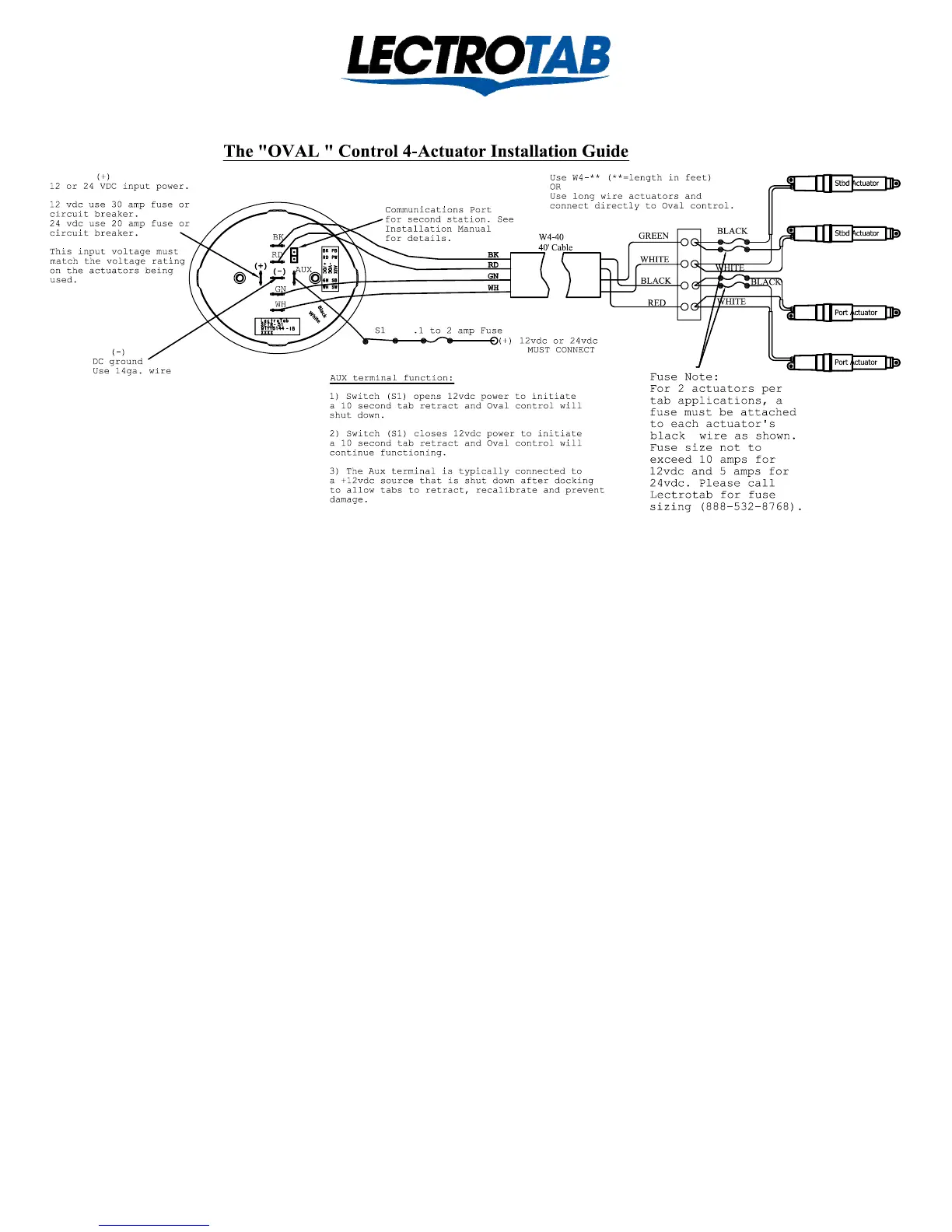

The "OVAL " Control 4-Actuator Installation Guide
(+)
12 or 24 VDC input power.
12 vdc use 30 amp fuse or
circuit breaker.
24 vdc use 20 amp fuse or
circuit breaker.
This input voltage must
match the voltage rating
on the actuators being
used.
AUX terminal function:
1) Switch (S1) opens 12vdc power to initiate
a 10 second tab retract and Oval control will
shut down.
2) Switch (S1) closes 12vdc power to initiate
a 10 second tab retract and Oval control will
continue functioning.
3) The Aux terminal is typically connected to
a +12vdc source that is shut down after docking
to allow tabs to retract, recalibrate and prevent
damage.
(+)
(-)
AUX
S1
.1amp Fuse
BK
RD
GN
WH
GREEN
WHITE
BLACK
RED
BLACK
WHITE
BLACK
WHITE
Stbd Actuator
Stbd Actuator
W4-40
40' Cable
Port Actuator
Port Actuator
BK
RD
GN
WH
Fuse Note:
For 2 actuators per
tab applications, a
fuse must be attached
to each actuator's
black wire as shown.
Fuse size not to
exceed 10 amps for
12vdc and 5 amps for
24vdc. Please call
Lectrotab for fuse
sizing (888-532-8768).
Lit # J1107
Revised January 2014
