WATER FLOW AND WATER TEMPERATURE
The flow rate through the water heater is limited to a maximum of 26.0 (or 20.0) l/min.
The temperature setting, along with the supply temperature of the water will determine
the flow rate output of the unit.
Please refer to the temperature vs. litre per minute chart to determine the likely flow
rates based on your local ground water temperature and your desired outlet water
temperature combination.
WARRANTY CONDITIONS
Please contact your LEDA office for full warranty conditions on 1800 697
652 or service@agiaus.com for all Warranty and Service information.
1P2013

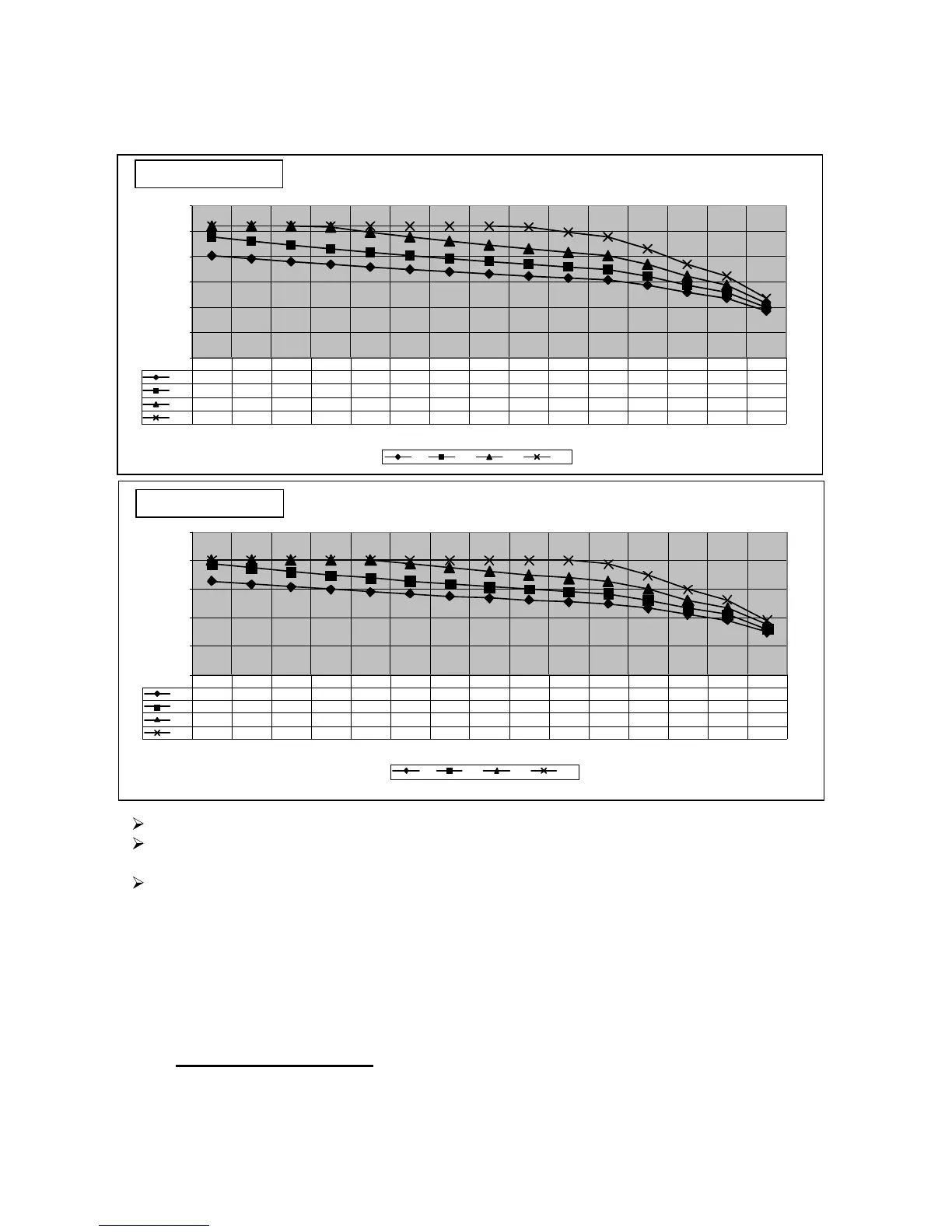

Out Put Temperature vs . l/min (Max. 20 l/min) with Var ious Ground Water Tempe ratur e
Cor rect Gas pipe size c an be expe ct this chart
0. 0
5. 0
10. 0
15. 0
20. 0
25. 0
Ou t p ut Hot W ater Tem perat ur e
O ut Put Hot W ater l / min
5
℃
10
℃
15
℃
20
℃
5
℃
16. 3 15.8 15. 4 14.9 14.5 14.1 13. 7 13.4 13.1 12.7 12. 4 11.6 10. 4 9. 5 7.5
10
℃
19. 3 18.7 18. 0 17.4 16.8 16.3 15. 8 15.4 14.9 14.5 14. 1 13.1 11. 6 10.4 8.0
15
℃
20. 0 20.0 20. 0 20.0 20.0 19.3 18. 7 18.0 17.4 16.8 16. 3 14.9 13. 1 11.6 8.7
20
℃
20. 0 20.0 20. 0 20.0 20.0 20.0 20. 0 20.0 20.0 20.0 19. 3 17.4 14. 9 13.1 9.5
37 38 39 40 41 42 43 44 45 46 47 50 55 60 75
Out Put Temperature vs. l/min (Max. 26 l/min) with Various Ground Water Temperature
Correct Gas pipe size can be expect this chart
0.0
5.0
10.0
15.0
20.0
25.0
30.0
Out put Hot Water Temperature
Out Put Hot Water l/min
5
℃
10
℃
15
℃
20
℃
5
℃
20.1 19.5 19.0 18.4 17.9 17.4 17.0 16.5 16.1 15.7 15.3 14.3 12.9 11.7 9.2
10
℃
23.9 23.0 22.2 21.5 20.8 20.1 19.5 19.0 18.4 17.9 17.4 16.1 14.3 12.9 9.9
15
℃
26.0 26.0 26.0 25.8 24.8 23.9 23.0 22.2 21.5 20.8 20.1 18.4 16.1 14.3 10.7
20
℃
26.0 26.0 26.0 26.0 26.0 26.0 26.0 26.0 25.8 24.8 23.9 21.5 18.4 16.1 11.7
37 38 39 40 41 42 43 44 45 46 47 50 55 60 75
LCN26/LCL26
LCN20/LCL20
