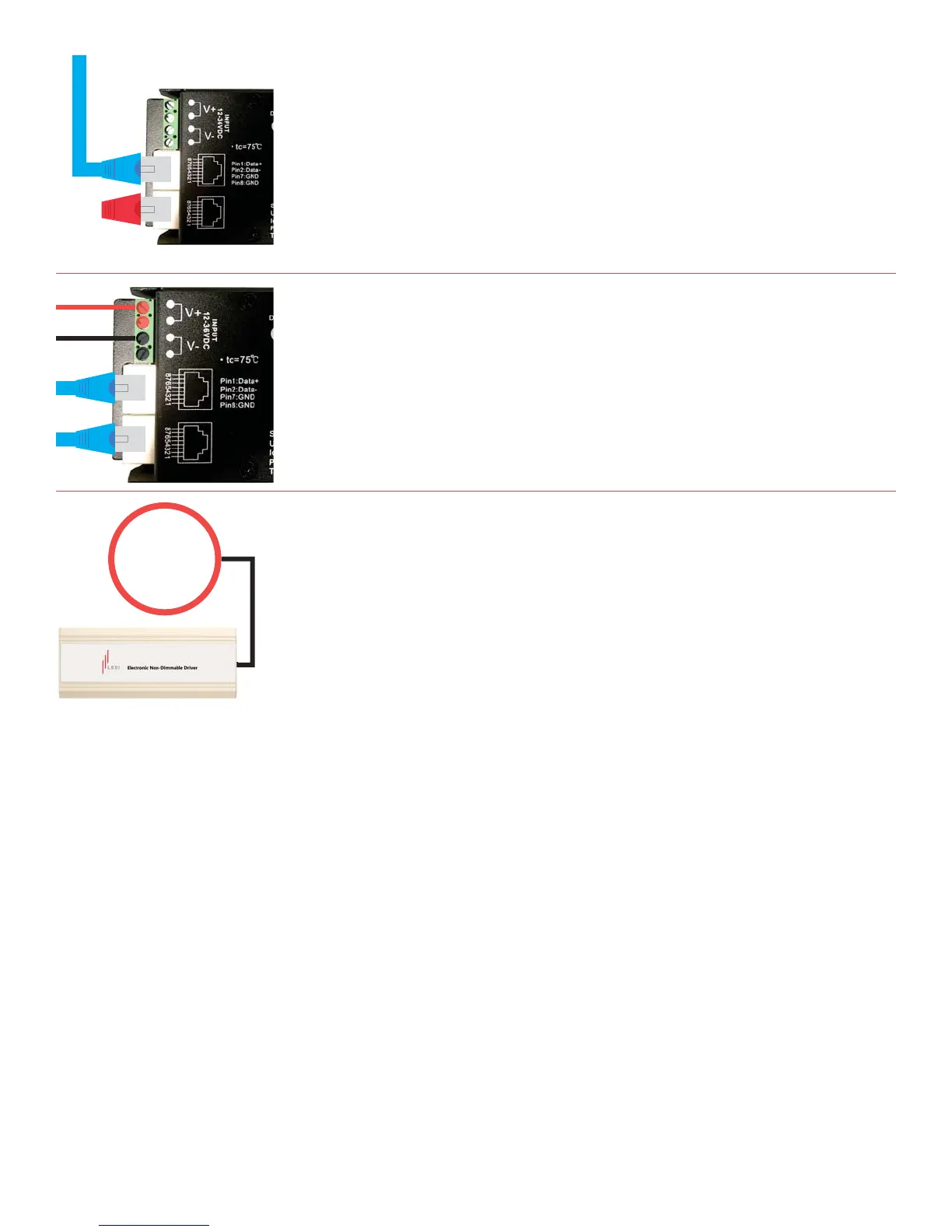

If installing 3 or more RGB DMX Decoders, an RGB DMX
Terminator is needed to terminate the signal. Connect the RGB
DMX Terminator to your last RGB DMX Decoder (opposite of
your RGB DMX Controller, which is considered the first) to the
OUTPUT Ethernet port.
Wire the line voltage ends of your 24V DC Electronic
Driver(s) to 120-277V AC power.
Wire the low voltage leads from your 24V DC Electronic Driver
to the 12-36V DC INPUT terminals. Use the “V+” terminal for
your positive wire, and the “V-” terminal for your negative
wire. Repeat this process for each RGB DMX Decoder you’ve
installed.
120-277V
AC Power
1. This product should be installed and serviced by a trained professional.
2. This product is NOT waterproof and is intended for an indoor and dry environment only.
3. This product should be placed in a well-ventilated area. Excess heat and poor airflow could damage the product.
4. Please ensure all output voltages comply with the working voltage of this product.
5. Please ensure the appropriately sized wire is used from the RGB DMX Decoder to other compatible components.
6. Please do not attempt any modifications or repairs on this product. If a replacement unit is needed, please contact LEDI at (832) 717-2710.
7. This product has a 5 year limited warranty from the purchase date.
