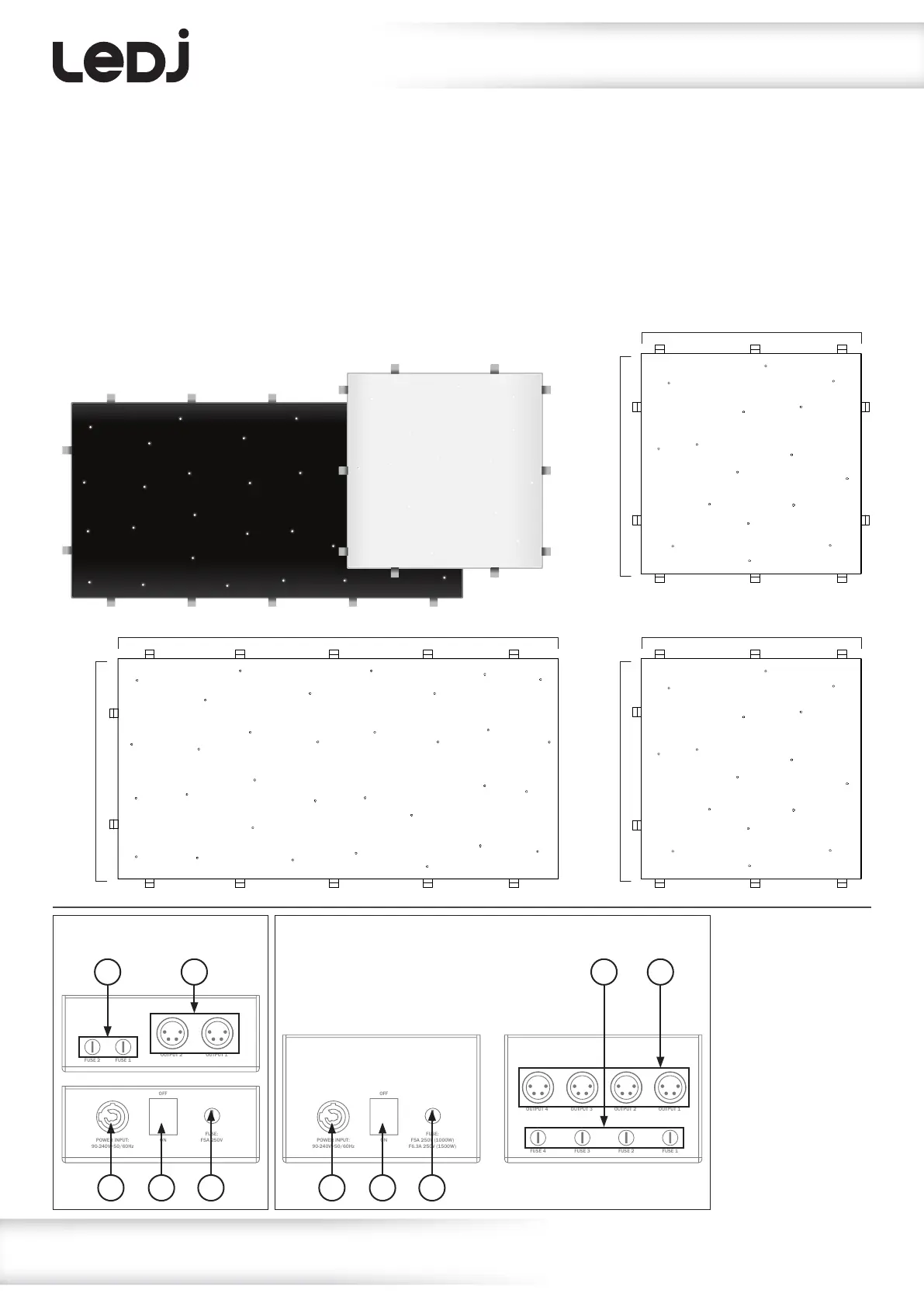

Product overview & technical specications
The LEDJ portable, starlit dance foors use crisp cool white or RGB LEDs inset into high gloss, interlocking panels.
Constructed using a rugged aluminium chassis, each panel is nished with a glossy, acrylic upper panel giving a
sprung feel while remaining fully supported. Each panel features 16 (2ft x 2ft) or 32 (2ft x 4ft) SMD white/RGB
LEDs with modes including full on and adjustable rate ash/twinkle. Ideal for use in venues for events such as
weddings, parties and corporate evenings. Scalable in size, the system uses a combination of 4 x 2ft and 2 x 2ft
panels nished with sloped aluminium edge trim.
• High gloss, interlocking panels
• Cool white or RGB LEDs
• Aluminium edge trim
• High quality, Meanwell SMPSU
• RF remote control with static and
adjustable rate ash and twinkle
Starlit Dance Floor
01 - 4-Pin outputs
02 - Output fuses
250V:
500W - F10A
750W - F15A
1000W - F10A
1500W - F15A
03 - On/off switch
04 - PowerCON input
05 - Input fuse
250V:
500W - F5A
750W - F5A
1000W - F5A
1500W - F6.3A
500W/750W Power Supply
1000W/1500W Power Supply
04 0403 0305 05
0101 0202
POWER INPUT:
90-240V~50/60Hz
ON
FUSE:
F5A 250V
FUSE 1FUSE 2
OFF
OUTPUT 1OUTPUT 2
POWER INPUT:
90-240V~50/60Hz
ON
FUSE:
F5A 250V (1000W)
F6.3A 250V (1500W)
OFF
FUSE 4 FUSE 3 FUSE 2 FUSE 1
OUTPUT 2 OUTPUT 1OUTPUT 4 OUTPUT 3
