Ledj LEDJ405 - Operating Instructions; Panel Locking Mechanism; Detailed Laying Instructions

www.prolight.co.uk Starlit Dance Floor User Manual
6

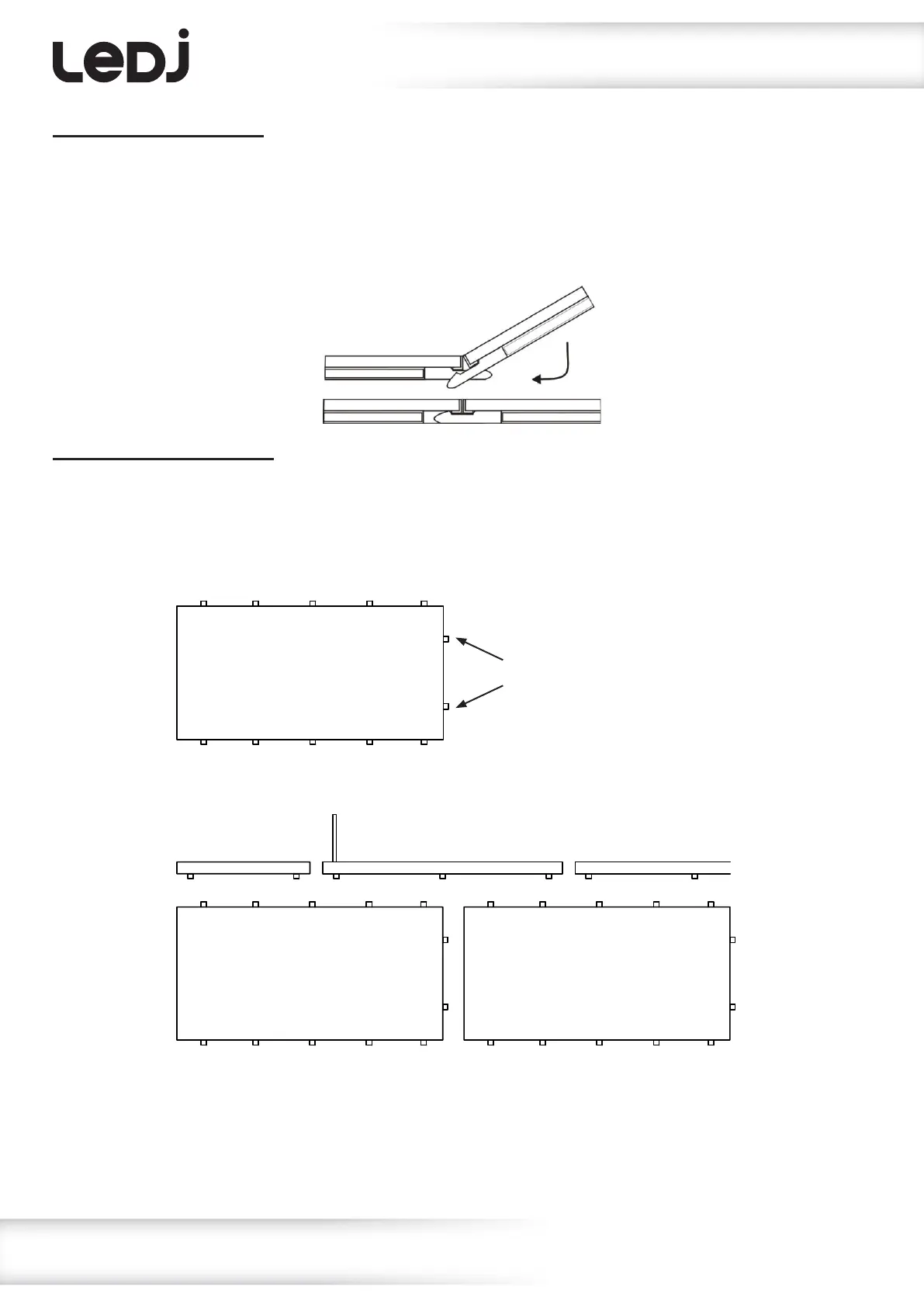

Panel locking mechanism:
The panels each lock together using a special locking mechanism. Lay the rst panel at on the oor in
the orientation shown below. Hold the second panel at an angle as shown in the diagram and push
towards the rst panel allowing the aluminium lugs to locate. When the two panels are fully touching
along their edges, lower the panel to the oor. If the panels are not square, or if the edges are not fully
touching the panel being tted will not lower. DO NOT FORCE THE PANELS DOWN! Simply adjust the
alignment until the panel will lower to the oor.
Detailed laying instructions:
Row 1:
Start at the top left hand corner position by placing a full panel (2ft x 4ft) with the 2 end lugs pointing
to the right. Please ensure you leave space to add the edge trim between the danceoor and any
immovable objects such as walls or staging.
Lay a second panel with the 2 end lugs also pointing to the right.
Continue to lay the row with as many full panels as required for the size of oor required, add onto the
end of this row a three sided half panel if required. Take great care to ensure the panels are aligned
ush along the length of the row to ensure the edging will be straight. After completing the rst row of
panels, t the edging to this row before continuing to lay the second row.
Operating instructions
First Panel
2 end lugs pointing to the right
First Panel Second Panel
Power Edge
