IMPORTANT - Fill the primer feed tray. View help video for loading primers into tray:
7

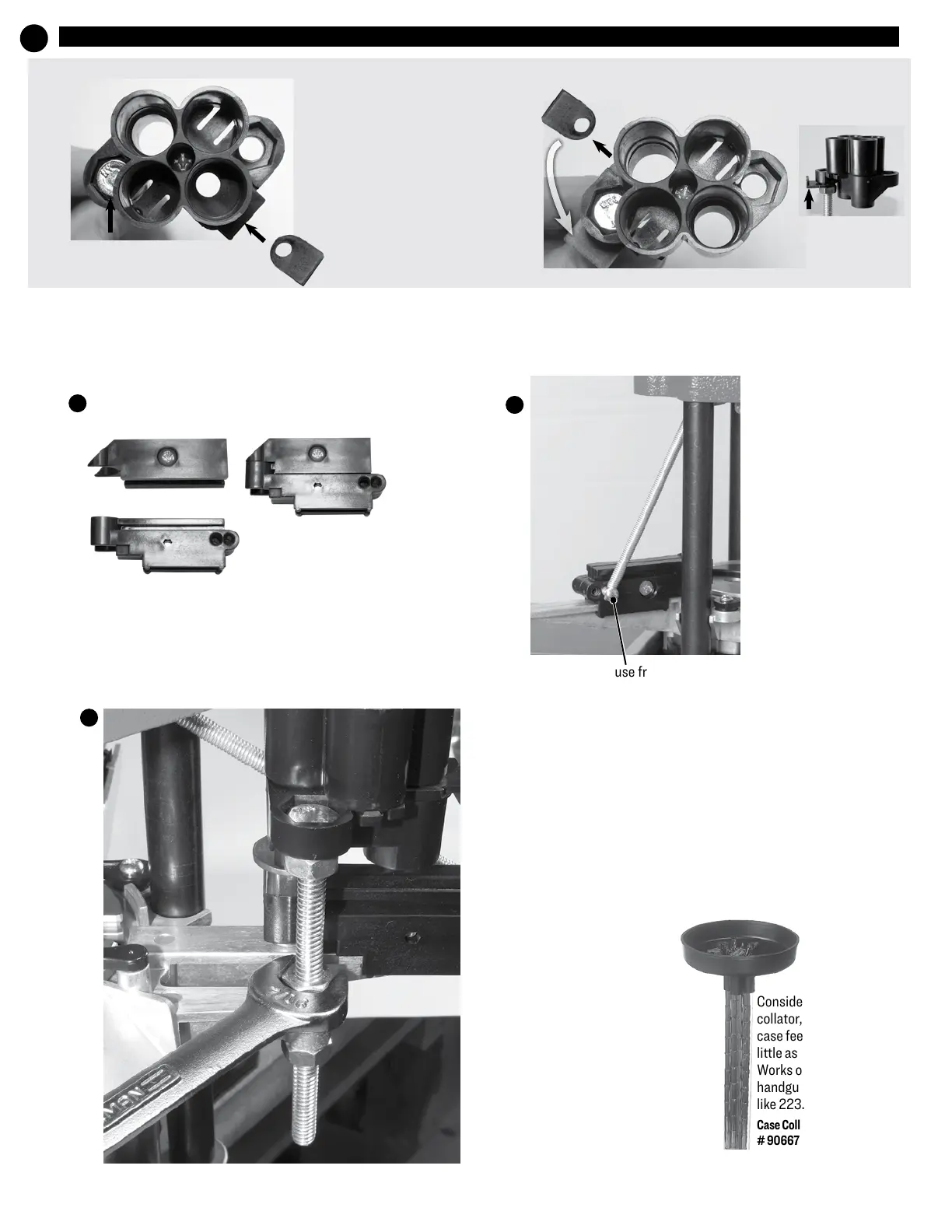

INSTALLING Universal Case Feeder
A
B
Confirm case feed spring
in attached to front hole
of case slider
Case slider blockCase slider block
RiserRiser
See chart on page 7. Some cases require riser
to be installed on top of case slider block.
Slide the RISER block on
top of CASE SLIDER BLOCK
until the front and back are
flush. Tighten Phillips screw
on riser block.
This accessory will greatly simplify progressive reloading placing a case every time the press is cycled. The case slider block is already on
your press. Longer cases will require you to attach the riser to the case slider block. All you need to do is install the feed plate configured
for the case that you will be loading.
Assembled as a SMALL feed plate
Bolt and nuts are adjacent to small
through hole and the small plug.
small small
holehole
small
plug
installed
large large
holehole
Assembled as a LARGE feed plate
small plug removed
storage spot for
small plug
Reference grid on top of page 8 for setup instructions
Install case feeder
use front hole
8
Continued, see page 6
C
See chart below. Install the
correctly configured feed
plate (large or small) keeping
the bottom of the case feed
plate a pennies thickness
above the case mouth. Slide a
case through feed plate. Place
penny on top of the case, slide
feed plate into carrier. Secure
the feed plate with a nut
above and below the carrier
slide rail. Tighten 7/16” nuts
under and above carrier.
Case Collator
# 90667
Consider the case
collator, fills all four
case feed tubes in as
little as 10 seconds.
Works on most
handgun and short rifle
like 223.
