Section 3
OPERATION
3-5
785 Motor Grader
ITEM NO. NAME TYPE FUNCTION
1 Air Conditioning Control Provide control of the air conditioning unit.
Panel Also contains the windshield washer reservoir.
See Figure 3-2 for detailed breakdown.
2 Gauges Panel Contains seen gauges that monitor machine
operation. See Figure 3-3 for detailed breakdown.
3 Warning Indicator and Contains warning indicators and light switches.
Light Switch Panel See Figure 3-4 for detailed breakdown.
4 Steering and Control Contains all grader control levers and the
Lever Group steering wheel. See Figure 3-5 for detailed
breakdown.
5 Throttle, Brake, Contains driving controls and switches.
Transmission, Stop See Figure 3-6 for detailed breakdown.
Controls and Main Switch
Panel
6 Foot Pedals Pedals Pressing the left pedal down applies the service
brake applies the service brake and declutches
the transmission. Pressing the right pedal
controls the throttle.
7 Left Door Release Lever Lever Holds left door open.
8 Dash Tilt Lever Lever Position dash for most comfortable operator
position.
9 Front Windshield Latch Lever Allows front windshield to be opened.
10 Right Door Release Lever Lever Holds right door open.
11 Seat Operator's seat.

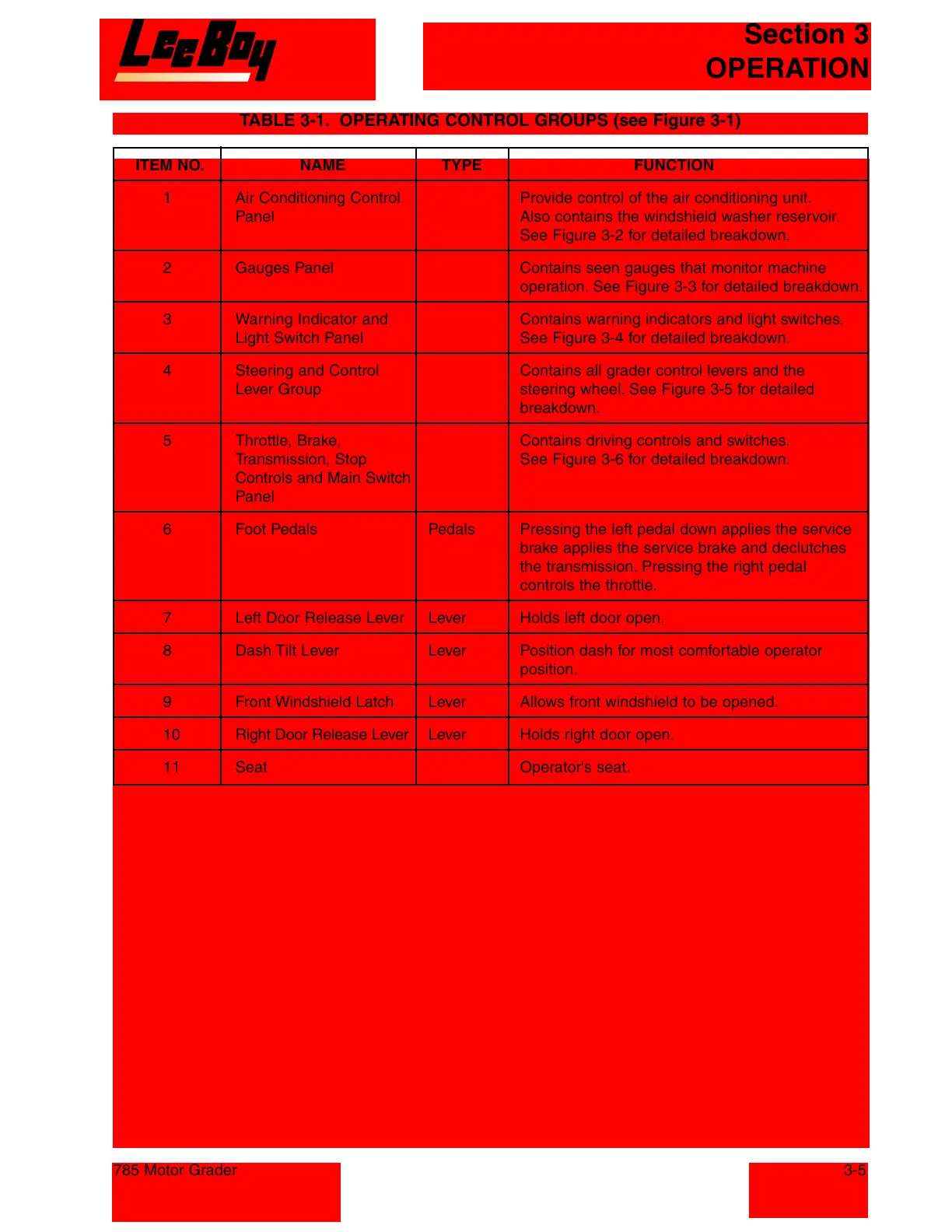

TABLE 3-1. OPERATING CONTROL GROUPS (see Figure 3-1)
