Section 3
OPERATION
3-13
785 Motor Grader
ITEM NO. NAME TYPE FUNCTION
1 Left Blade Lift Lever Lever Lifts left Blade when pulled. Lowers left Blade
when pushed. Sets to float position when
pushed hard.
2 Scarifer Lever Lever Lifts Scarifer when pulled. Lowers Scarifer
when pushed.
3 Moldboard Slide Lever Lever Slides Moldboard left or right, 5 ft. total.
4 Blade Tilt Lever Lever Tilts Blade to rear when pulled. Tilts Blade
forward when pushed.
5 Circle Turn Lever Lever Rotates Circle clockwise when pulled. Rotates
Circle counterclockwise when pushed.
6 Horn Button Push Sounds Horn when pushed.
button
switch
7 Circle Shift Lever Lever Shifts Circle right when pulled. Shifts Circle left
when pushed.
8 Articulation Lever Lever Articulates Grader up to 40°.
9 Leaning Wheel Lever Lever Leans Wheel right when pulled. Leans Wheel left
when pushed.
10 Auxiliary Lever Lever Not Used
11 Right Blade Lift Lever Lever Lifts right Blade when pulled. Lowers right Blade
when pushed. Sets to float position when
pushed hard.
12 Steering Wheel Wheel Used to steer machine.

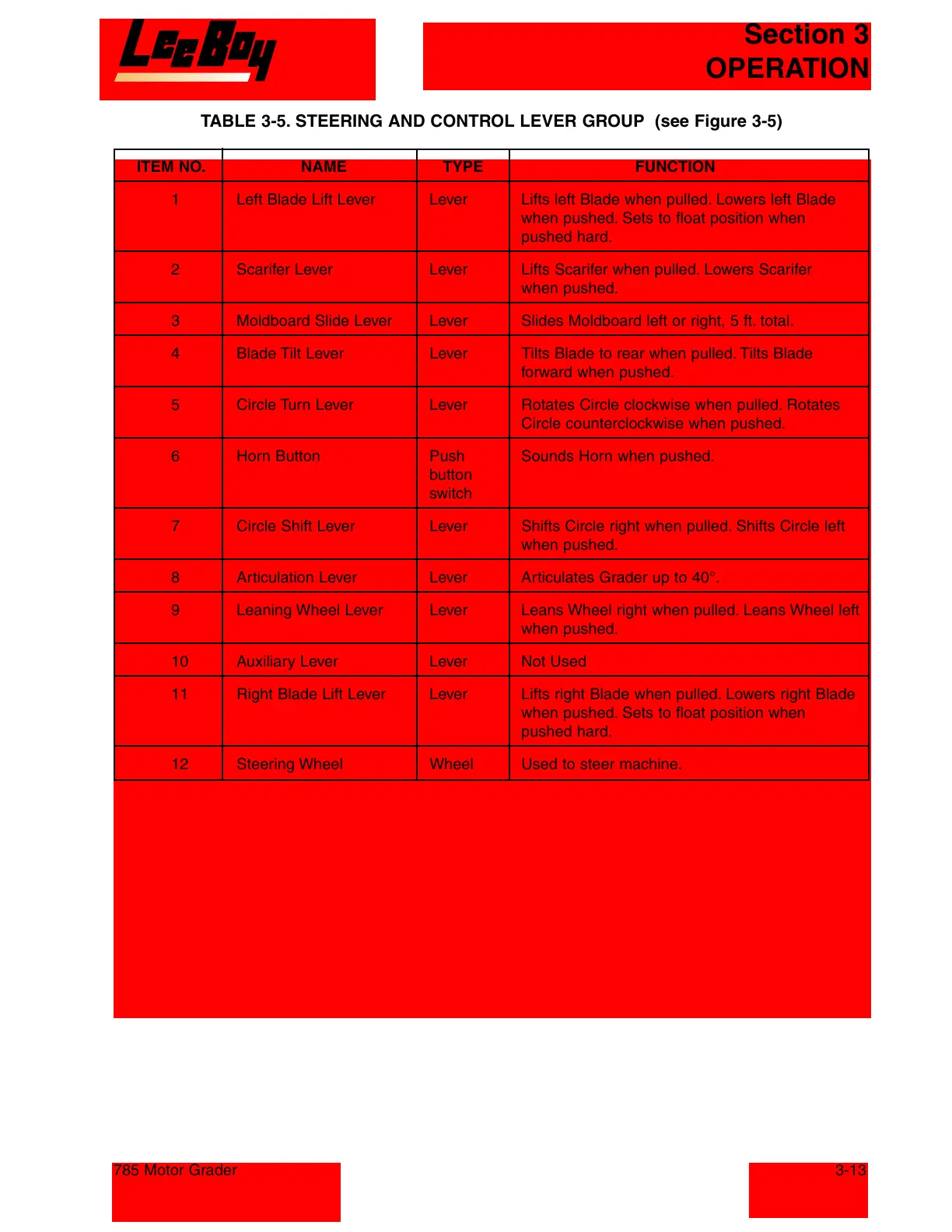

TABLE 3-5. STEERING AND CONTROL LEVER GROUP (see Figure 3-5)
