Section 4
MAINTENANCE
4-31
785 Motor Grader

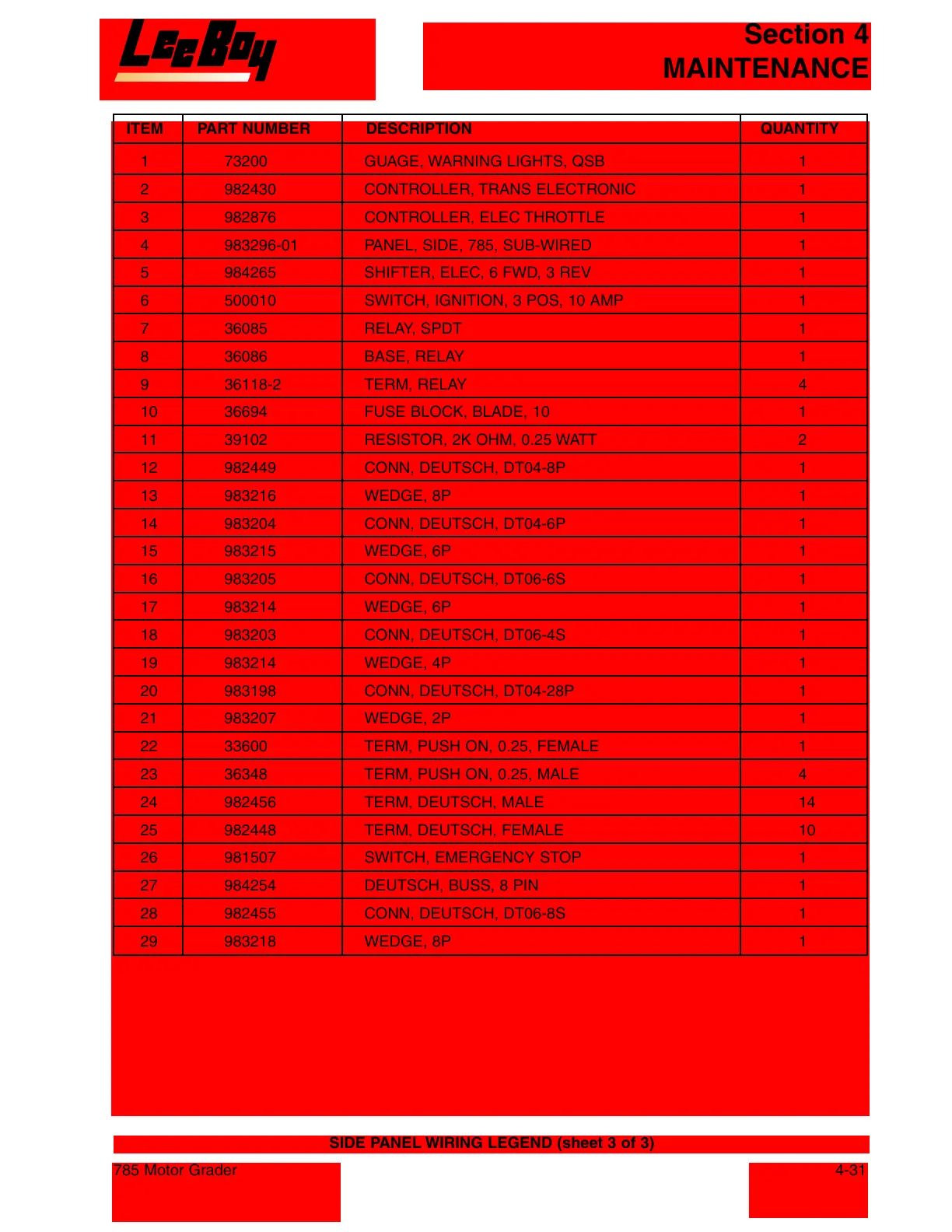

SIDE PANEL WIRING LEGEND (sheet 3 of 3)
ITEM PART NUMBER DESCRIPTION QUANTITY
1 73200 GUAGE, WARNING LIGHTS, QSB 1
2 982430 CONTROLLER, TRANS ELECTRONIC 1
3 982876 CONTROLLER, ELEC THROTTLE 1
4 983296-01 PANEL, SIDE, 785, SUB-WIRED 1
5 984265 SHIFTER, ELEC, 6 FWD, 3 REV 1
6 500010 SWITCH, IGNITION, 3 POS, 10 AMP 1
7 36085 RELAY, SPDT 1
8 36086 BASE, RELAY 1
9 36118-2 TERM, RELAY 4
10 36694 FUSE BLOCK, BLADE, 10 1
11 39102 RESISTOR, 2K OHM, 0.25 WATT 2
12 982449 CONN, DEUTSCH, DT04-8P 1
13 983216 WEDGE, 8P 1
14 983204 CONN, DEUTSCH, DT04-6P 1
15 983215 WEDGE, 6P 1
16 983205 CONN, DEUTSCH, DT06-6S 1
17 983214 WEDGE, 6P 1
18 983203 CONN, DEUTSCH, DT06-4S 1
19 983214 WEDGE, 4P 1
20 983198 CONN, DEUTSCH, DT04-28P 1
21 983207 WEDGE, 2P 1
22 33600 TERM, PUSH ON, 0.25, FEMALE 1
23 36348 TERM, PUSH ON, 0.25, MALE 4
24 982456 TERM, DEUTSCH, MALE 14
25 982448 TERM, DEUTSCH, FEMALE 10
26 981507 SWITCH, EMERGENCY STOP 1
27 984254 DEUTSCH, BUSS, 8 PIN 1
28 982455 CONN, DEUTSCH, DT06-8S 1
29 983218 WEDGE, 8P 1
