Section 4
MAINTENANCE
4-33
785 Motor Grader

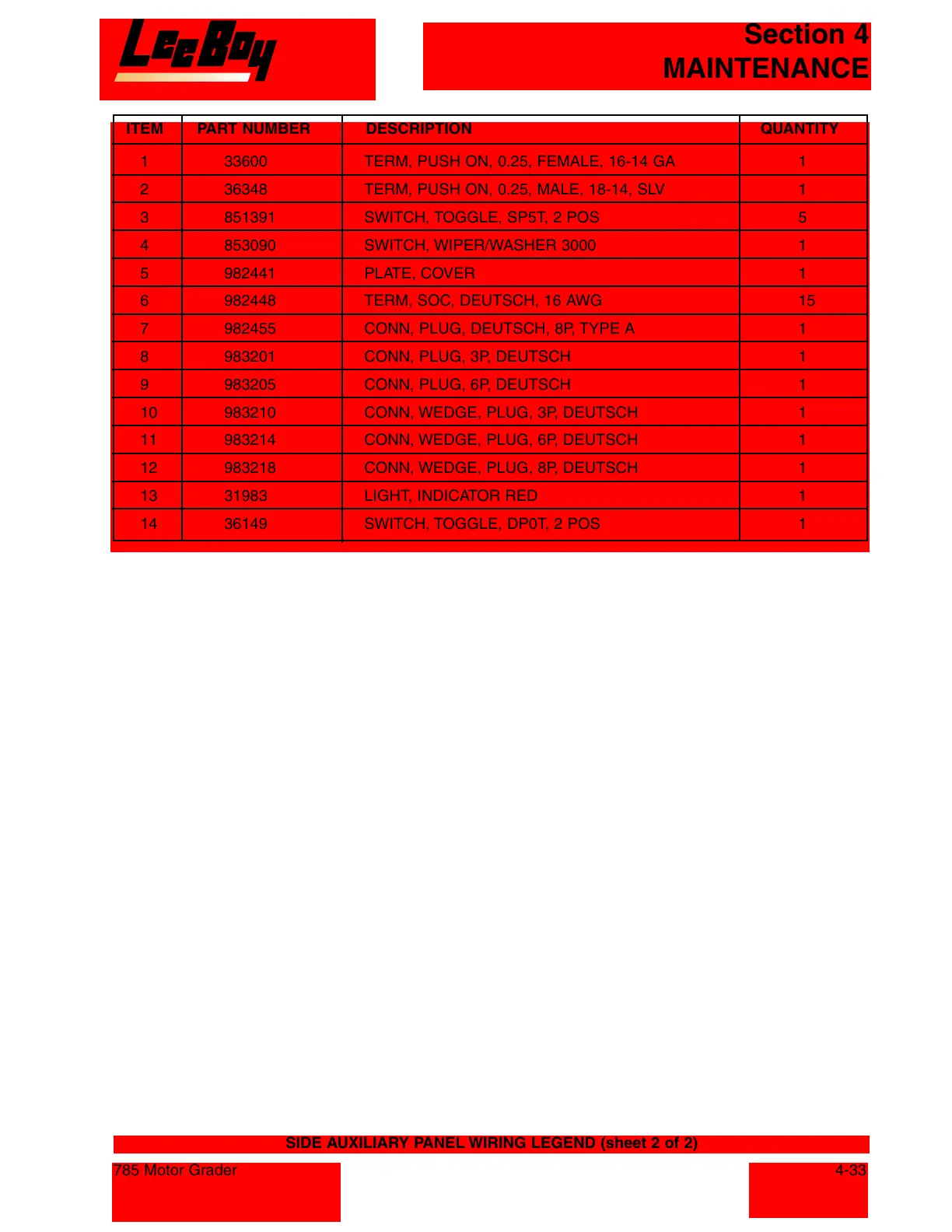

SIDE AUXILIARY PANEL WIRING LEGEND (sheet 2 of 2)
ITEM PART NUMBER DESCRIPTION QUANTITY
1 33600 TERM, PUSH ON, 0.25, FEMALE, 16-14 GA 1
2 36348 TERM, PUSH ON, 0.25, MALE, 18-14, SLV 1
3 851391 SWITCH, TOGGLE, SP5T, 2 POS 5
4 853090 SWITCH, WIPER/WASHER 3000 1
5 982441 PLATE, COVER 1
6 982448 TERM, SOC, DEUTSCH, 16 AWG 15
7 982455 CONN, PLUG, DEUTSCH, 8P, TYPE A 1
8 983201 CONN, PLUG, 3P, DEUTSCH 1
9 983205 CONN, PLUG, 6P, DEUTSCH 1
10 983210 CONN, WEDGE, PLUG, 3P, DEUTSCH 1
11 983214 CONN, WEDGE, PLUG, 6P, DEUTSCH 1
12 983218 CONN, WEDGE, PLUG, 8P, DEUTSCH 1
13 31983 LIGHT, INDICATOR RED 1
14 36149 SWITCH, TOGGLE, DP0T, 2 POS 1
