Section 4
MAINTENANCE
4-51
785 Motor Grader

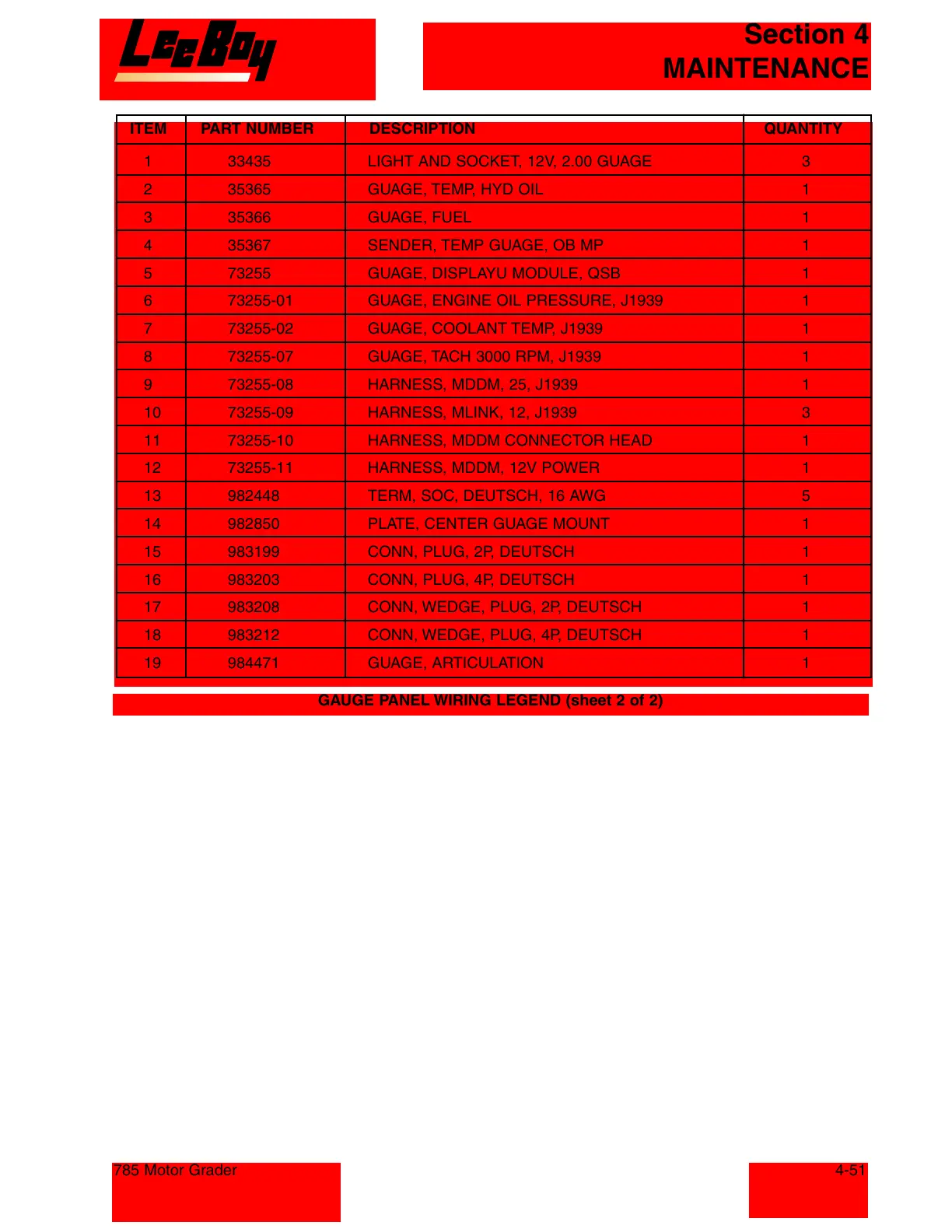

GAUGE PANEL WIRING LEGEND (sheet 2 of 2)
ITEM PART NUMBER DESCRIPTION QUANTITY
1 33435 LIGHT AND SOCKET, 12V, 2.00 GUAGE 3
2 35365 GUAGE, TEMP, HYD OIL 1
3 35366 GUAGE, FUEL 1
4 35367 SENDER, TEMP GUAGE, OB MP 1
5 73255 GUAGE, DISPLAYU MODULE, QSB 1
6 73255-01 GUAGE, ENGINE OIL PRESSURE, J1939 1
7 73255-02 GUAGE, COOLANT TEMP, J1939 1
8 73255-07 GUAGE, TACH 3000 RPM, J1939 1
9 73255-08 HARNESS, MDDM, 25, J1939 1
10 73255-09 HARNESS, MLINK, 12, J1939 3
11 73255-10 HARNESS, MDDM CONNECTOR HEAD 1
12 73255-11 HARNESS, MDDM, 12V POWER 1
13 982448 TERM, SOC, DEUTSCH, 16 AWG 5
14 982850 PLATE, CENTER GUAGE MOUNT 1
15 983199 CONN, PLUG, 2P, DEUTSCH 1
16 983203 CONN, PLUG, 4P, DEUTSCH 1
17 983208 CONN, WEDGE, PLUG, 2P, DEUTSCH 1
18 983212 CONN, WEDGE, PLUG, 4P, DEUTSCH 1
19 984471 GUAGE, ARTICULATION 1
