6

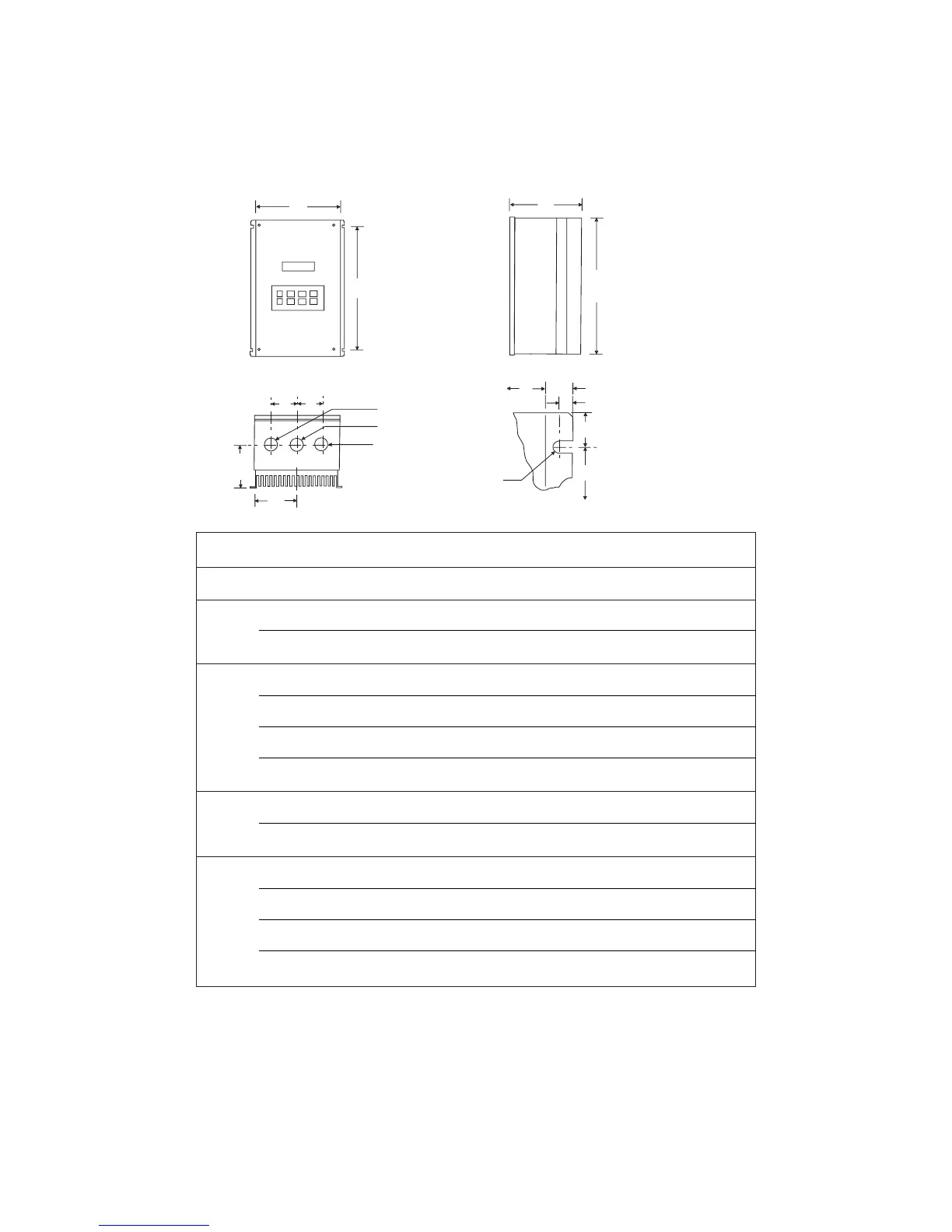

4.2 WASHGUARD NEMA 4/12, 12, & 4X
HP INPUT CATALOG
(kW) VOLTAGE NUMBER H W D N P Q R S
0.25 240/120 174996
7.88 6.12 3.63 3.06 2.00 1.37 5.88 0.88
(0.18) 174519**
0.5 240/120 174998
7.88 7.86 3.75 4.80 2.10 1.37 5.88 0.88
(0.37) 174520**
240/200 174935
7.88 6.12 4.35 3.06 2.70 1.37 5.88 0.88
174527**
1 240/120 174999
7.88 7.86 3.75 4.80 3.25 1.37 5.88 0.88
(0.75) 174521**
240/200 174936
7.88 6.12 4.35 3.06 2.70 1.37 5.88 0.88
174528**
480/400 174939
7.88 6.12 4.35 3.06 2.70 1.37 5.88 0.88
174532**
590 174943
7.88 6.12 4.35 3.06 2.70 1.37 5.88 0.88
174536**
1.5 240/120 174515
7.88 7.86 4.90 4.80 3.25 1.37 5.88 0.88
(1.1) 174517**
240/200 174482
7.88 6.12 5.25 3.06 3.60 1.37 5.88 0.88
174529**
2 240 174475
7.88 7.86 4.90 4.80 3.25 1.37 5.88 0.88
(1.5) 174525**
240/200 174937
7.88 7.86 4.90 4.80 3.25 1.37 5.88 0.88
174530**
480/400 174940
7.88 7.86 4.90 4.80 3.25 1.37 5.88 0.88
174533**
590 174944
7.88 7.86 4.90 4.80 3.25 1.37 5.88 0.88
174537**
* = NEMA 12 Only
** = NEMA 4X
Others are NEMA 4/12
W
R
D
H
Q
Q
P
N
Conduit Holes:
S Dia.
0.88" Dia.
S Dia.
T
Dia. Slot
Mounting Tab Detail
W
U
V
1.00"
R
IF W ≤ 7.86"
T = 0.20"
U = 0.34"
V = 0.19"
IF W ≤ 10.26"
T = 0.28"
U = 0.44"
V = 0.24"
