lefeirc RCbro SPARROW 2 User Manual

RCbro
®
SPARROW 2 User-Manual
LefeiRC www.lefeirc.com/
*If you use a PWM receiver, it is recommended to select the 3-switch as a mode channel,
otherwise it will not switch to three flight mode!

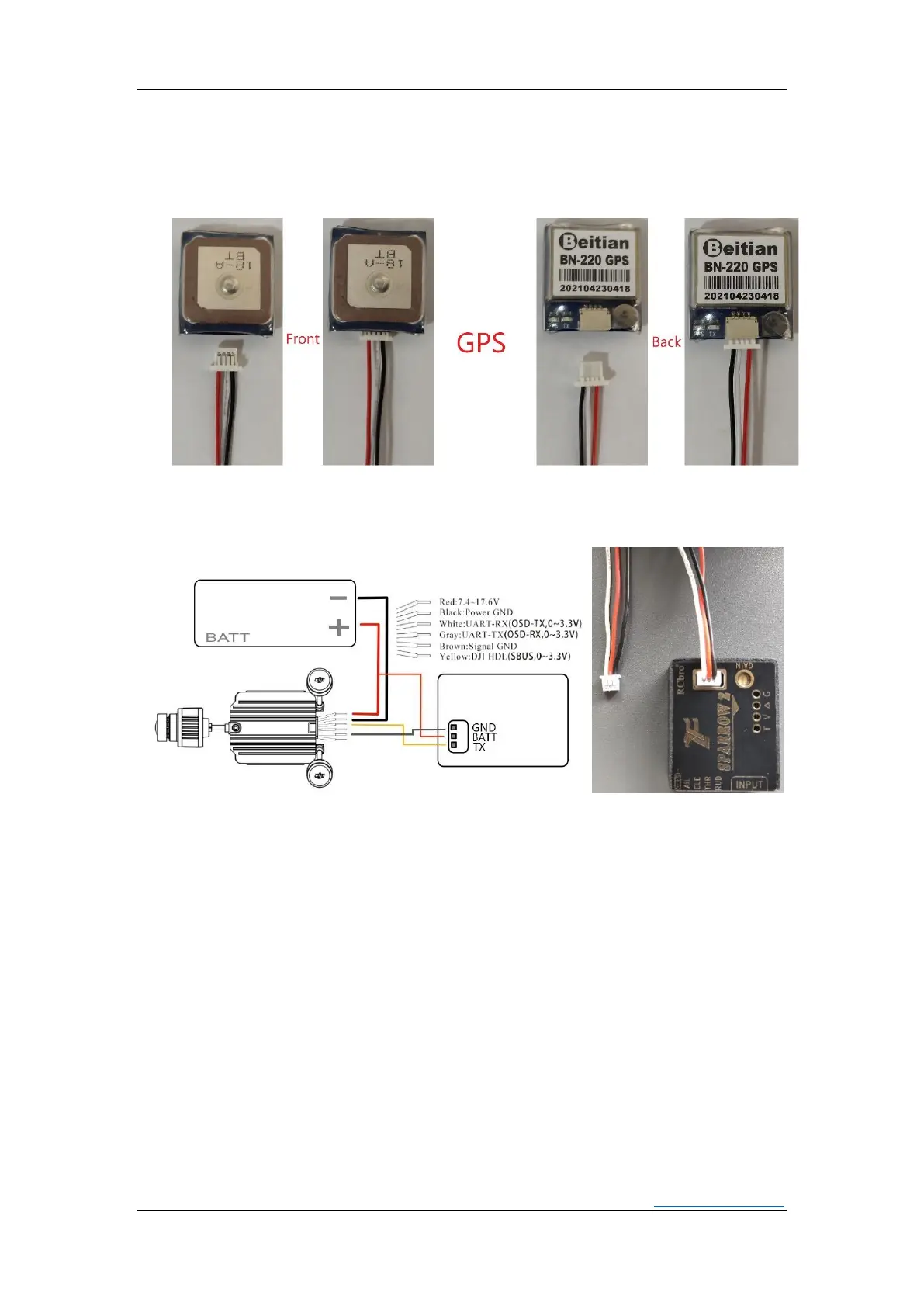

➢ GPS
*When installing, please bring the ‘Front’ towards the sky and facilitate positioning!
➢ DJI
* DJI interface also supports voltage detection.
* DJI interface voltage detection ranges from 2~6s, pay attention to the DJI supply
voltage (7.4-17.6V) when wiring, so as not to burn equipment!
➢ DJI-OSD
The display includes: Latitude/Latitude, Satellite, Height, GroundSpeed, ClimbRate,
Distance, Voltage (including single battery voltage),Attitude information, FlightMode,
RSSI(SBUS), Orientation-pointing.
* To display a single voltage, you need to connect the voltage detection line to the DJI
interface before the FC is powered on!
